Light switch unit (684): Location

LIGHT SWITCH UNIT (684)

Light switch unit (684), manual headlamp levelling

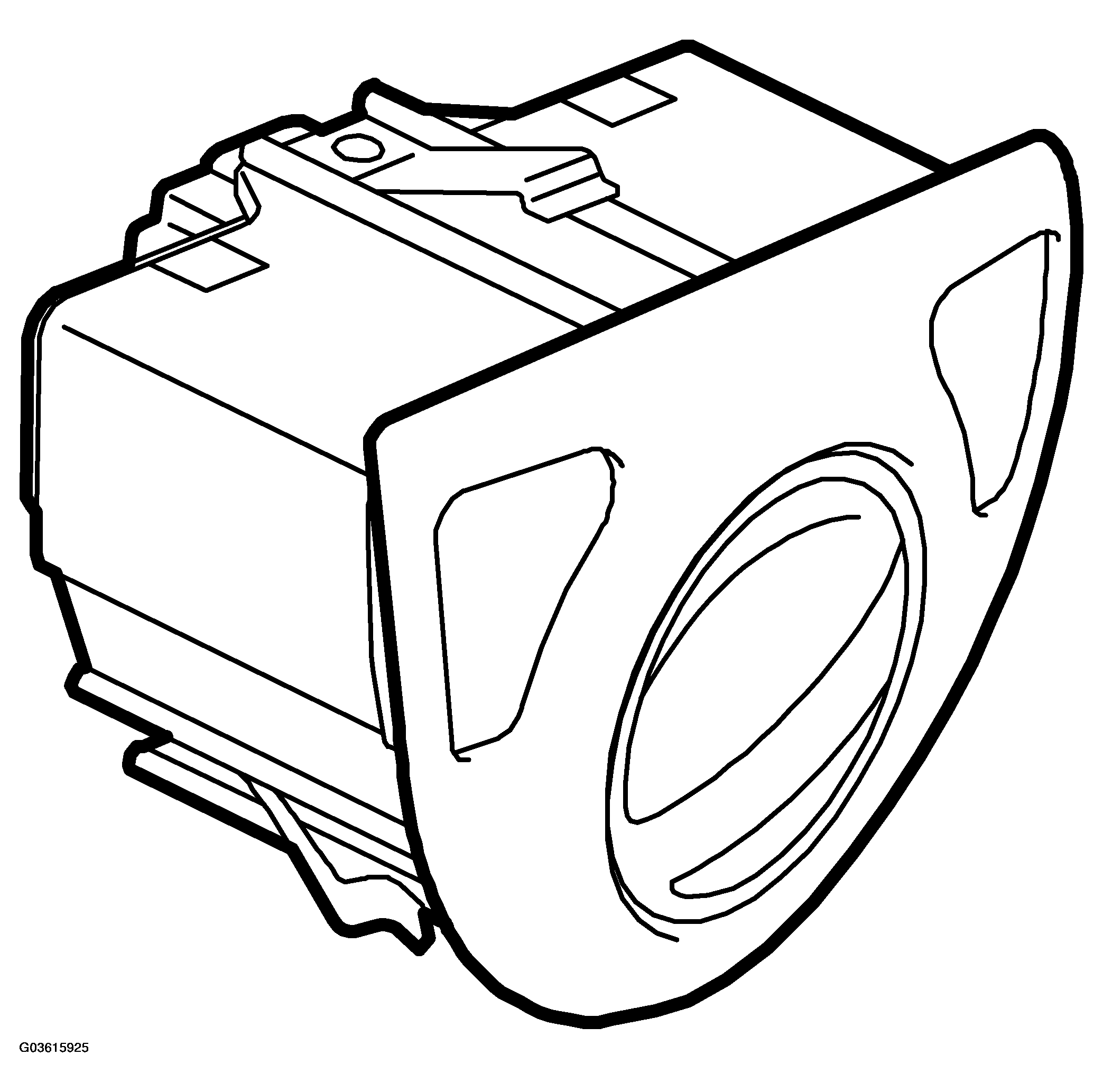

Fig 1: Identifying Light Switch Unit (684), Manual Headlamp Levelling

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Light switch unit (684), automatic headlamp levelling (AHL)

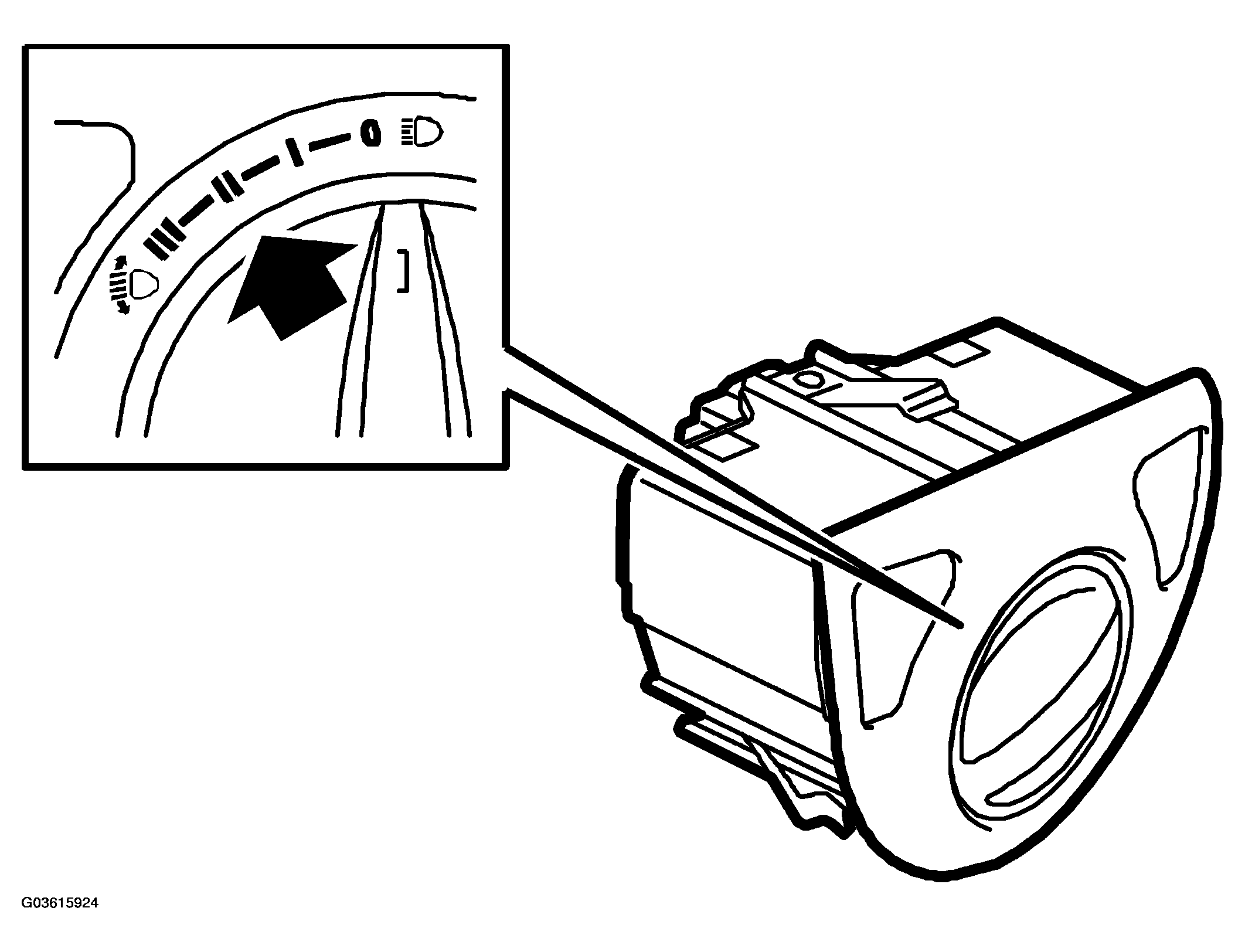

Fig 2: Identifying Light Switch Unit (684), Automatic Headlamp Levelling (AHL)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The light switch unit contains:

• LIGHT SWITCH, (10)
• HEADLAMP LEVELLING SWITCH (282)
• FOG LIGHT SWITCH (88)
• REAR FOG LIGHTS SWITCH (161)
