Light cluster unit, rear wing (418RL/RR): Connection

DESCRIPTION CHART

Pin No.	Signal type	Description
1	Power supply, B+	Light cluster power supply for parking light, from REC pin 12 (R-D) to 418 RL and from pin 10 (R-D) to 418RR
2	Power supply, B+	Light cluster power supply for brake/parking lights, from REC pin 2 (R-D) to 418RL and from pin 4 (T-D) to 418RR
3	Ground	Light cluster ground

Direction indicator bulbs

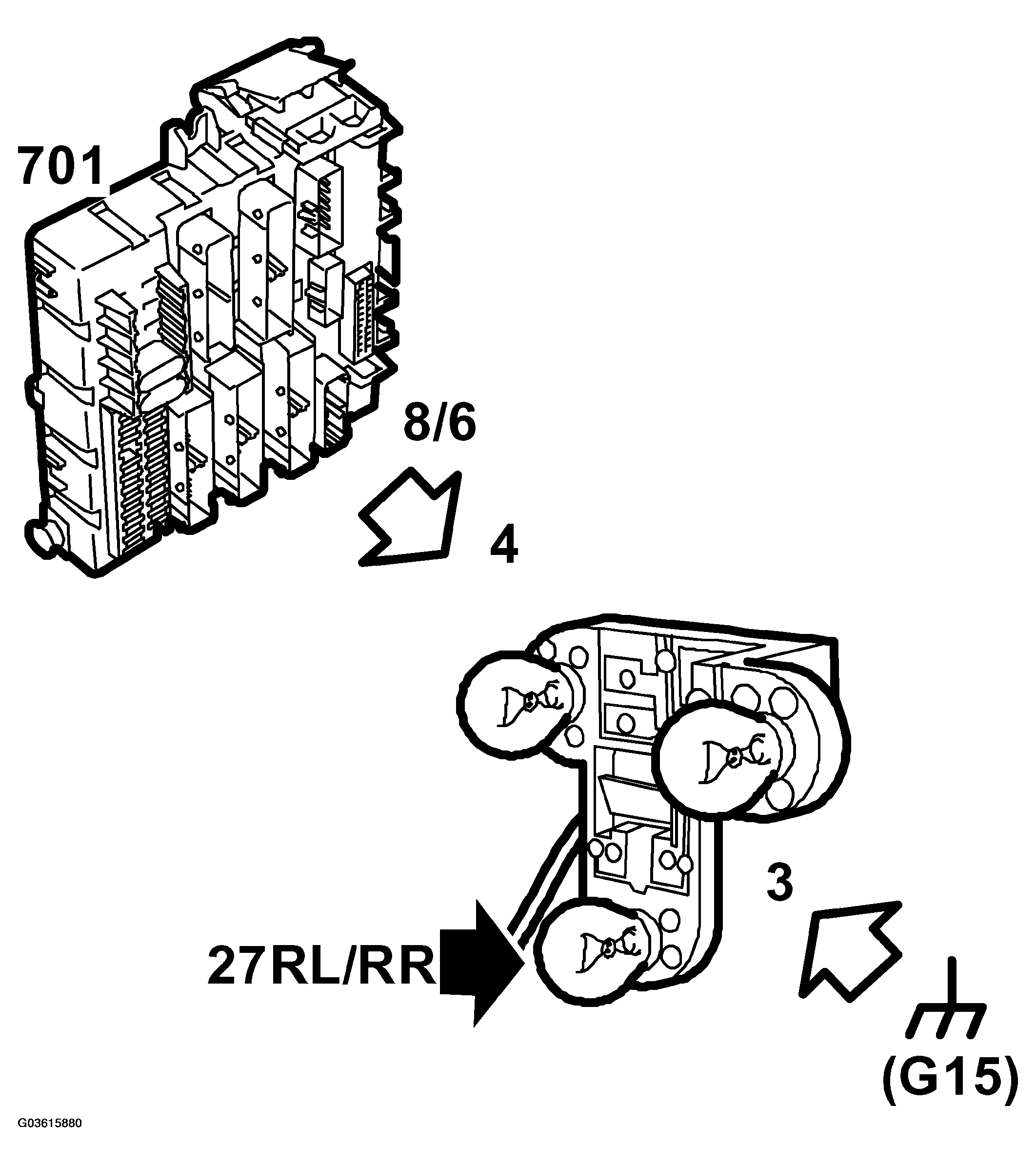

Fig 1: Identifying Direction Indicator Bulbs

G03615880

Courtesy of SAAB-SCANIA OF AMERICA, INC.

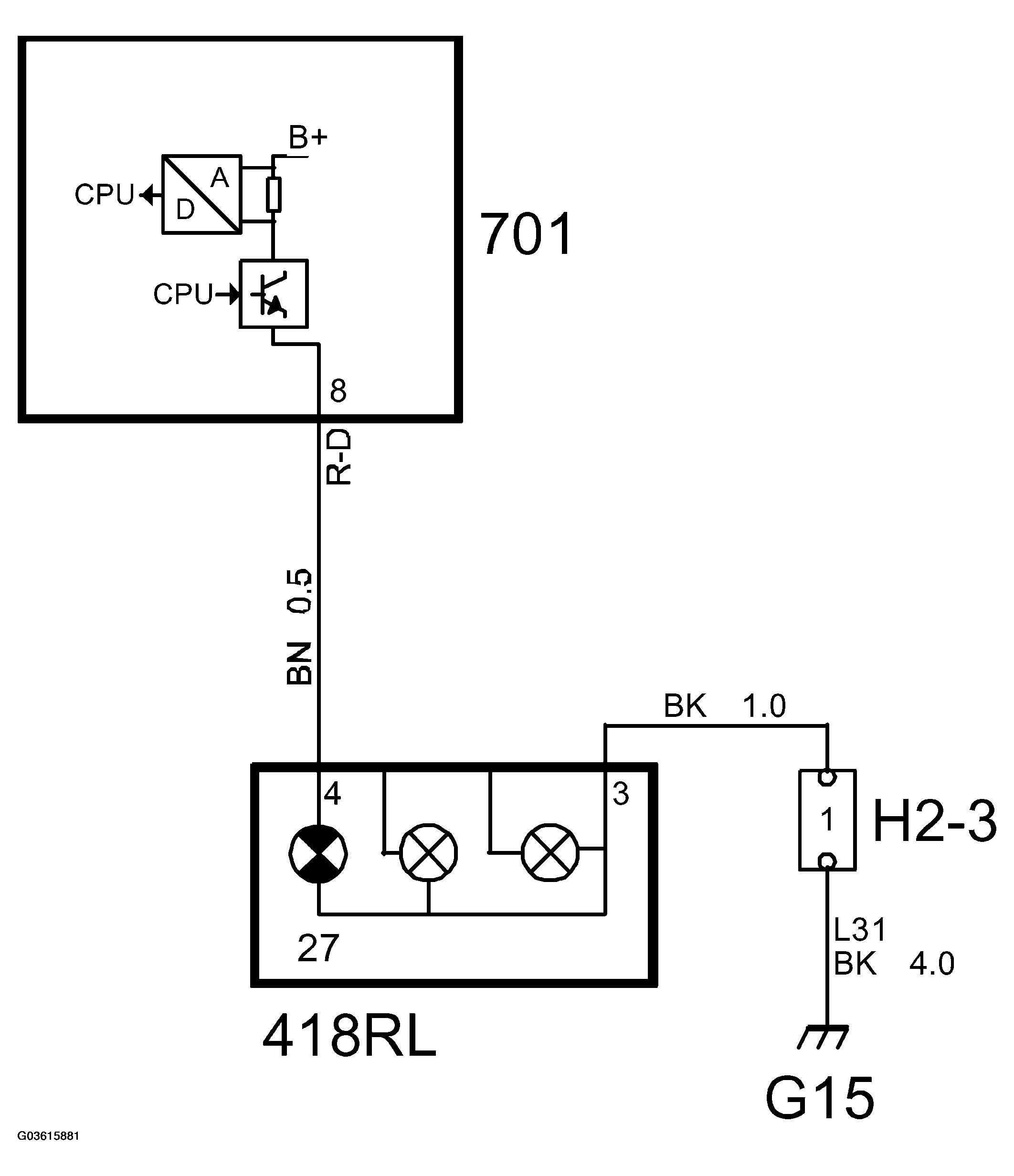

Fig 2: Direction Indicator Bulbs Circuit Diagram (1 Of 2)

G03615881

Courtesy of SAAB-SCANIA OF AMERICA, INC.

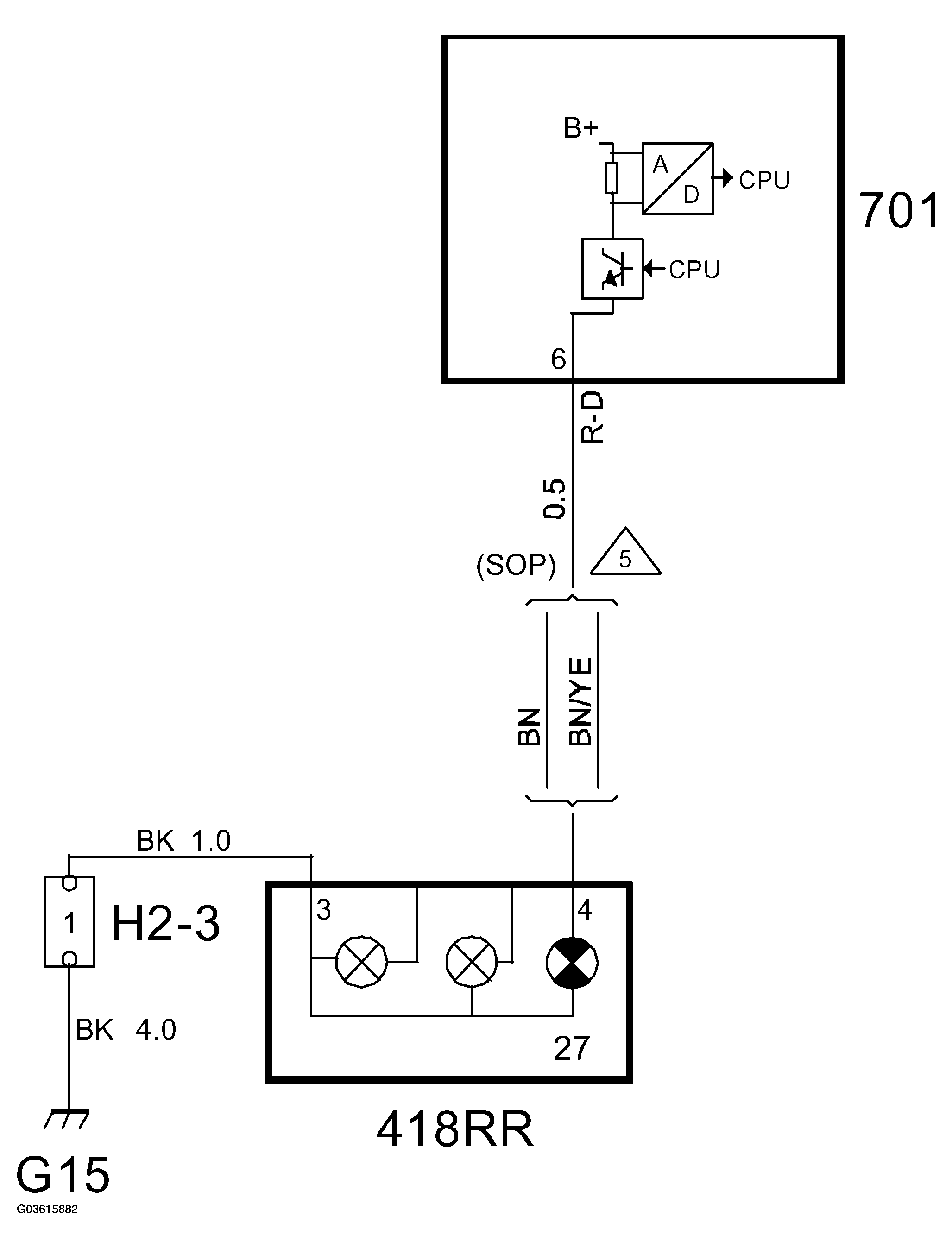

Fig 3: Direction Indicator Bulbs Circuit Diagram (2 Of 2)

G03615882

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Rear left direction indicator bulb (27RL)
Rear right direction indicator bulb (27RR)

Brake and parking lights

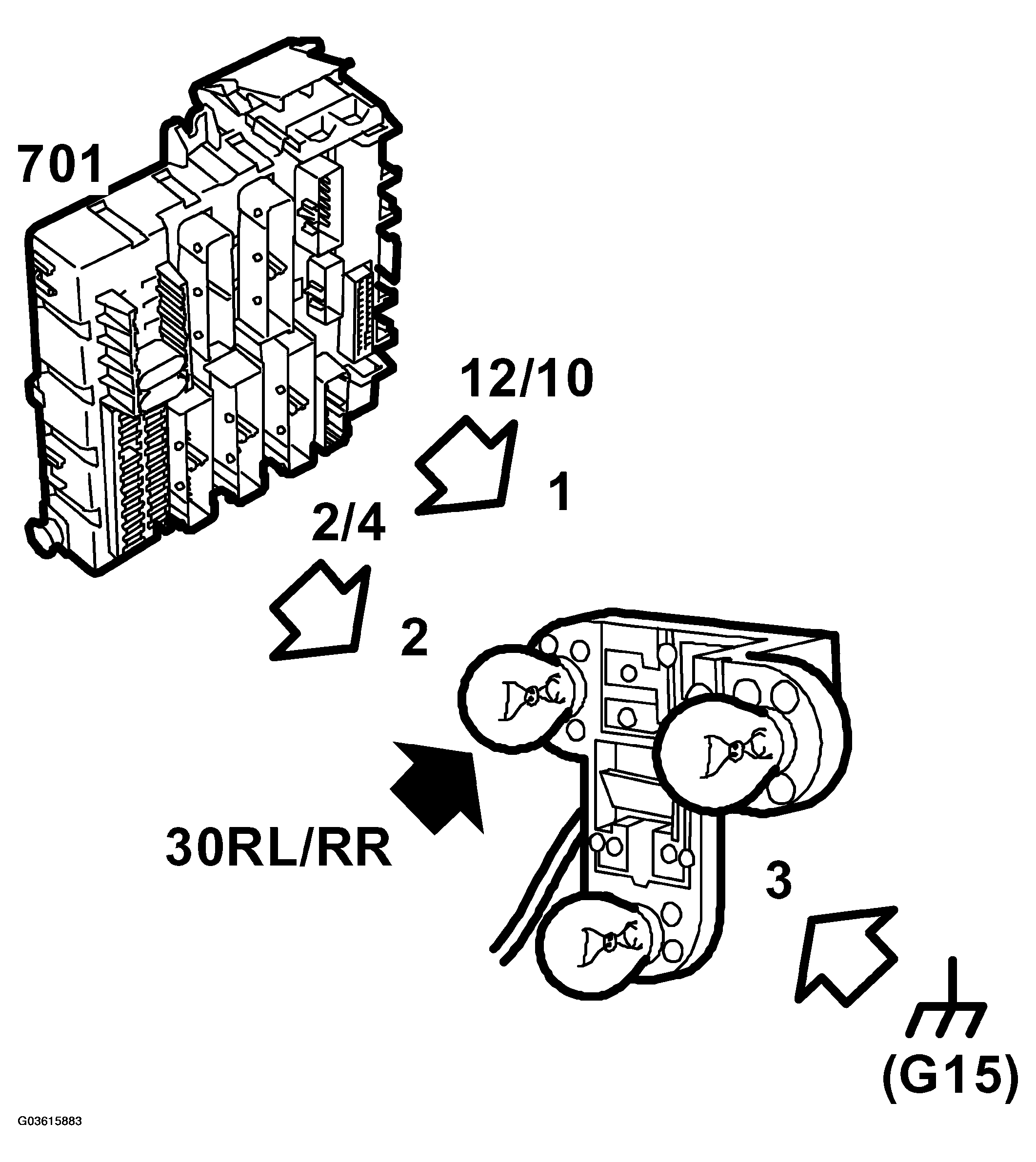

Fig 4: Identifying Brake And Parking Lights

G03615883

Courtesy of SAAB-SCANIA OF AMERICA, INC.

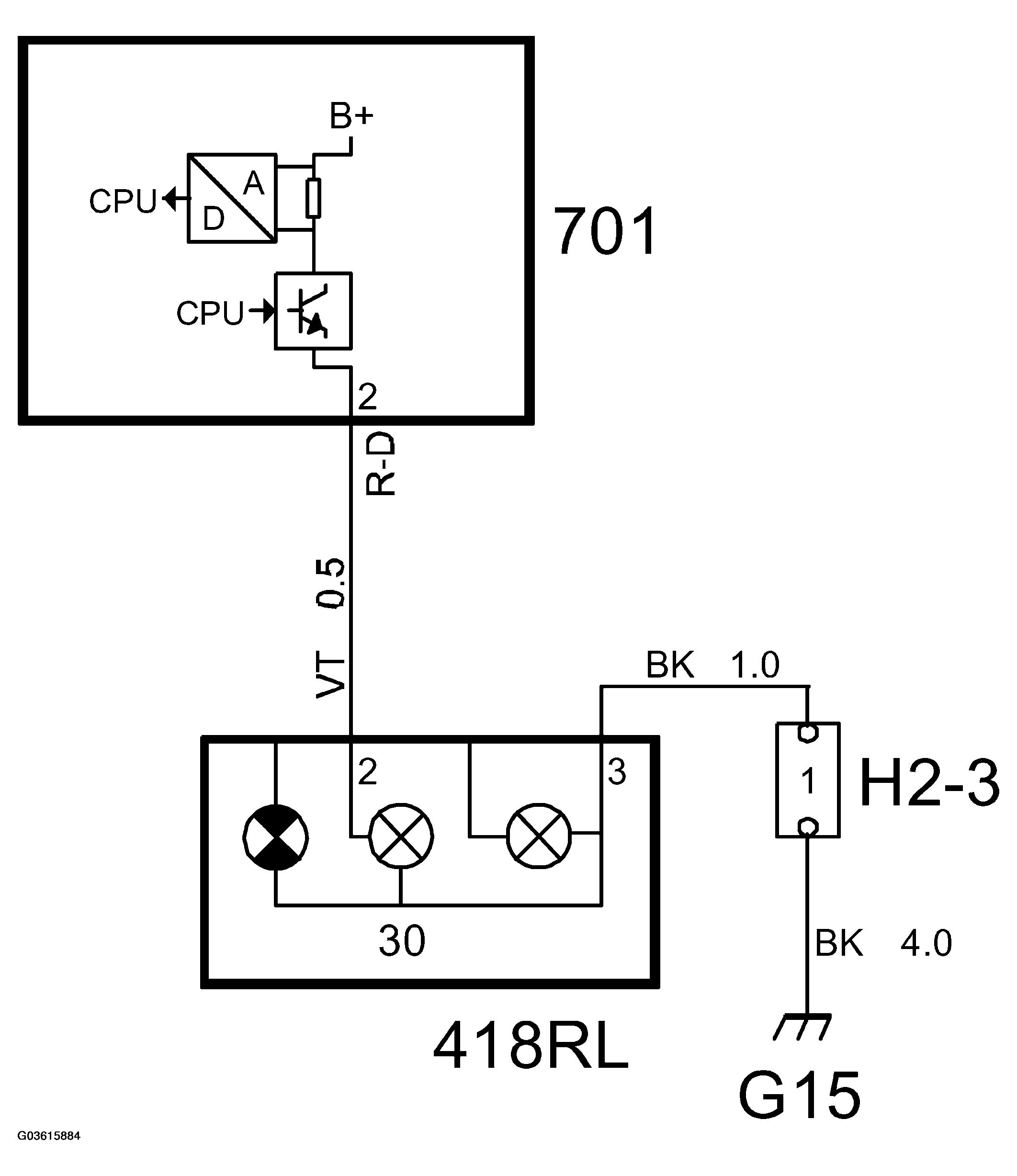

Fig 5: Brake And Parking Lights Circuit Diagram

G03615884

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Left brake light bulb (30RL,)
Right brake light bulb (30RR)

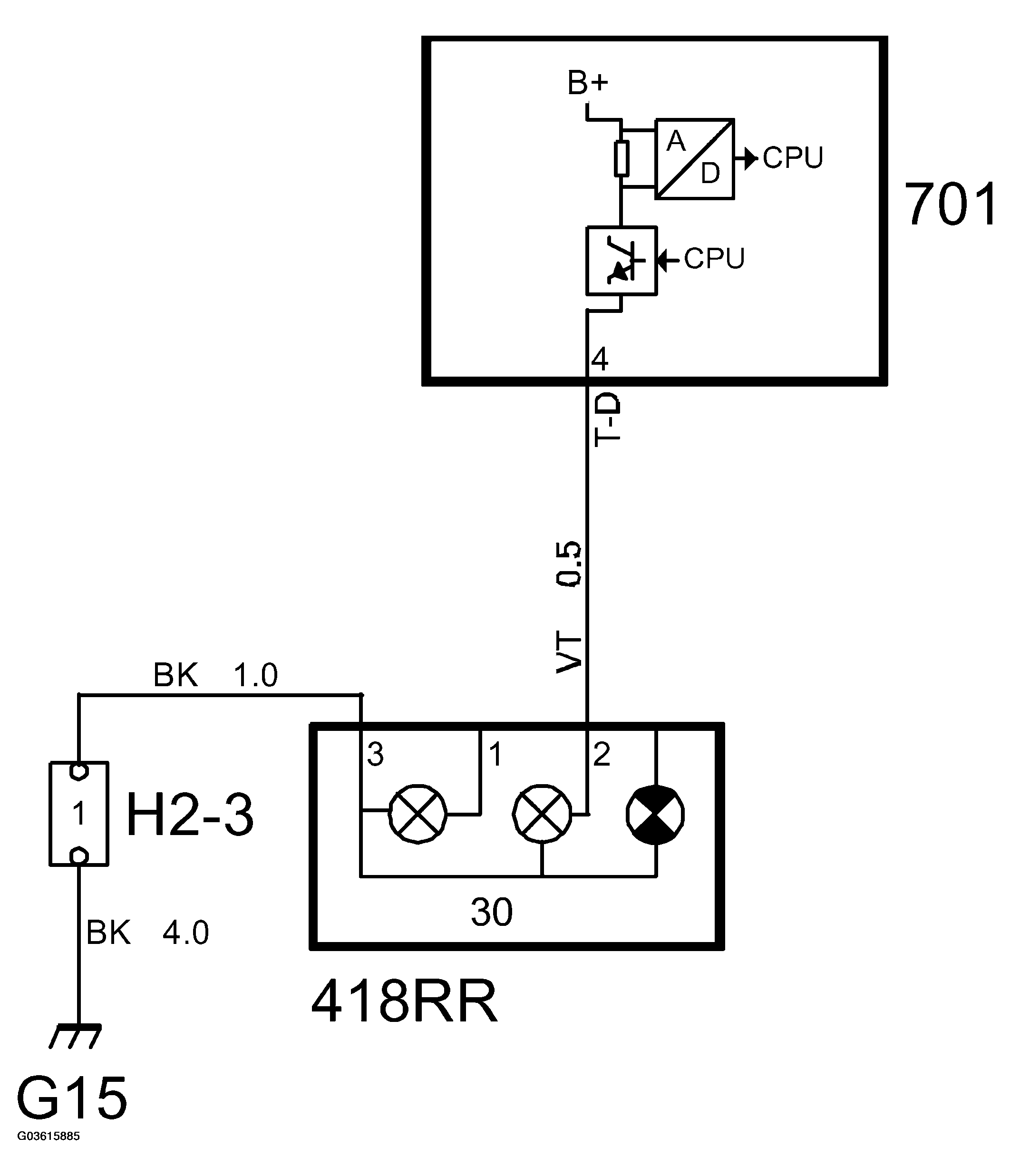

Fig 6: Right Brake Light Bulb (30RR) Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.

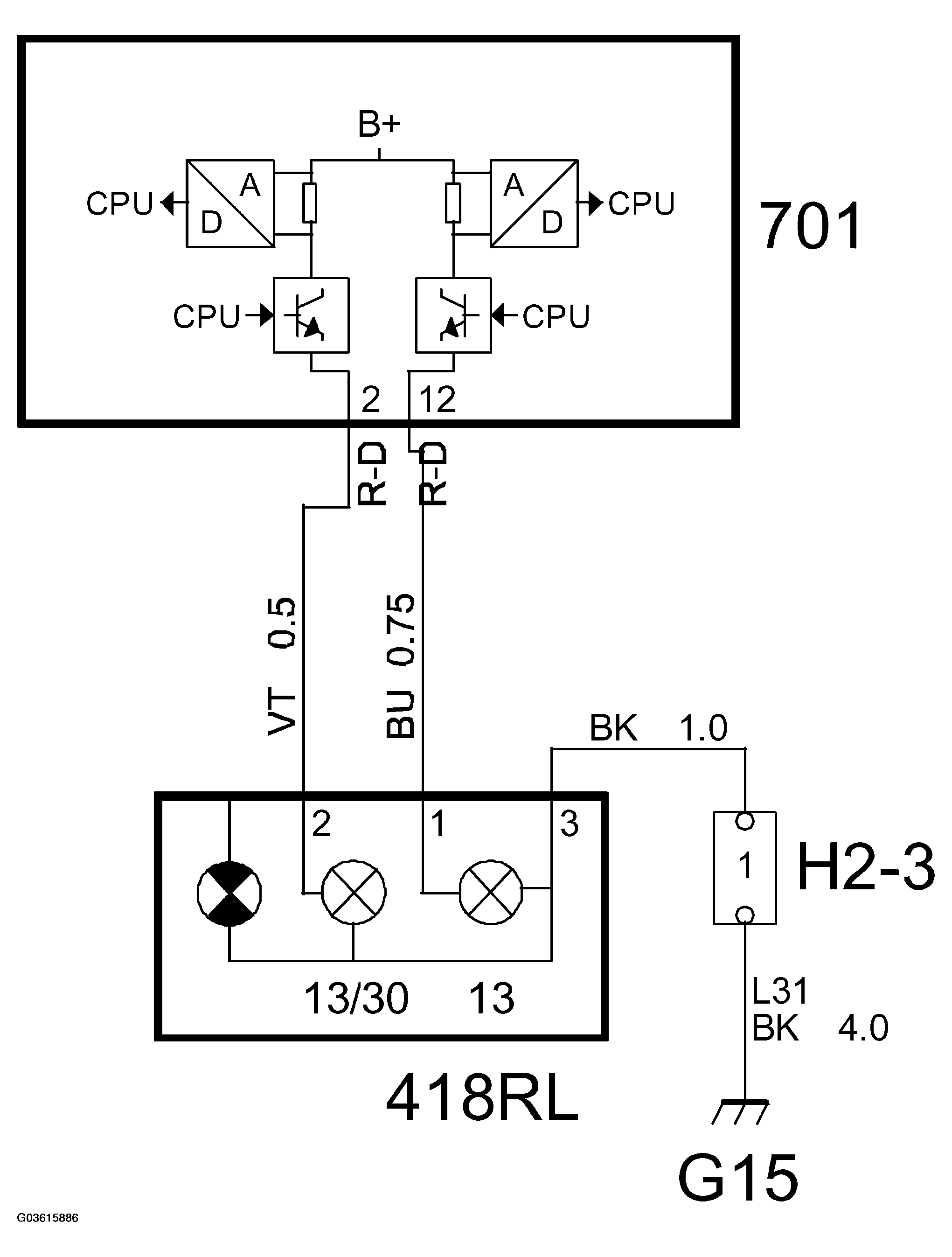

Rear left parking light bulb, (13RL)

Fig 7: Rear Left Parking Light Bulb (13RL) Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.

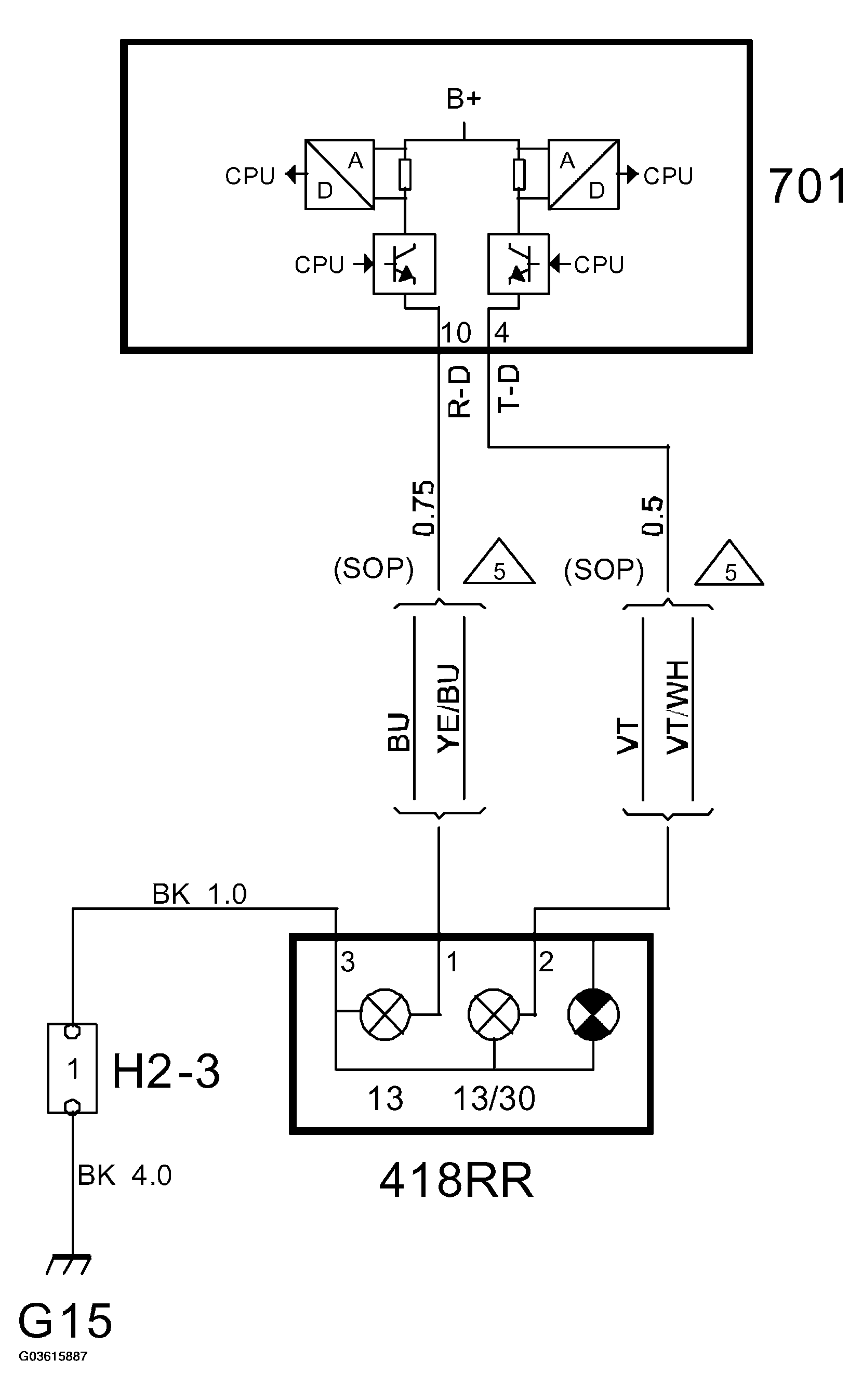

Rear right parking light bulb (13RR)

Fig 8: Rear Right Parking Light Bulb (13RR) Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
