Bulb, elevated brake lights (30RC): Connection

DESCRIPTION CHART

Pin No. Signal type Description
2 Power supply, B+ Brake light power supply, from REC pin 15 (H2)
3 Ground Brake light's ground in the body via REC.

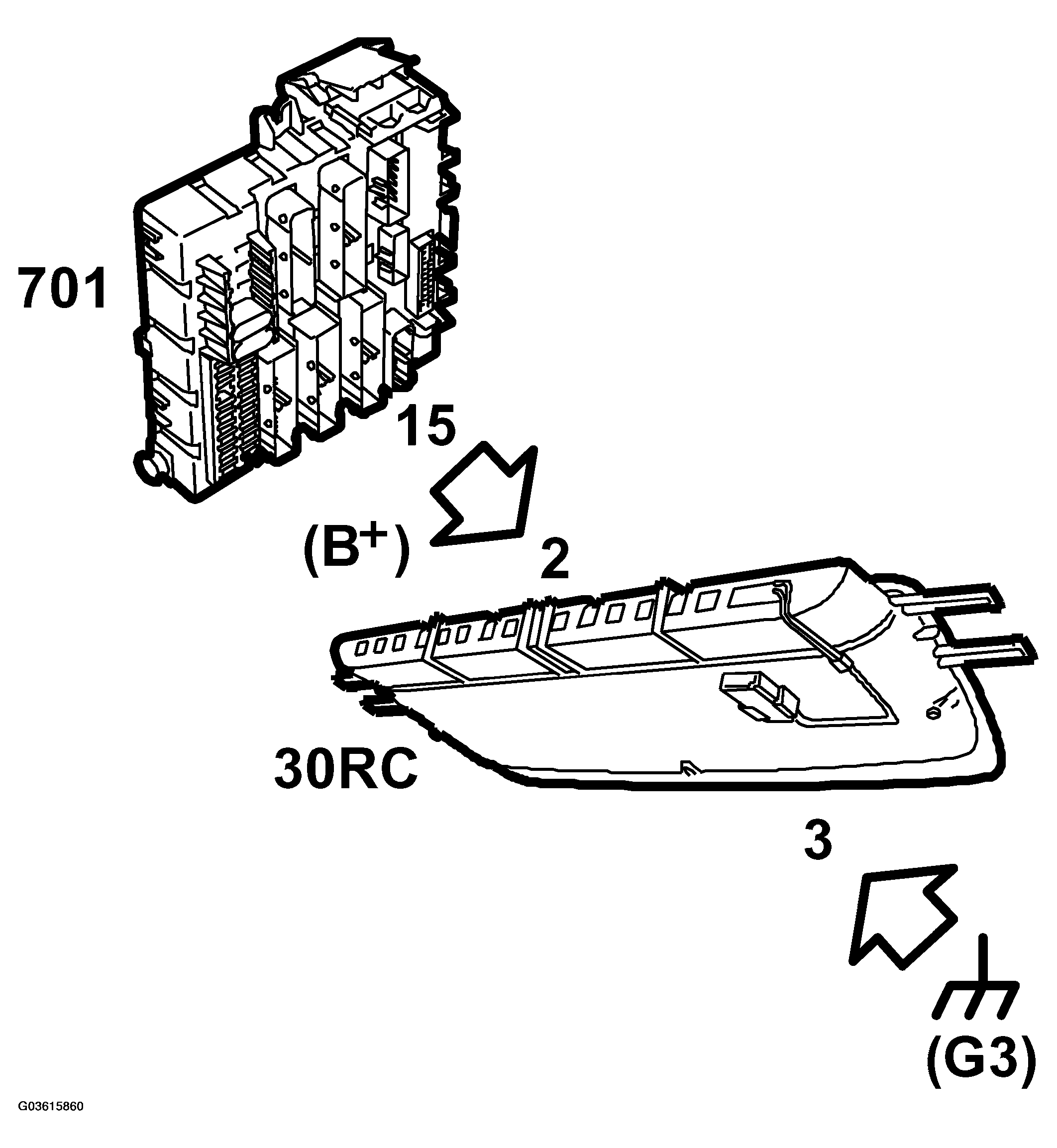

Fig 1: Identifying Main Task Connection
G03615860Courtesy of SAAB-SCANIA OF AMERICA, INC.

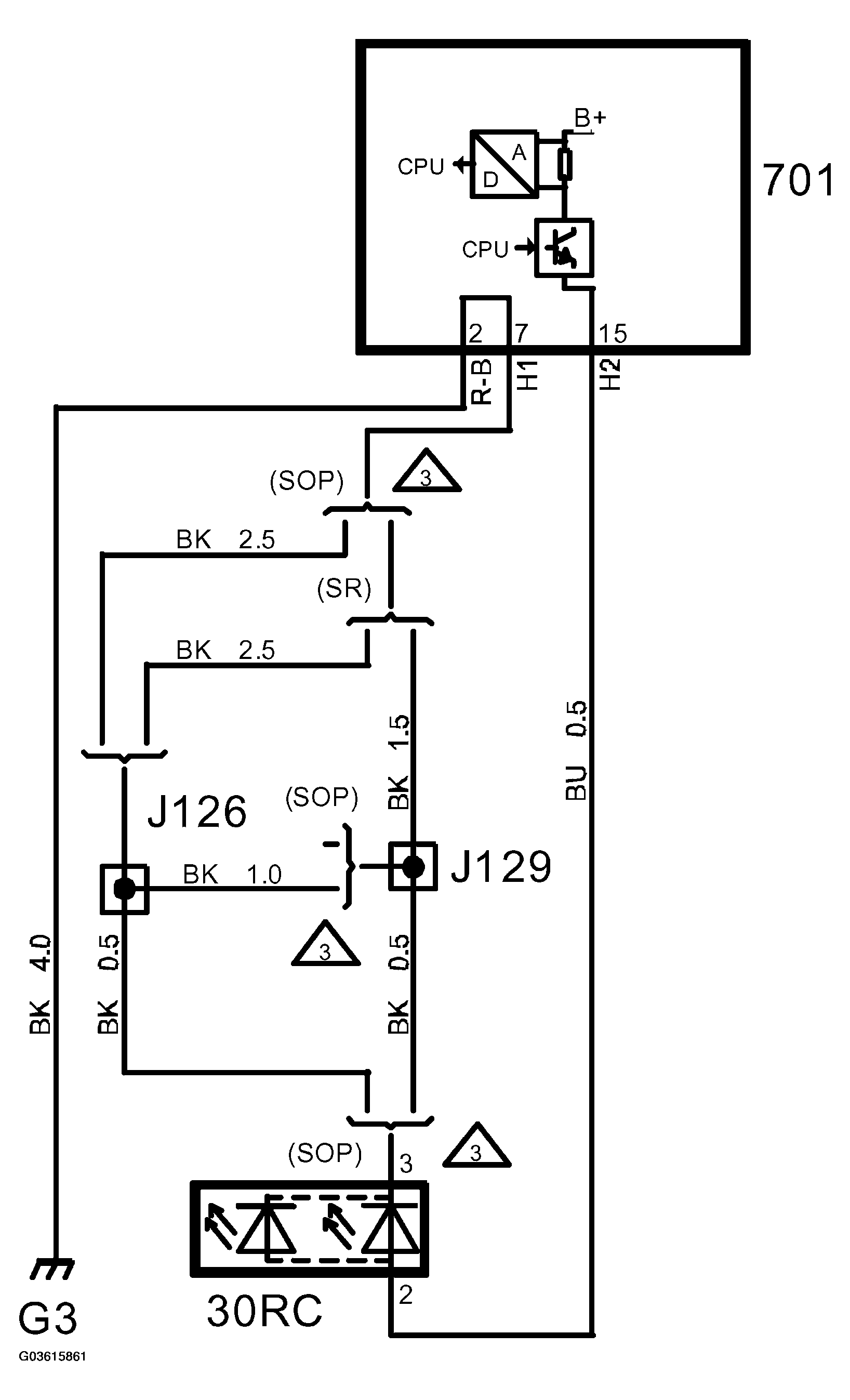

Fig 2: Main Task Connection Circuit Diagram
G03615861Courtesy of SAAB-SCANIA OF AMERICA, INC.
