Exterior Lighting (Late; 9440)
>>
Component Location
>>
Main instrument display panel (540)
Main instrument display panel (540)
Location:
opposite the driver in the dashboard

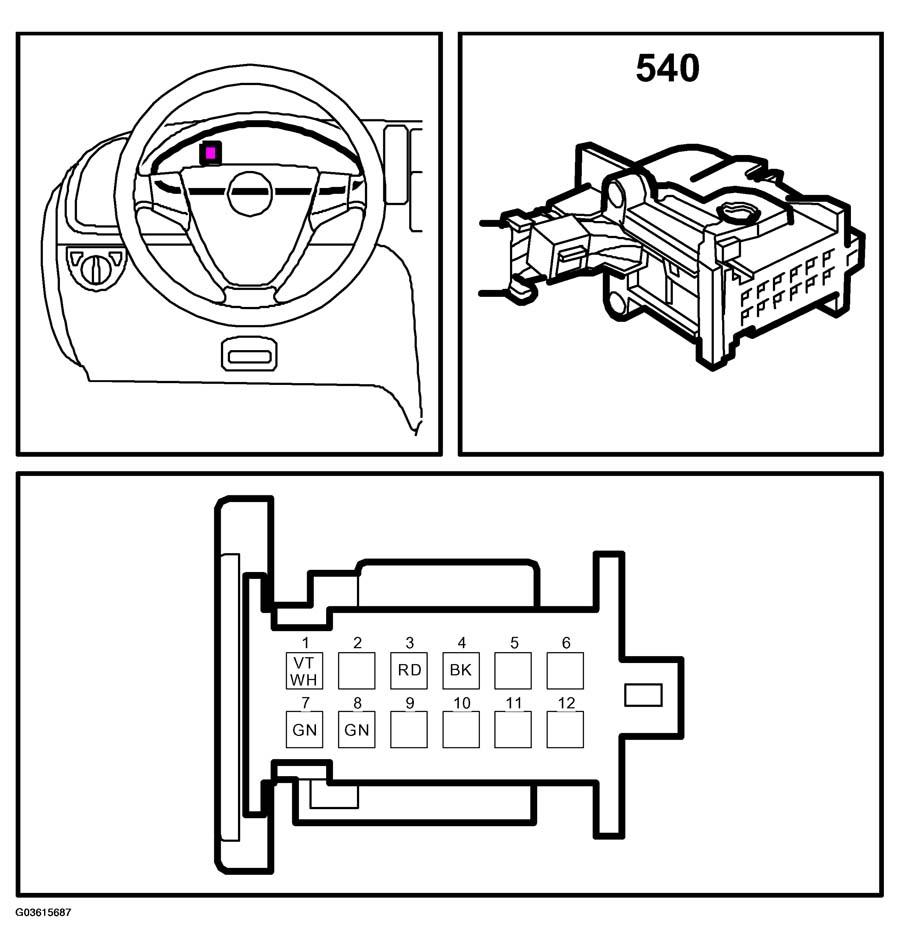

Fig 1: Identifying Main Instrument Display Panel (540) Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
