Grounding point G30A: Notes

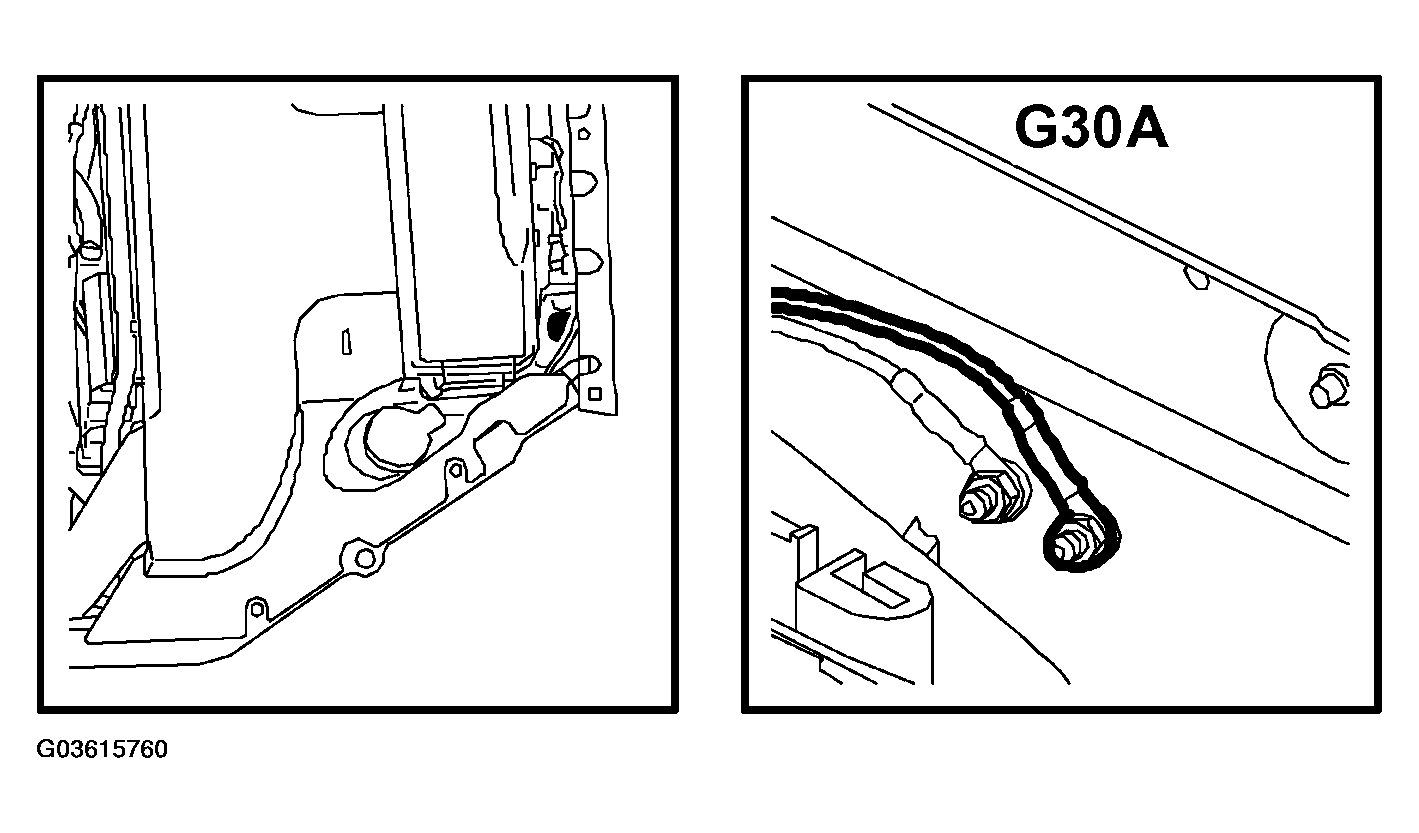

Fig 1: Identifying Grounding Point G30A Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Front grounding point on the side plate above the front left wheel housing

The grounding point is connected to grounding point G30B via crimp J1, engine bay main fuse box 342 and crimp J2.
