Grounding point G2

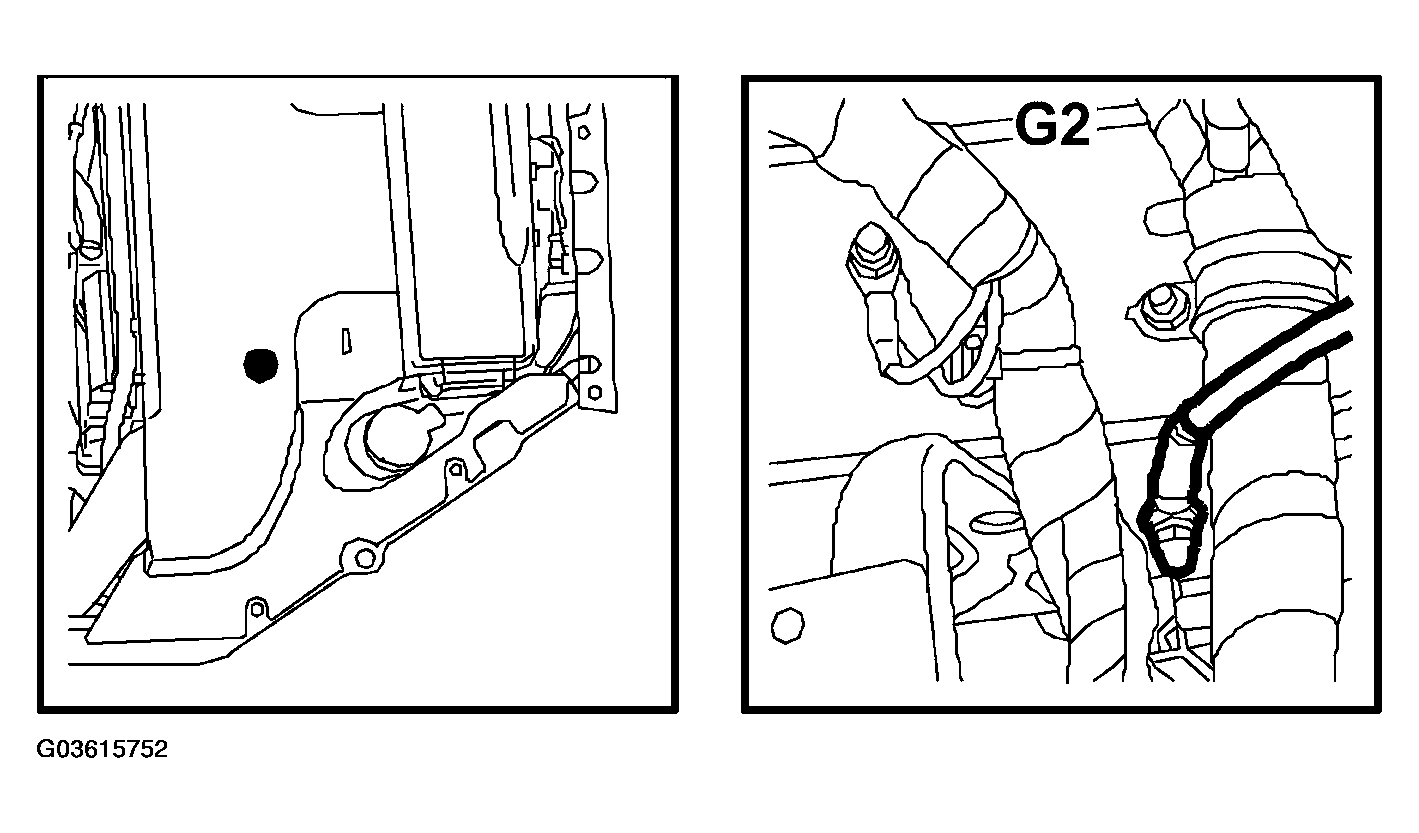

Fig 1: Identifying Grounding Point G2 Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location: On the side of the LH structural member near the connector console

SPECIAL TOOL - GROUNDING POINT G2

1	Battery
326	Secondary air injection pump motor
	Via CRIMP CONNECTION J54, DIESEL ENGINE HARNESS
31	Reversing light switch
170	Compressor, A/C
243	Engine oil level switch
595K	Control module, PSG 16, 4-cyl diesel, (switch K)
596	Glow plug control module
606	EGR solenoid valve

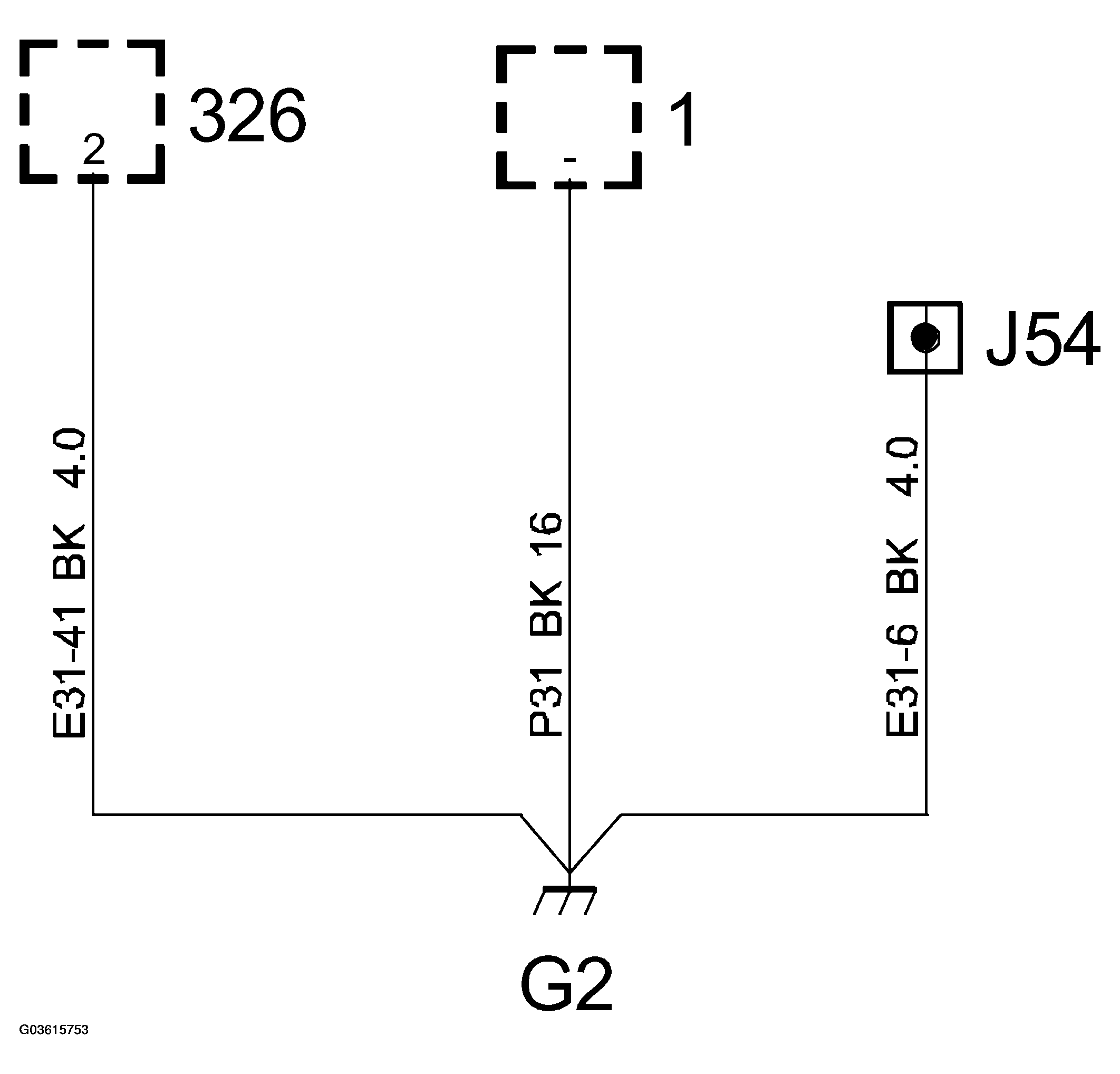

Fig 2: Grounding Point G2 Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
