Home >> Saab >> 2003 >> 9-3 SE, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Exterior Lighting (Late; 9440) >> Component Location >> Fuse 6, instrument panel electrical center 22 >> Notes

Fuse 6, instrument panel electrical center 22: Notes

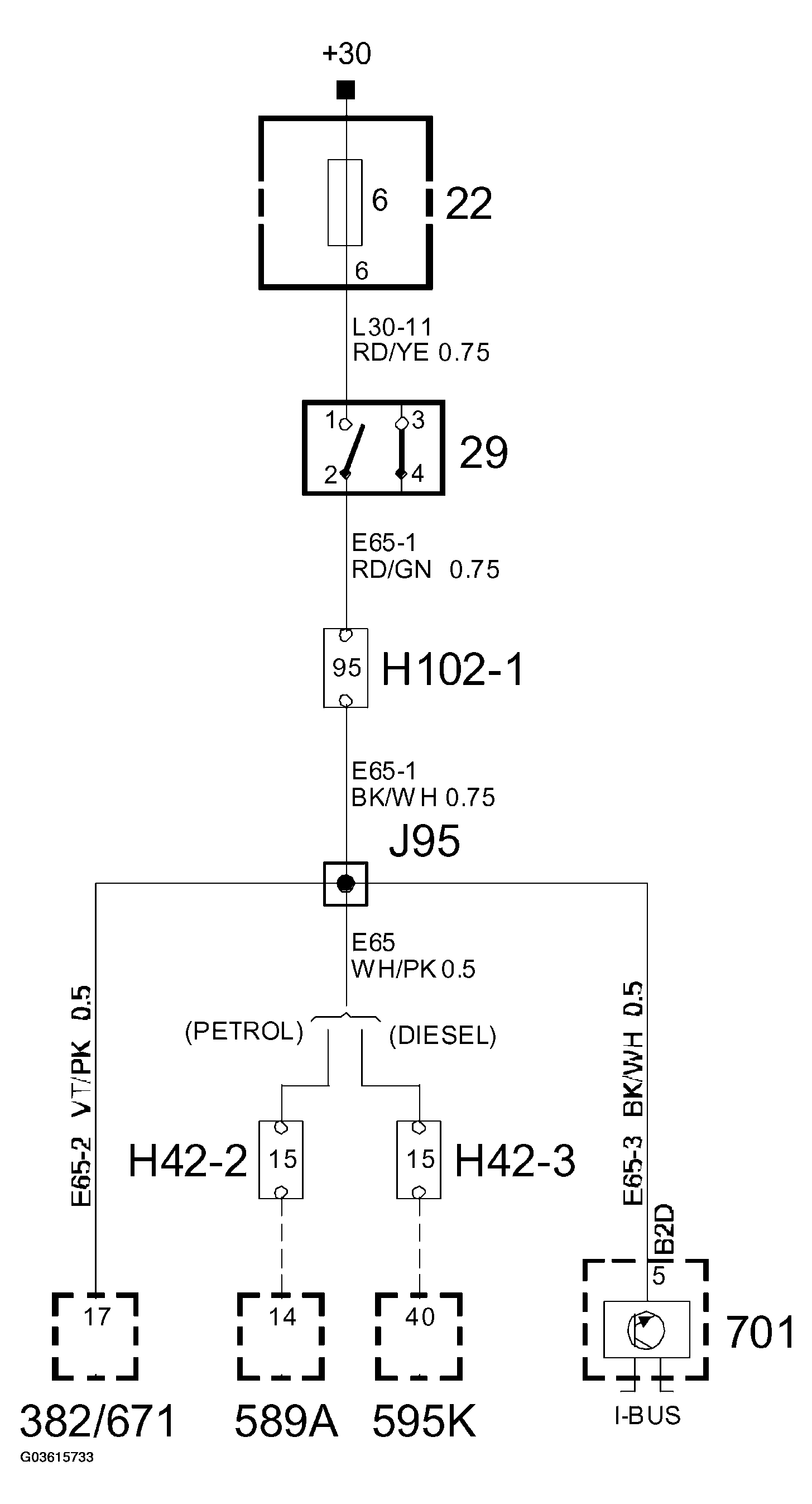

Fig 1: Fuse 6, Instrument Panel Electrical Center 22 Circuit Diagram

G03615733

Courtesy of SAAB-SCANIA OF AMERICA, INC.
