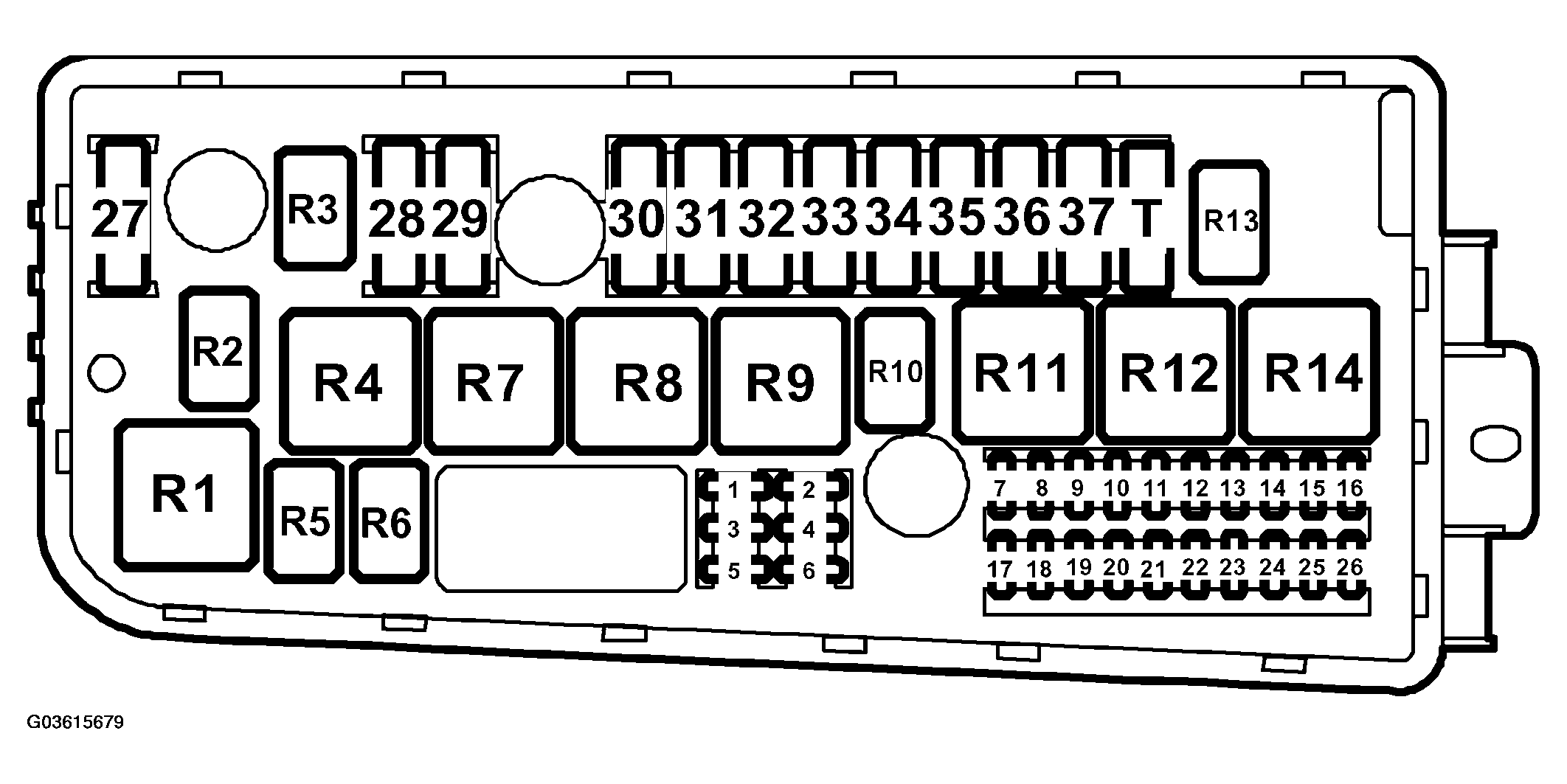

Engine bay electrical center 342 (UEC): Fuses
The electrical center can be equipped with more fuses than those that have a function according to the list below.
They are not then generally connected to the car's wiring harness.
FUSES FUNCTION SPECIFICATION
| No. | Amp | Type | Function |
|---|---|---|---|
| 1 | 30 | +30 | Diesel via main relay 229: PSG16 Glow plug control module Charge air control valve Solenoid valve, combustion circulation Solenoid valve, engine shut-off |
| 2 | 10 | +30 | Trionic T8 TCM |
| 3 | 20 | +30 | Horn |
| 4 | 10 | +15 | petrol: Trionic T8 Battery disconnect switch diesel: PSG16, switch K Mass Air Flow Sensor, diesel EGR unit |
| 5 | - | ||
| 6 | 10 | +30 | TCM Gear selector, automatic Immobilizer switch |
| 7 | - | ||
| 8 | 20 | +15 | Fuel filter, diesel |
| 9 | - | ||
| 10 | - | ||
| 11 | - | ||
| 12 | - | ||
| 13 | 10 | +30 | A/C compressor (diesel) |
| 14 | - | ||
| 15 | 30 | +30 | Washer fluid pump, headlamp |
| 16 | 30 | Lighting, left front: Side direction indicators, dipped beam, fog light Lighting, right front: Position lamp, direction indicator, side direction indicator, main beam |
|
| 17 | 30 | Windscreen wiper motor, low-speed | |
| 18 | 30 | Windscreen wiper motor, high-speed | |
| 19 | 20 | +30 | Parking heater Auxiliary heater Connection, accessories |
| 20 | 10 | +15 | Motors, manual headlamp beam adjustment Automatic Headlamp Levelling |
| 21 | - | ||
| 22 | 30 | +30 | Washer fluid pump, windscreen |
| 23 | - | ||
| 24 | 20 | +30 | Auxiliary lamp Solenoid, screen, xenon lamp (US/CA/JP) |
| 25 | 20 | +30 | Front amplifier |
| 26 | 30 | +30 | Lighting, left front: direction indicator, position lamp, main beam Lighting, right front: dipped beam, fog light |
| 27 | 60 maxi |
+30 | Glow plug control module |
| 28 | 40 maxi |
+30 | TCS/ESP |
| 29 | 60 maxi |
+30 | Main fuse 2 for rear electrical center |
| 30 | 60 maxi |
+30 | Main fuse 2 for dashboard electrical center |
| 31 | 40 maxi |
+30 | Starter motor solenoid via relay 517 |
| 32 | 60 maxi |
+30 | Main fuse 1 for dashboard electrical center |
| 33 | 40 maxi |
+30 | TCS/ESP |
| 34 | 60 maxi |
+30 | Main fuse 1 for rear electrical center |
| 35 | 30 maxi |
+30 | Radiator fans, high-speed |
| 36 | 20 maxi |
+30 | Radiator fans, low-speed |
| 37 | 60 maxi |
+30 | Transport lock. Main fuse 3 for rear electrical center |
