Crimp connection J68, instrument harness: Notes

Location:

LHD:  Approx. 260 mm from light switch unit to column integration module

RHD:  --

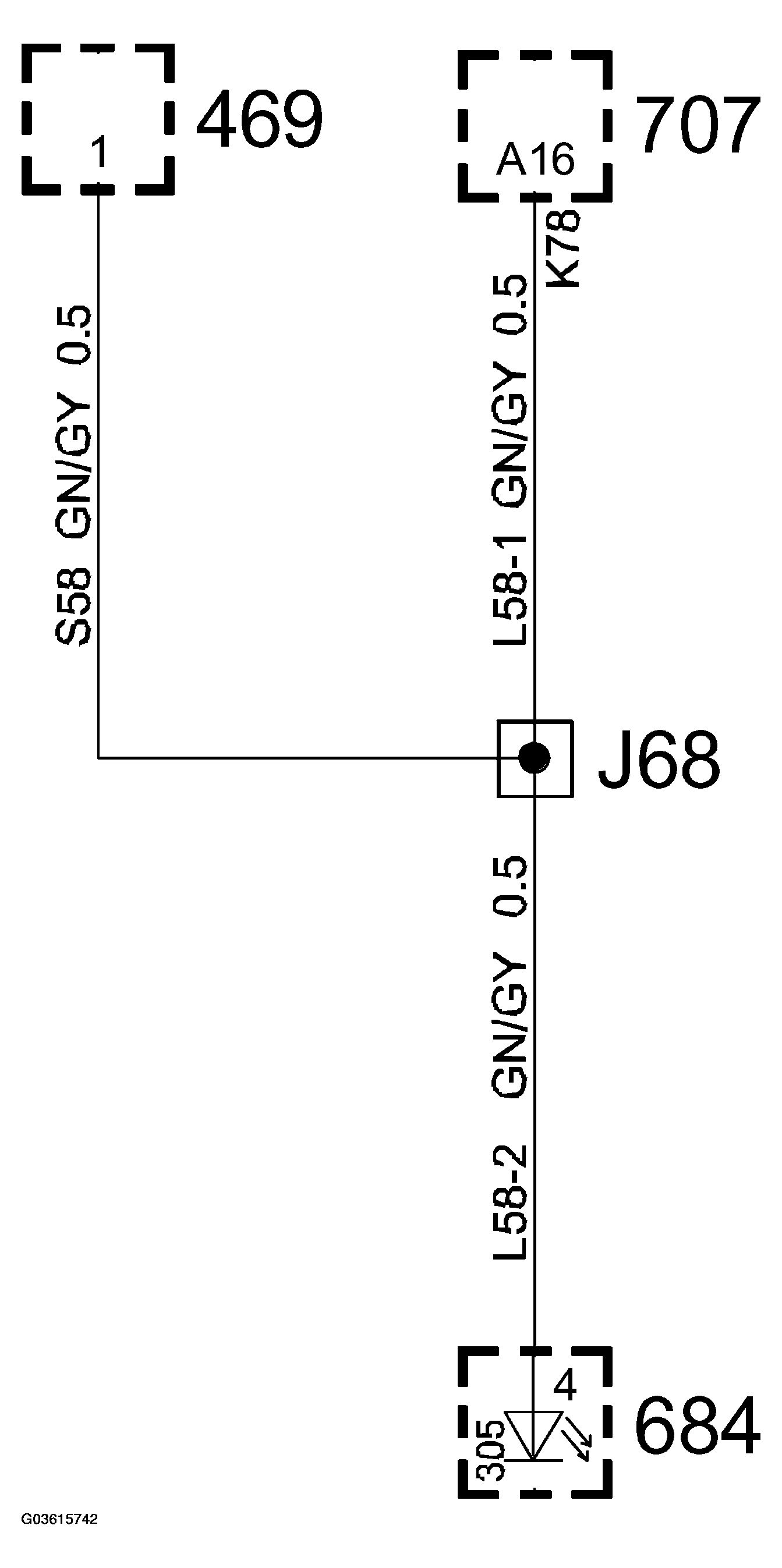

Fig 1: Crimp Connection J68, Instrument Harness Circuit Diagram
G03615742Courtesy of SAAB-SCANIA OF AMERICA, INC.
