Crimp connection J54, diesel engine harness: Notes

Location:  Approximately 170 mm from crankshaft position sensor branching point towards the engine control module

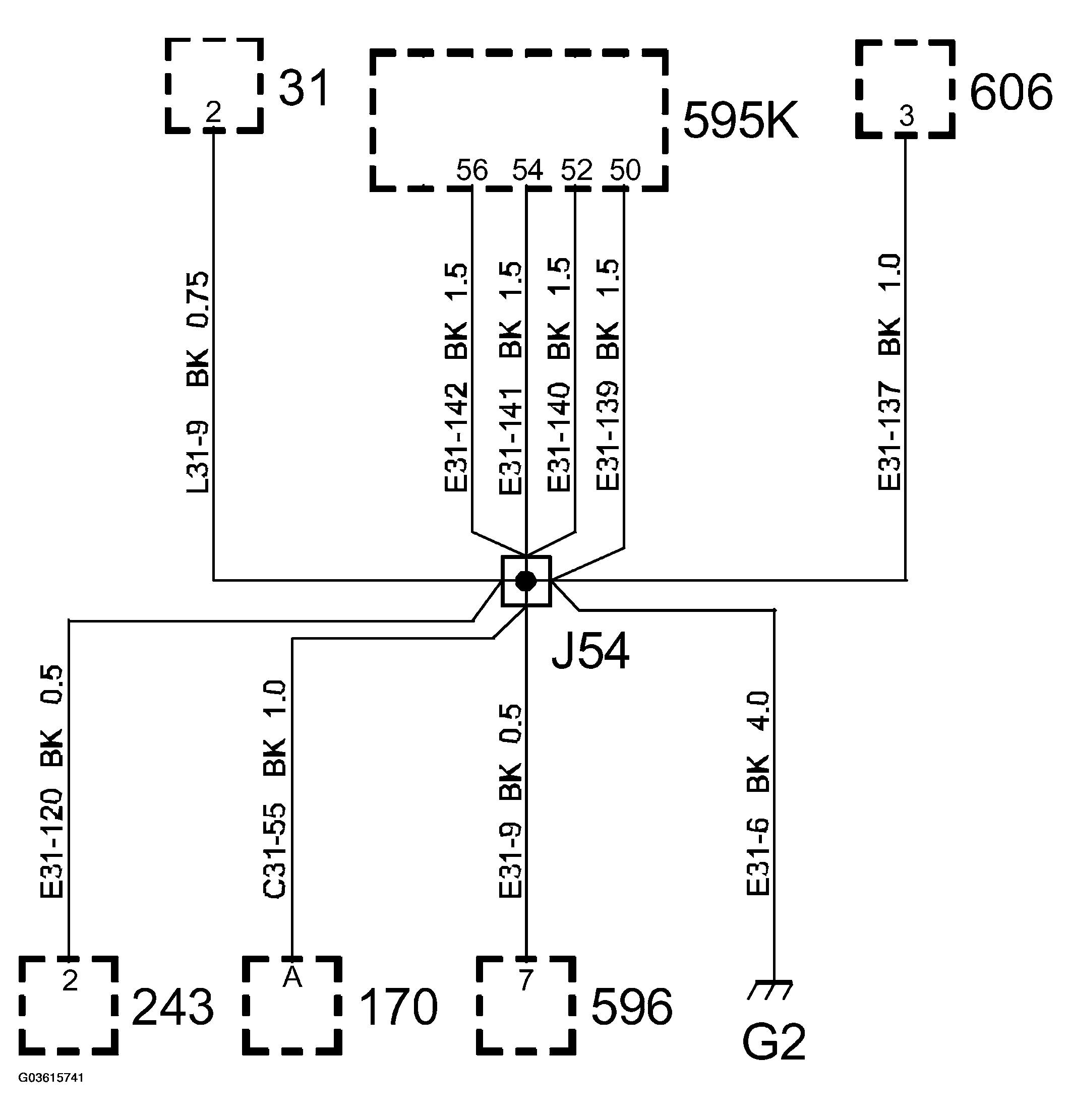

Fig 1: Crimp Connection J54, Diesel Engine Harness Circuit Diagram
G03615741Courtesy of SAAB-SCANIA OF AMERICA, INC.
