Crimp connection J126, roof wiring harness: Notes

Location:  Approx. 130 mm from branching point cabin lighting switch to left-hand sun visor

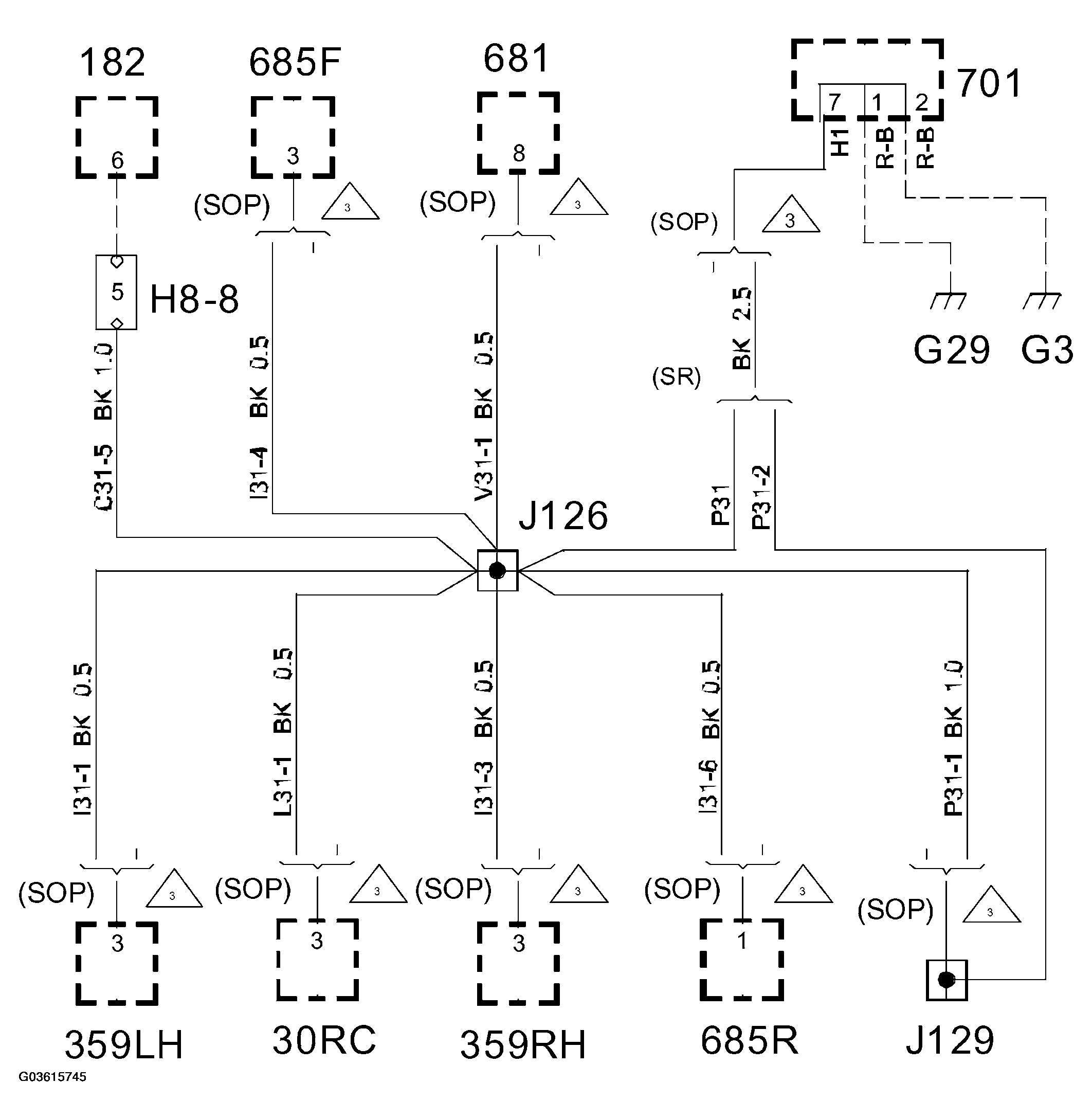

Fig 1: Crimp Connection J126, Roof Wiring Harness Circuit Diagram
G03615745Courtesy of SAAB-SCANIA OF AMERICA, INC.
