Crimp J95, main harness: Notes

Location

SOP:  Approx. 30 mm from branching point left front door to engine bay

Rev.3:  Approx. 60 mm from branching point left front door to engine bay

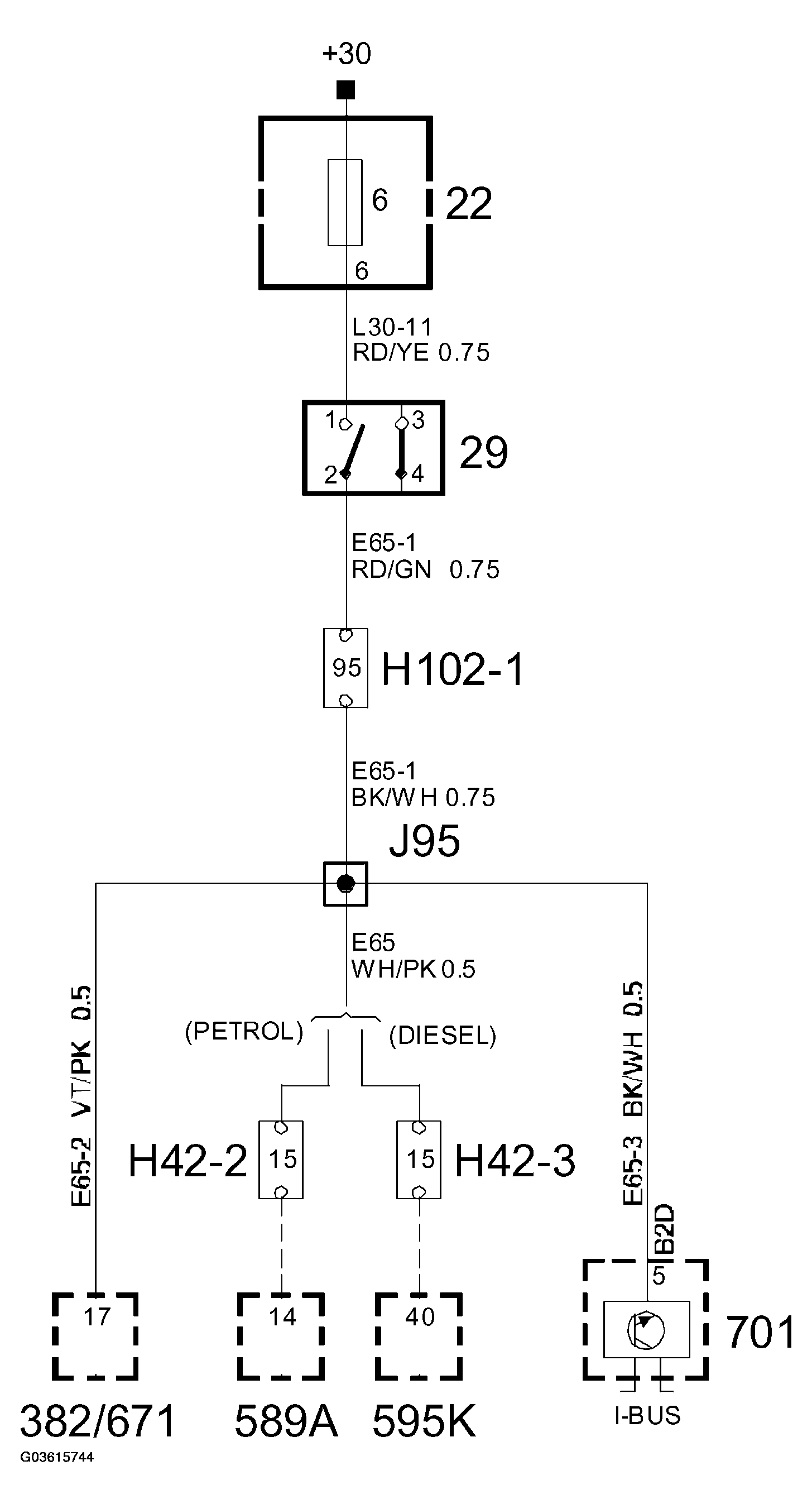

Fig 1: Crimp J95, Main Harness Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
