Crimp J172, spotlight wiring harness: Notes

Location:  Approx. 400 mm from branching grounding point G30A towards the spotlights

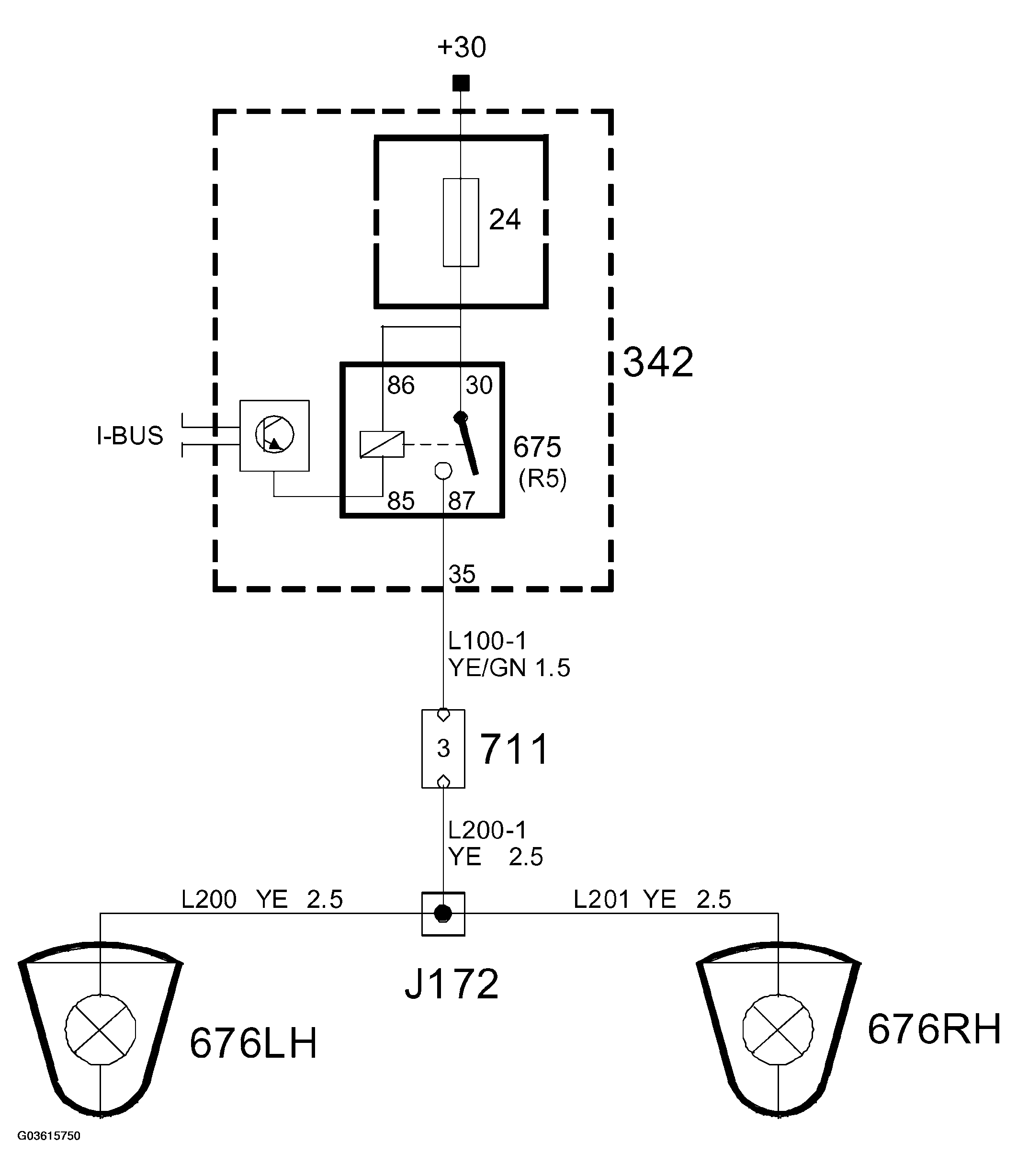

Fig 1: Crimp J172, Spotlight Wiring Harness Circuit Diagram
G03615750Courtesy of SAAB-SCANIA OF AMERICA, INC.
