Control module, PSG 16, 4-cyl diesel, switch K (595K)

Location: engine front

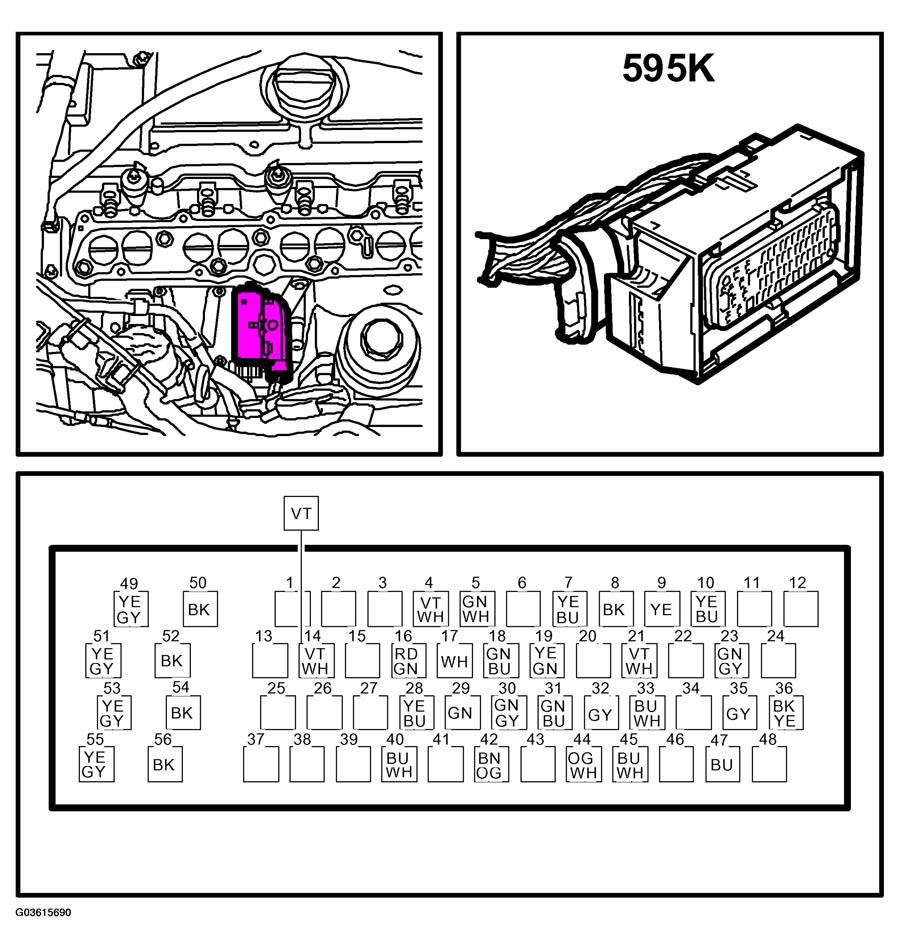

Fig 1: Identifying Control Module, PSG 16, 4-Cyl Diesel, Switch K (595K) Connector

G03615690

Courtesy of SAAB-SCANIA OF AMERICA, INC.
