Rear light cluster: Fitting

  1. Plug in the connector.
  2. Fit the rear light with the help of the guide pins. Check the fit against the luggage compartment's moulding and rear light.
  3. Fit the rear light's nuts.

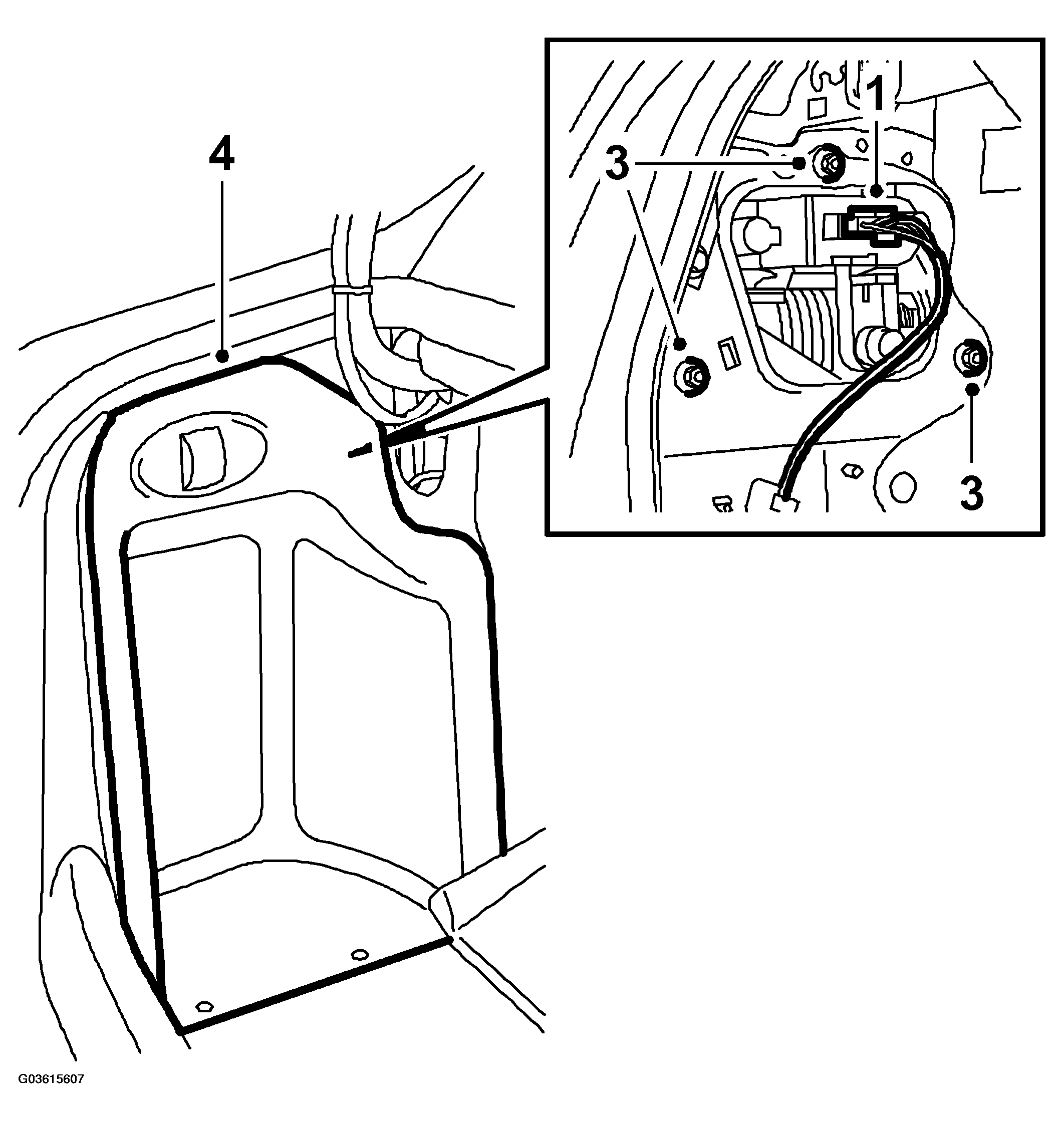

    Fig 1: Illustration For Step 1, 3 & 4
    G03615607Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Close the side hatches close the bootlid.
