Number plate lamp: Replacing

  1. Remove the lamp lens.
    IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.

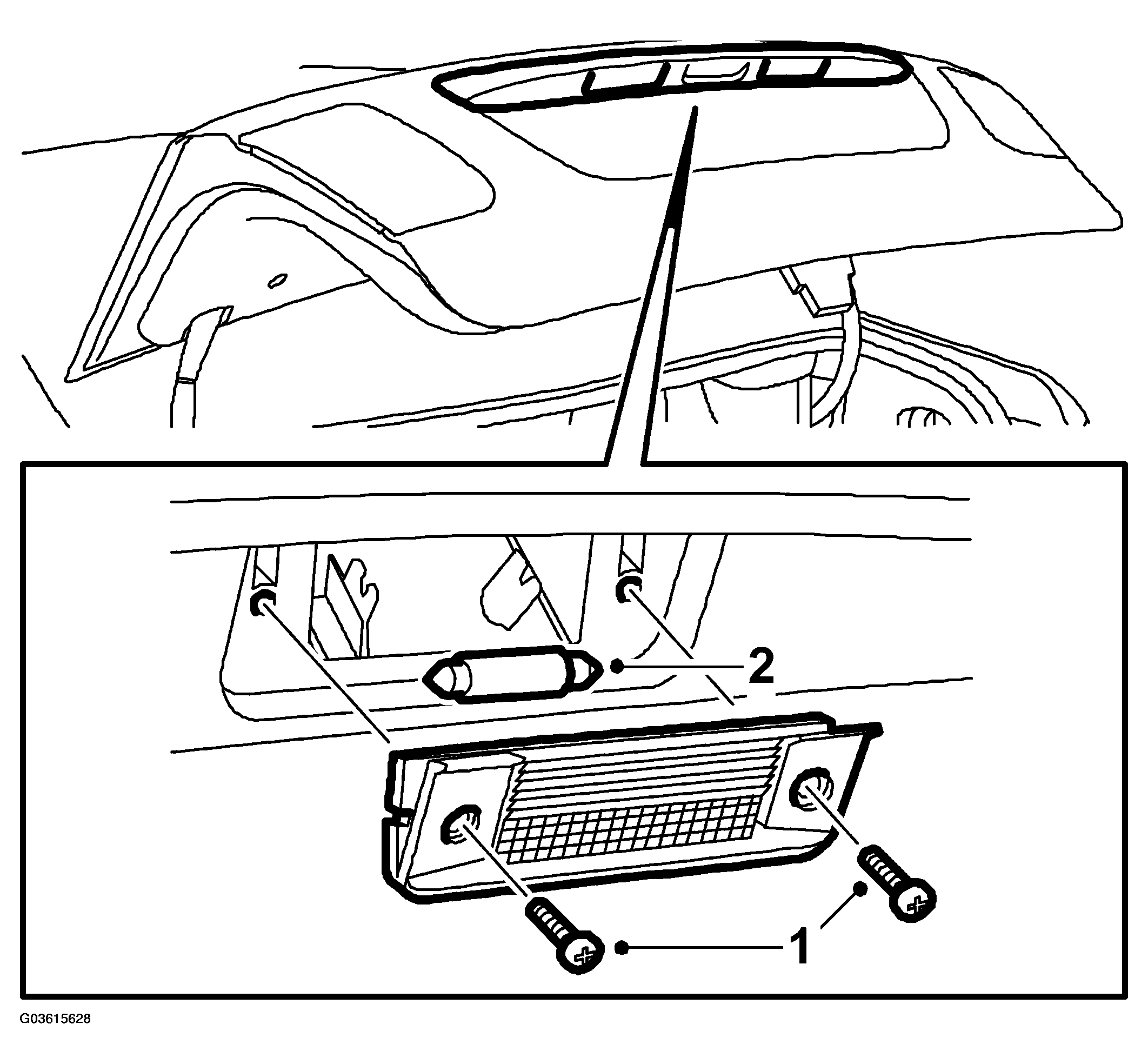

    Fig 1: Illustration For Step 1-2
    G03615628Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Pull the bulb straight out and replace it.
    NOTE: Make sure that the lamp lens seal is properly situated.
  3. Fit the lamp lens.

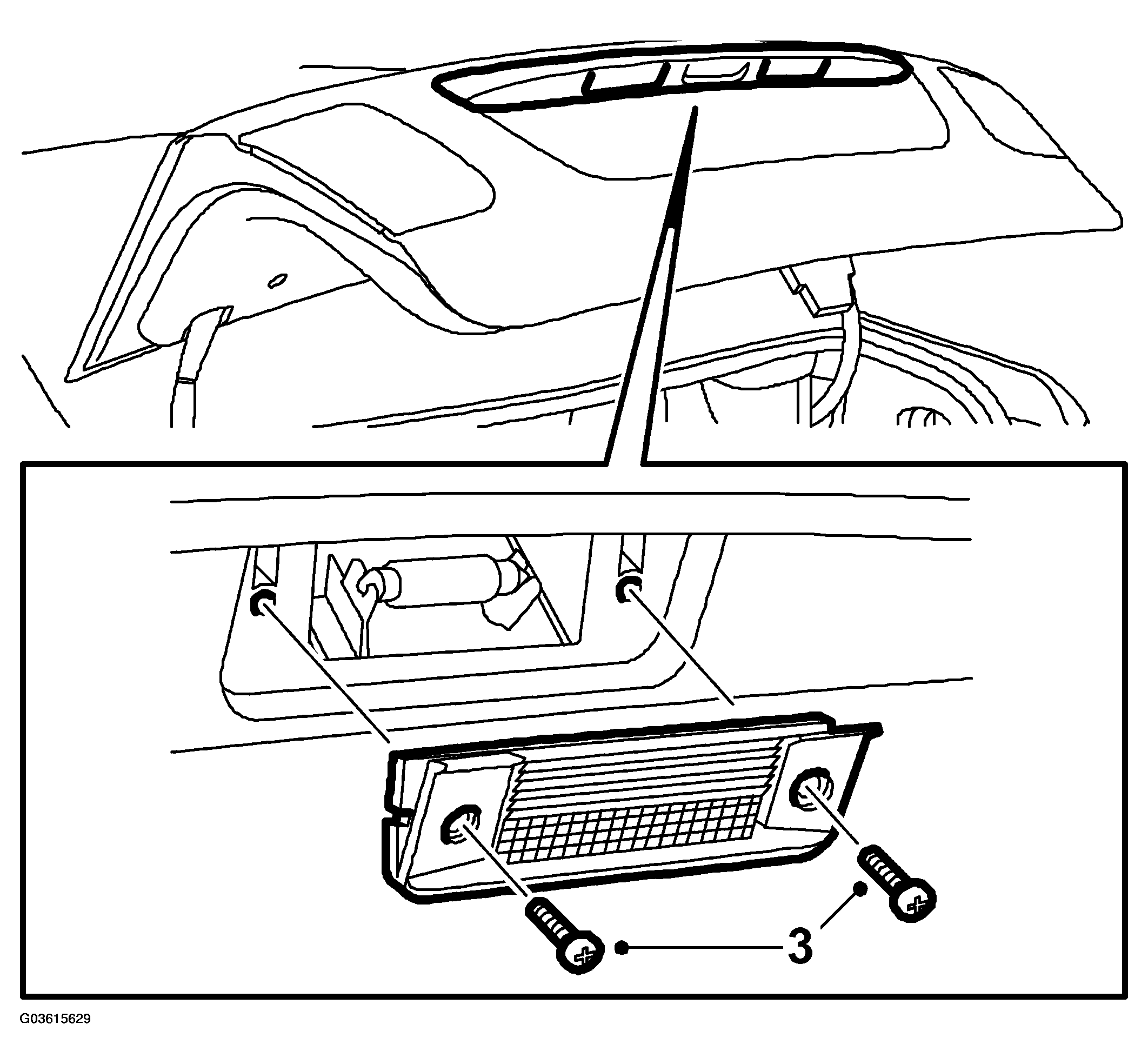

    Fig 2: Illustration For Step 3
    G03615629Courtesy of SAAB-SCANIA OF AMERICA, INC.
