To fit

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.
  1. Fit the bulb in the bulb socket.

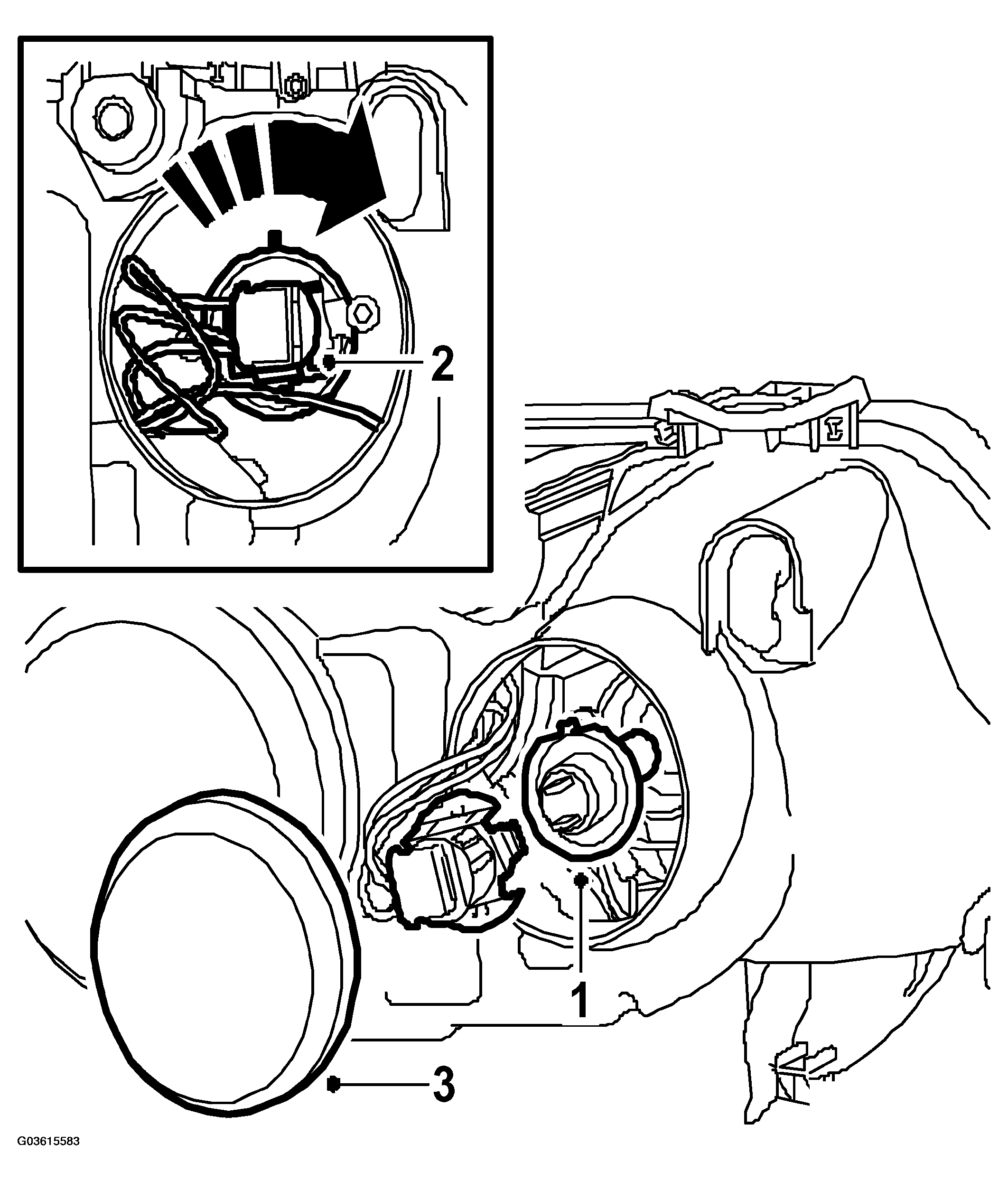

    Fig 1: Illustration For Step 1-3
    G03615583Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the bulb socket by turning it clockwise until secure.
  3. Fit the protective cover of the headlamp.
  4. LH:  Fit the air inlet pipe to the lower battery cover.

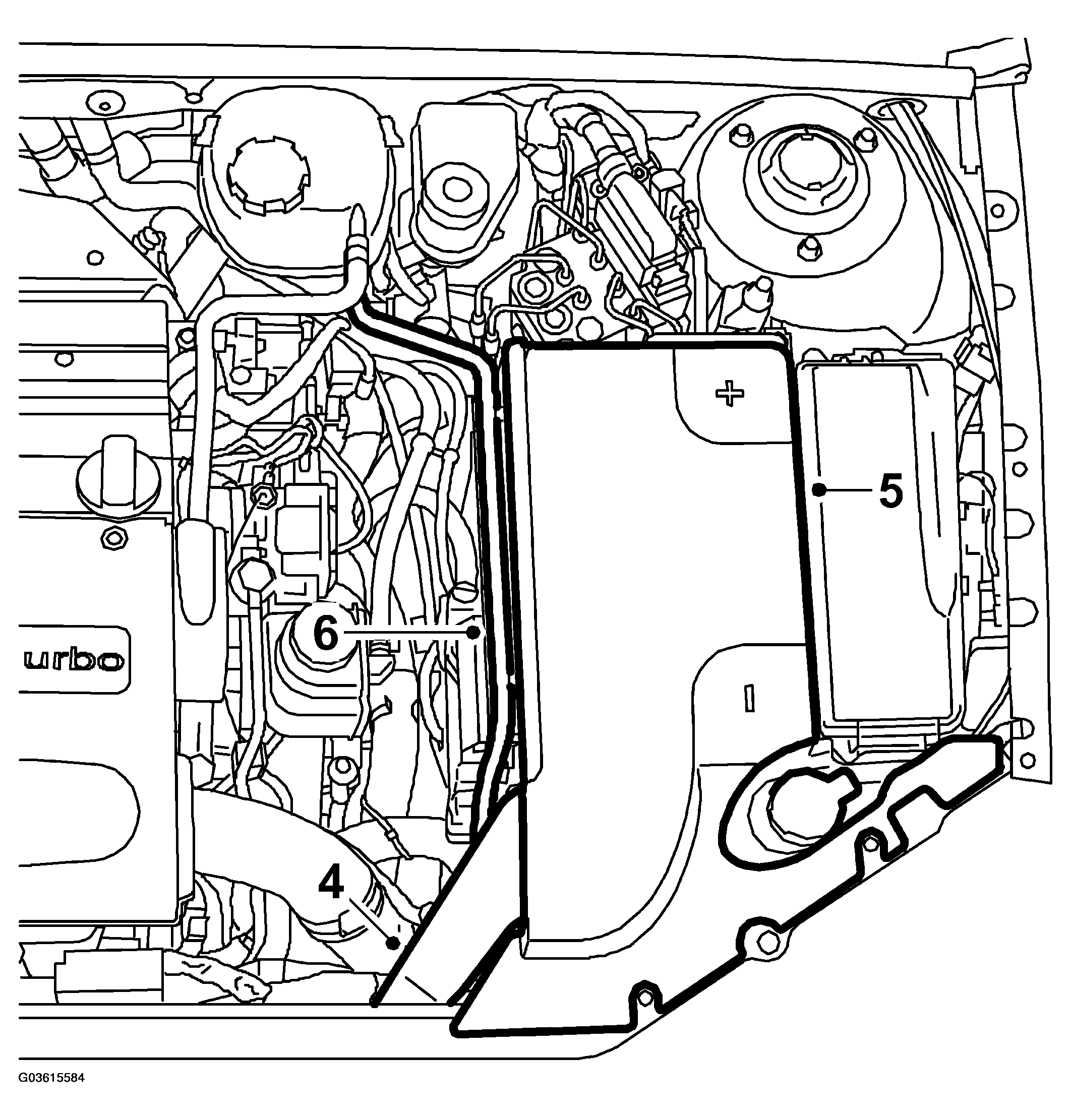

    Fig 2: Illustration For Step 4-6
    G03615584Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. LH:  Fit the battery cover.
  6. LH:  Refit the radiator hose.
