Light setting against a wall

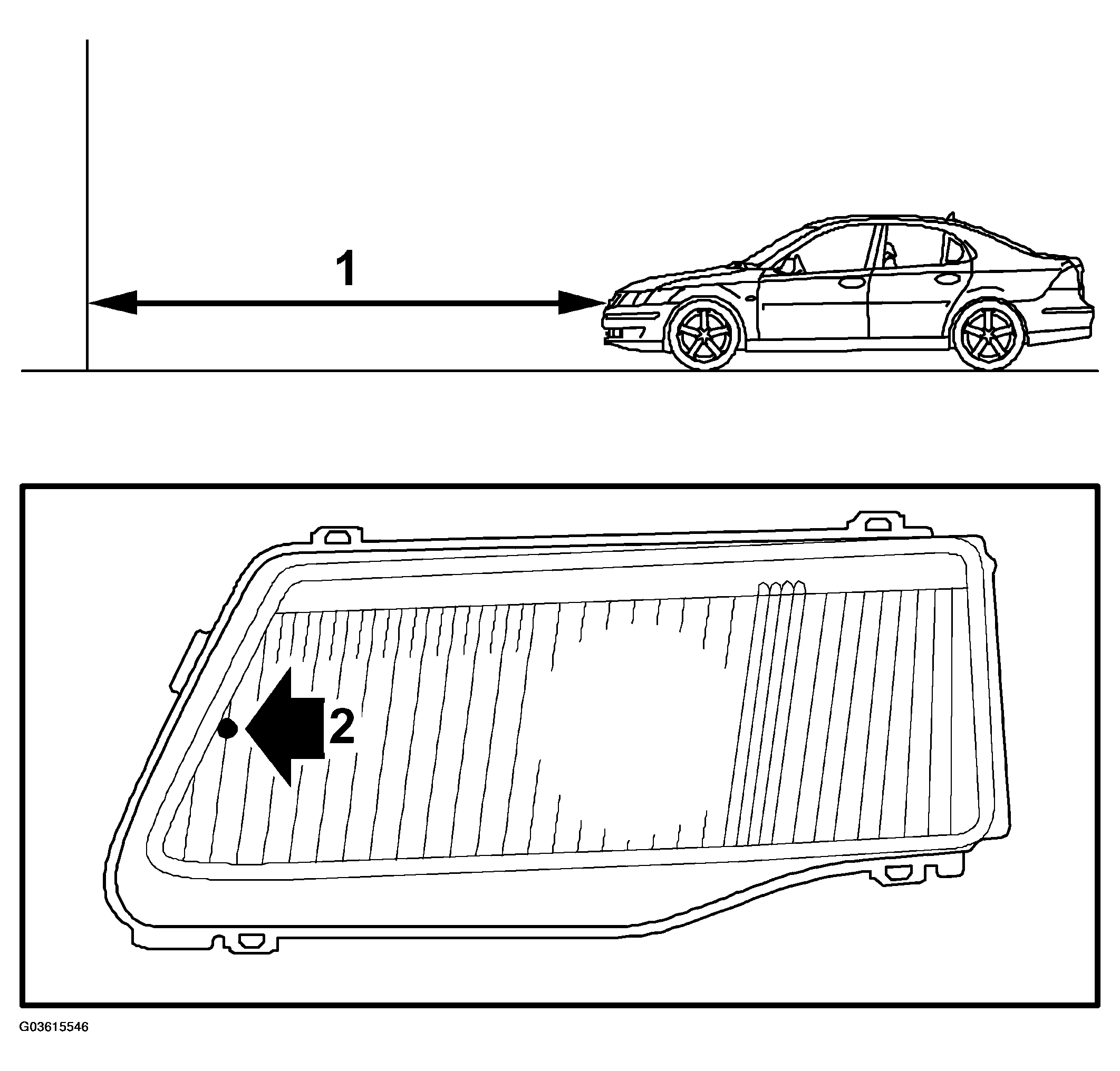

- Park the car 25 ft (7.6 m) from the wall.
NOTE: The headlamps should be set with a 2 inch downward angle at 25 ft (5 cm at 7.6 m)
- Measure from the ground to the mark on the headlamp lens, deduct 2 inches (5 cm) and note the measurement.
- Take the same measurement as noted in point 2. Draw a horizontal line as wide as the car on the wall.
- Xenon headlamp: Start the engine, allow the headlamps to do a reference shine and then switch off the engine.
- Switch on dipped beam.
- Screen off the headlamp not being set.
- When the light setting is correct, the base line of the light image should match the horizontal line on the wall.
- Adjust the light image vertically until the base line matches the horizontal line on the wall.

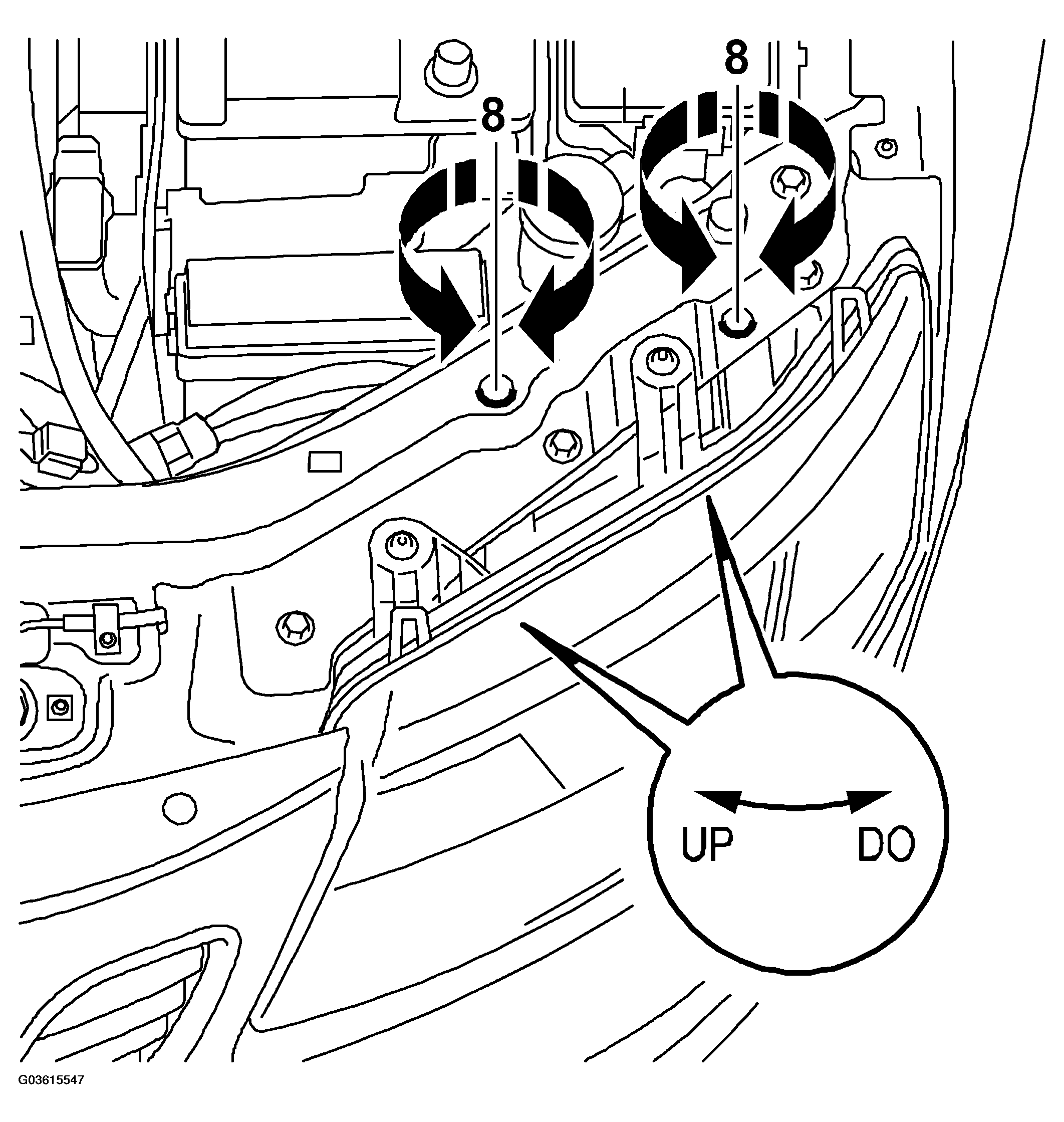

Tighten both screws equally in the same direction.
