Light setting against a wall

Park the car 25 ft (7.6 m) from the wall.

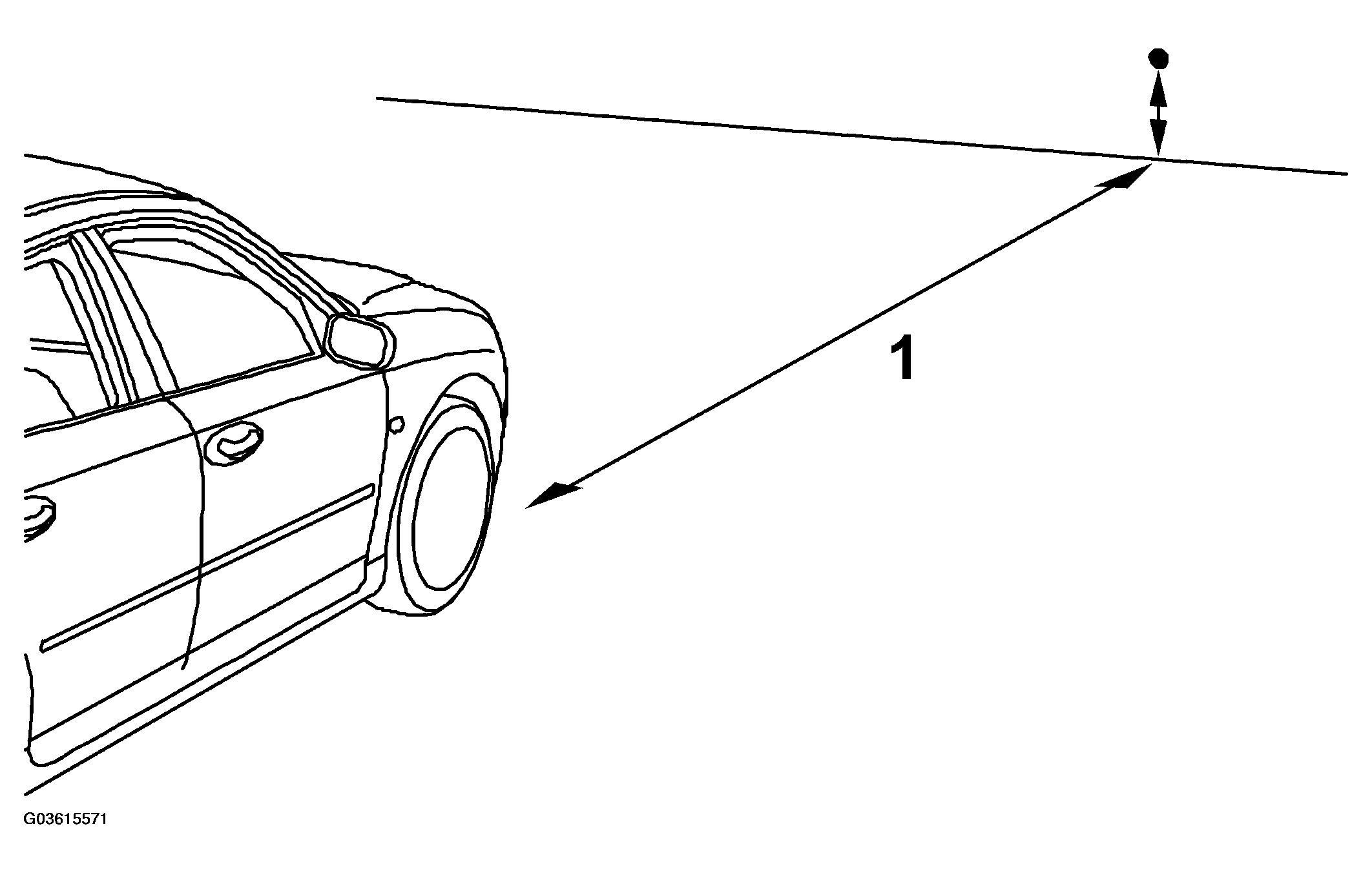

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: The fog lights should be set with a 4 inch downward angle at 25 ft (10 cm at 7.6 m)
Measure from the ground to the mark on the fog light lens, deduct 4 inches (10 cm) and note the measurement.

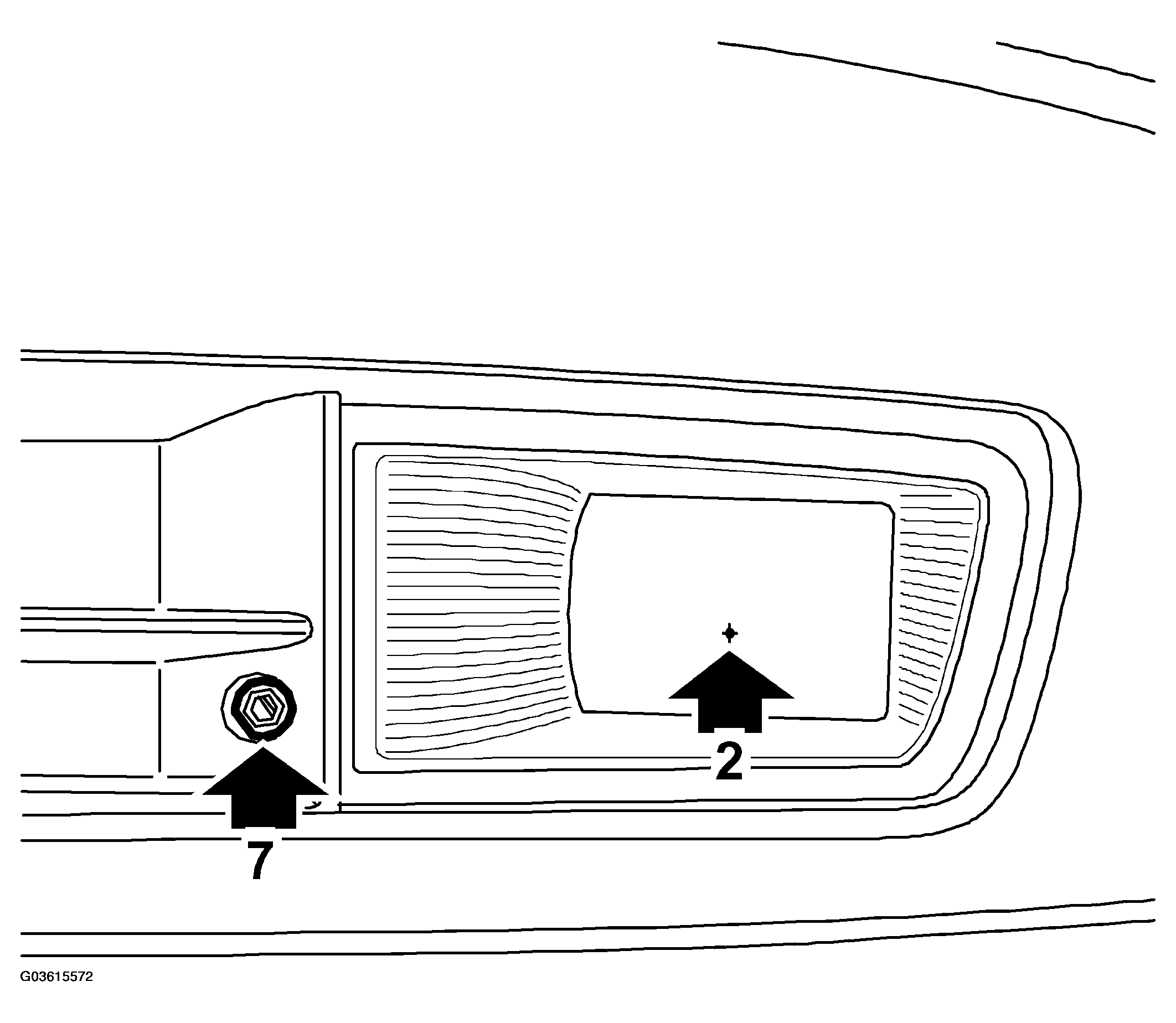

Fig 2: Illustration For Steps 2 & 7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Take the same measurement as noted in point 2. Draw a horizontal line as wide as the car on the wall.
Switch on the fog lights.
Screen off the fog light not being set.
When the light setting is correct, the base line of the light image should match the horizontal line on the wall.
Adjust the light image vertically until the base line matches the horizontal line on the wall.
