To fit

  1. Check the lamp housing gasket. Fit the lamp housing with nuts.

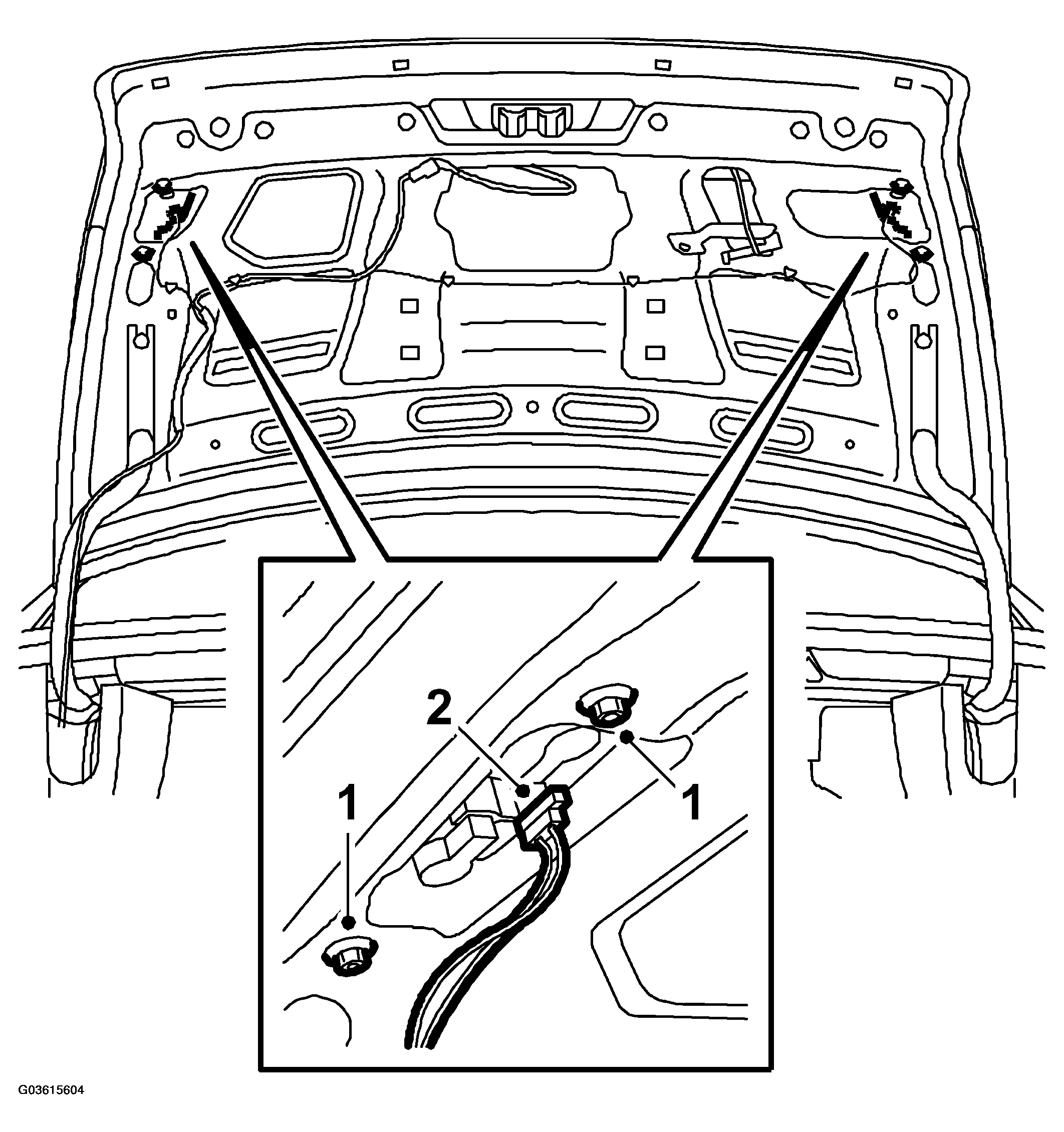

    Fig 1: Illustration For Step 1-2
    G03615604Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
  3. Lift up the trim.

    US/CA: Insert the emergency handle through the trim.

  4. Position the trim at the lock cover and insert the guide clips. Press the guide clips into place.
  5. Fit the clips and the inner handle.

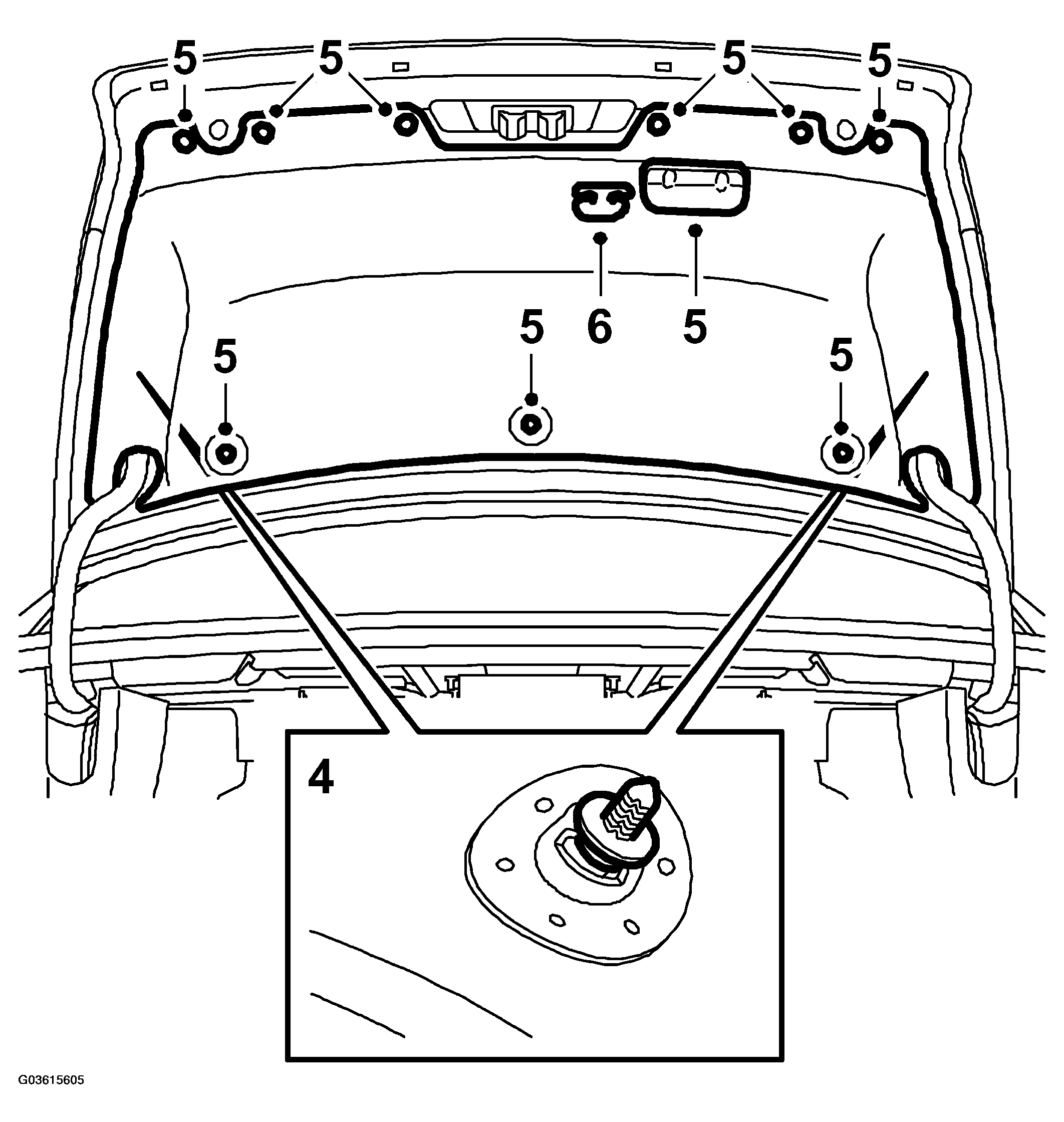

    Fig 2: Illustration For Step 4-6
    G03615605Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. US/CA: Attach the emergency handle to the wire. Fit the handle to the trim. Check the function of the emergency handle.
  7. Close the boot lid.
