Home >> Saab >> 2003 >> 9-3 SE, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Exterior Lighting (Late; 9440) >> Adjustment - Replacement >> Ignition transformer, xenon lamp >> To remove

To remove

  1. Turn the ignition key to the LOCK position.
  2. Remove the protective cover of the Xenon lamp.

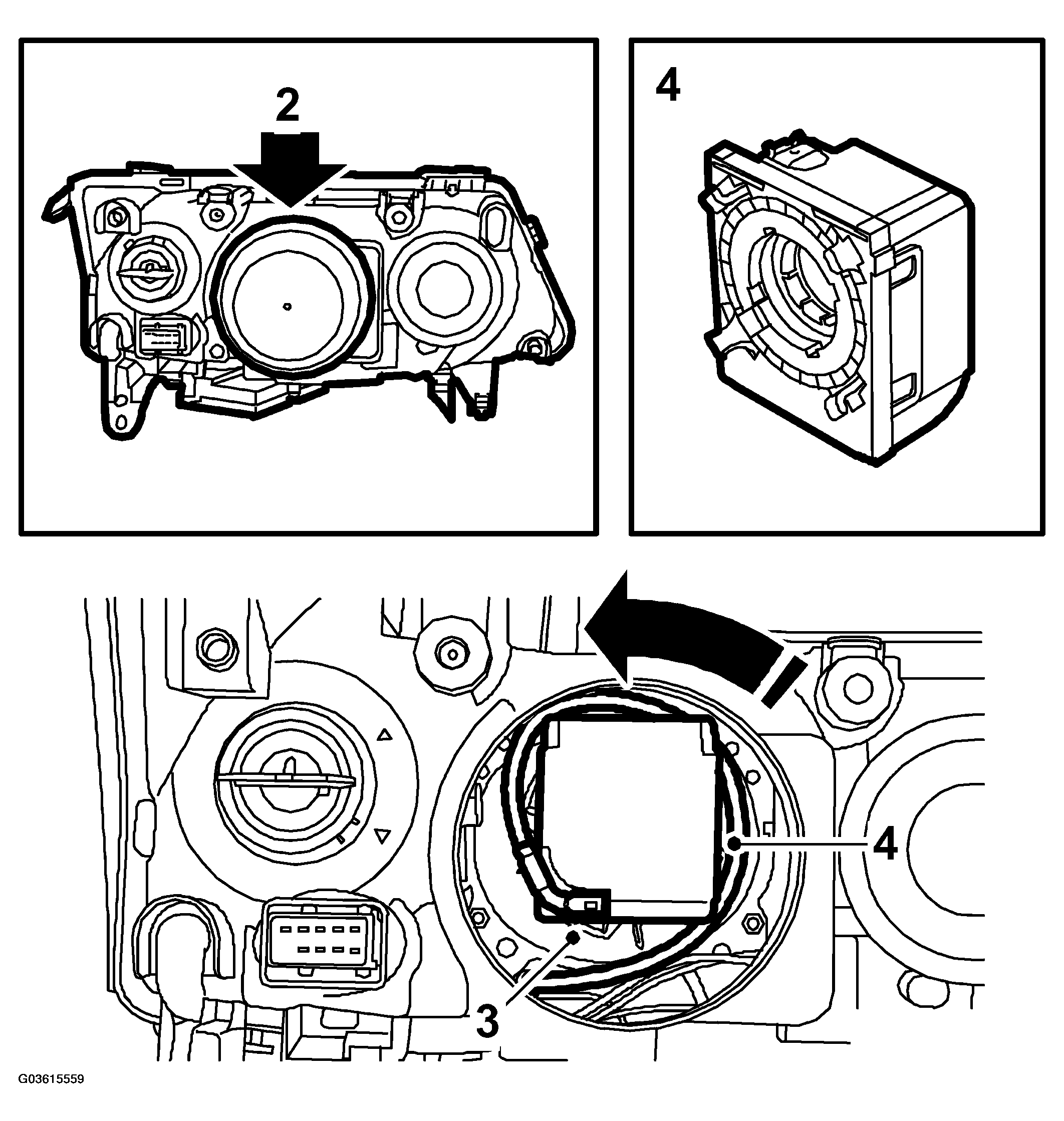

    Fig 1: Illustration For Step 2-4
    G03615559Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the ignition transformer connector.
  4. Remove the ignition transformer.
