To fit

  1. Fit the ignition transformer.

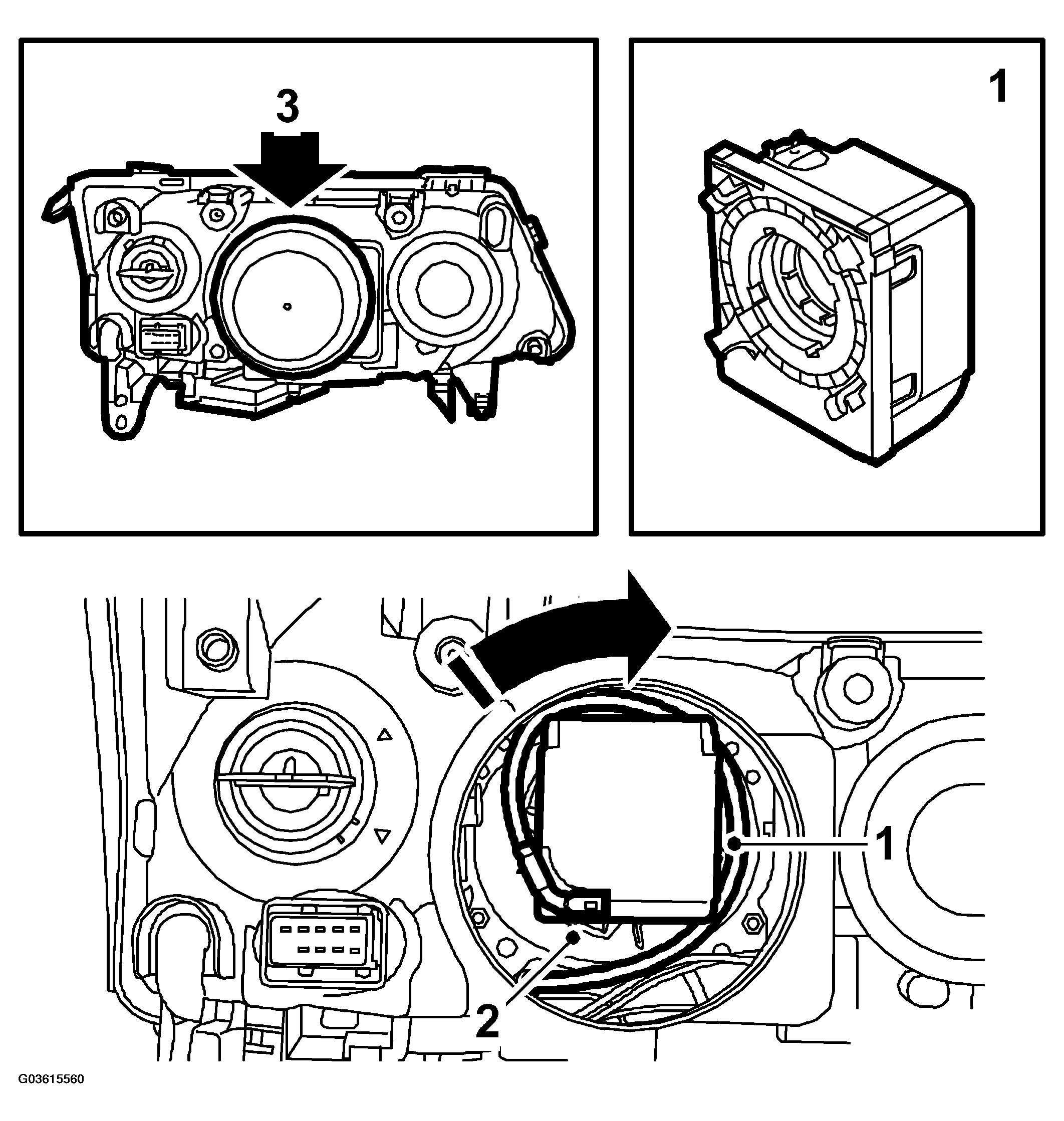

    Fig 1: Illustration For Step 1-3
    G03615560Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the ignition transformer connector.
  3. Fit the protective cover of the Xenon lamp.
