To remove

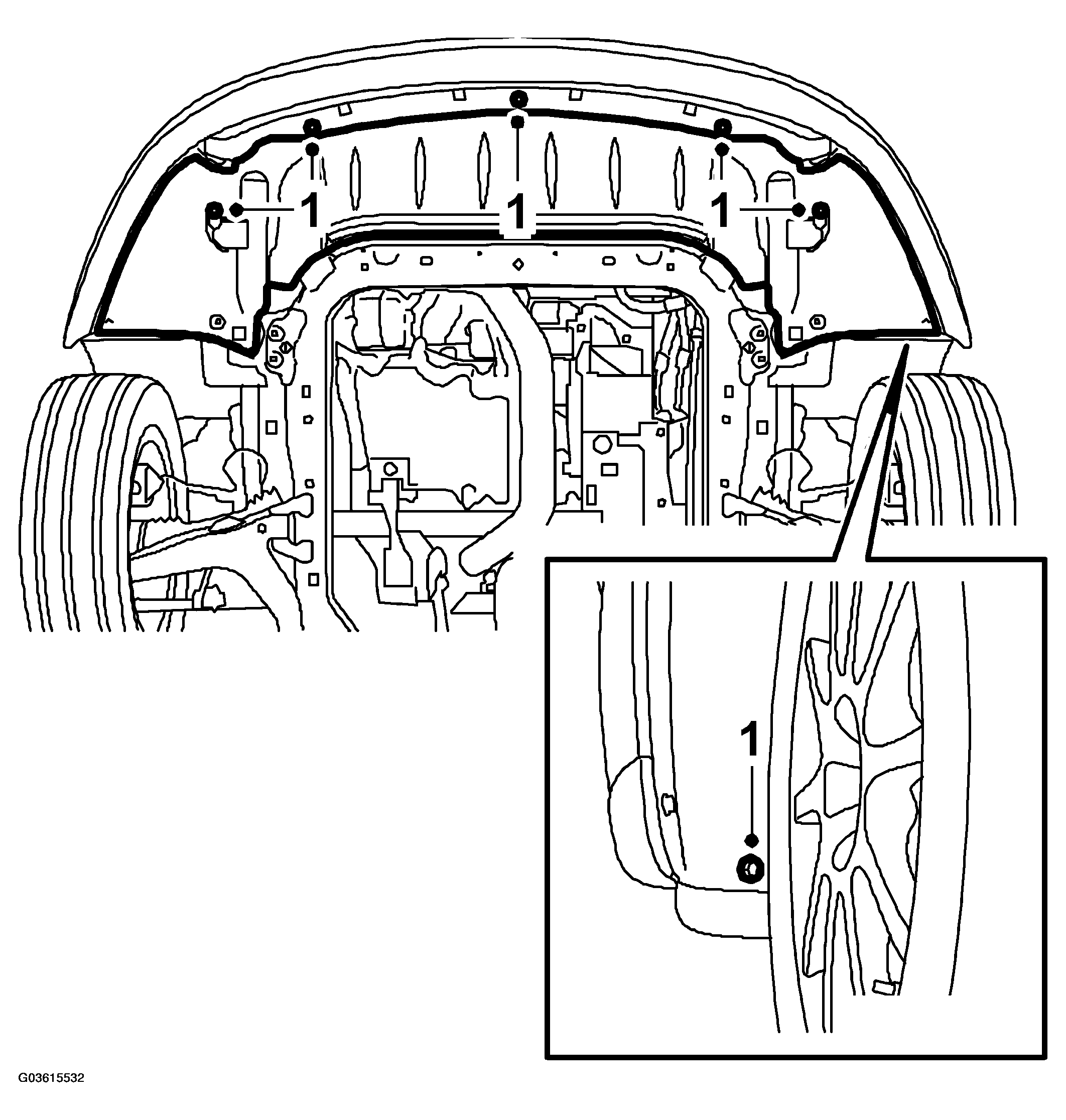

Open the bonnet. Remove the spoiler shield. Separate the connector and remove the contact piece. Release the washer hose where fitted.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

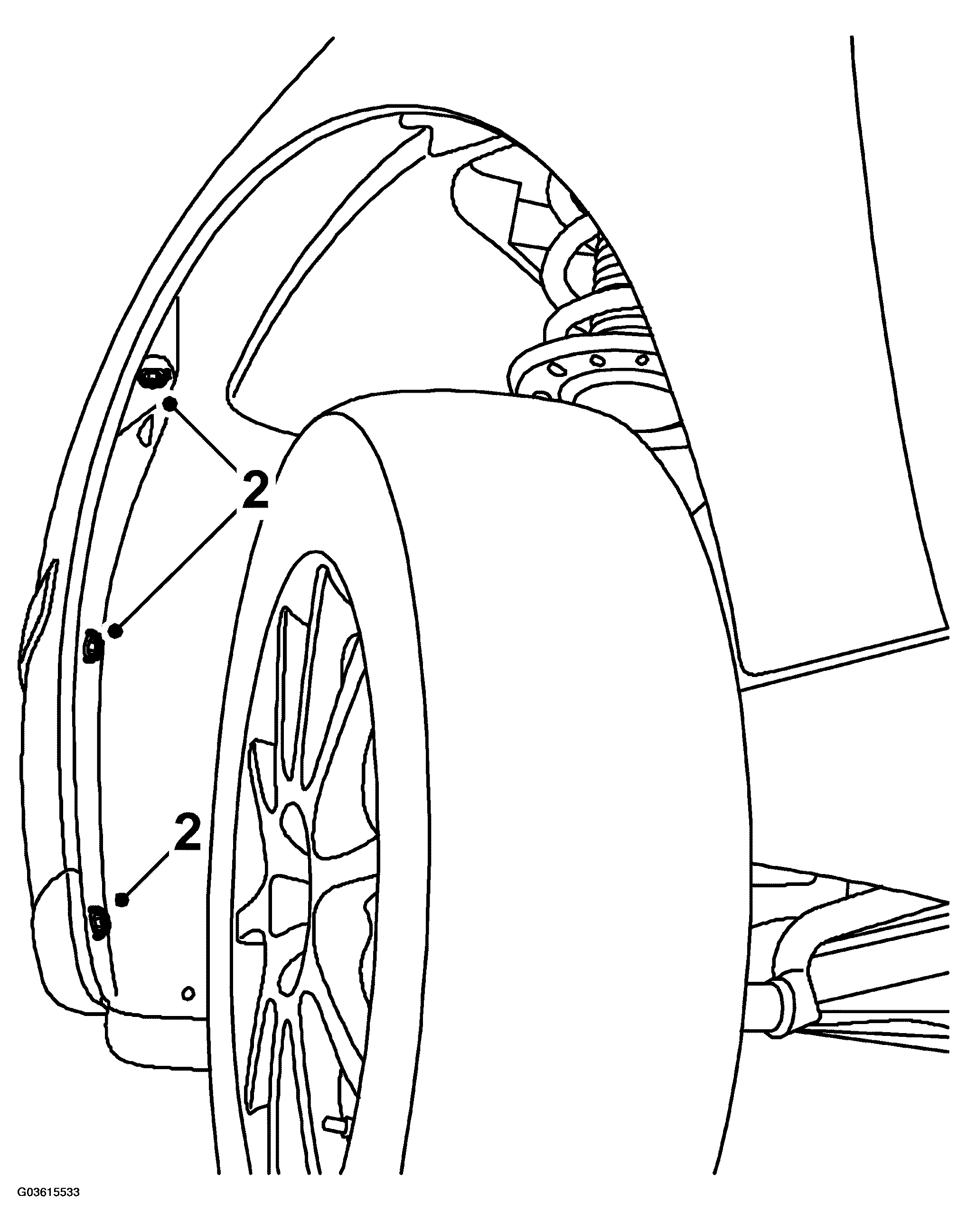

Remove the bumper casing screws to the inner wing on the side where the headlamp is to be changed.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

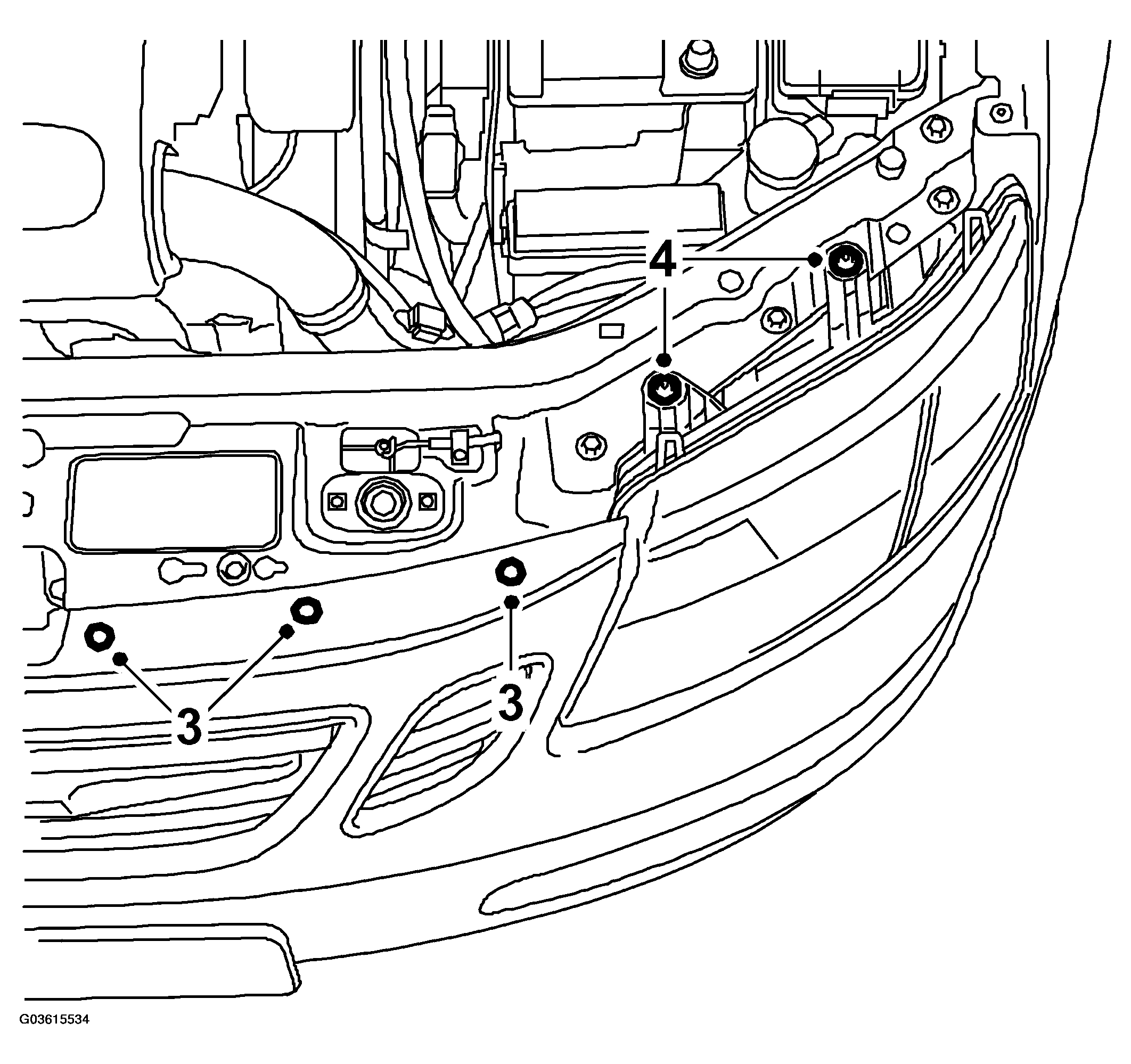

Remove the clip from the top radiator bracket.

Fig 3: Illustration For Step 3-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the front fixing bolts of the headlamp

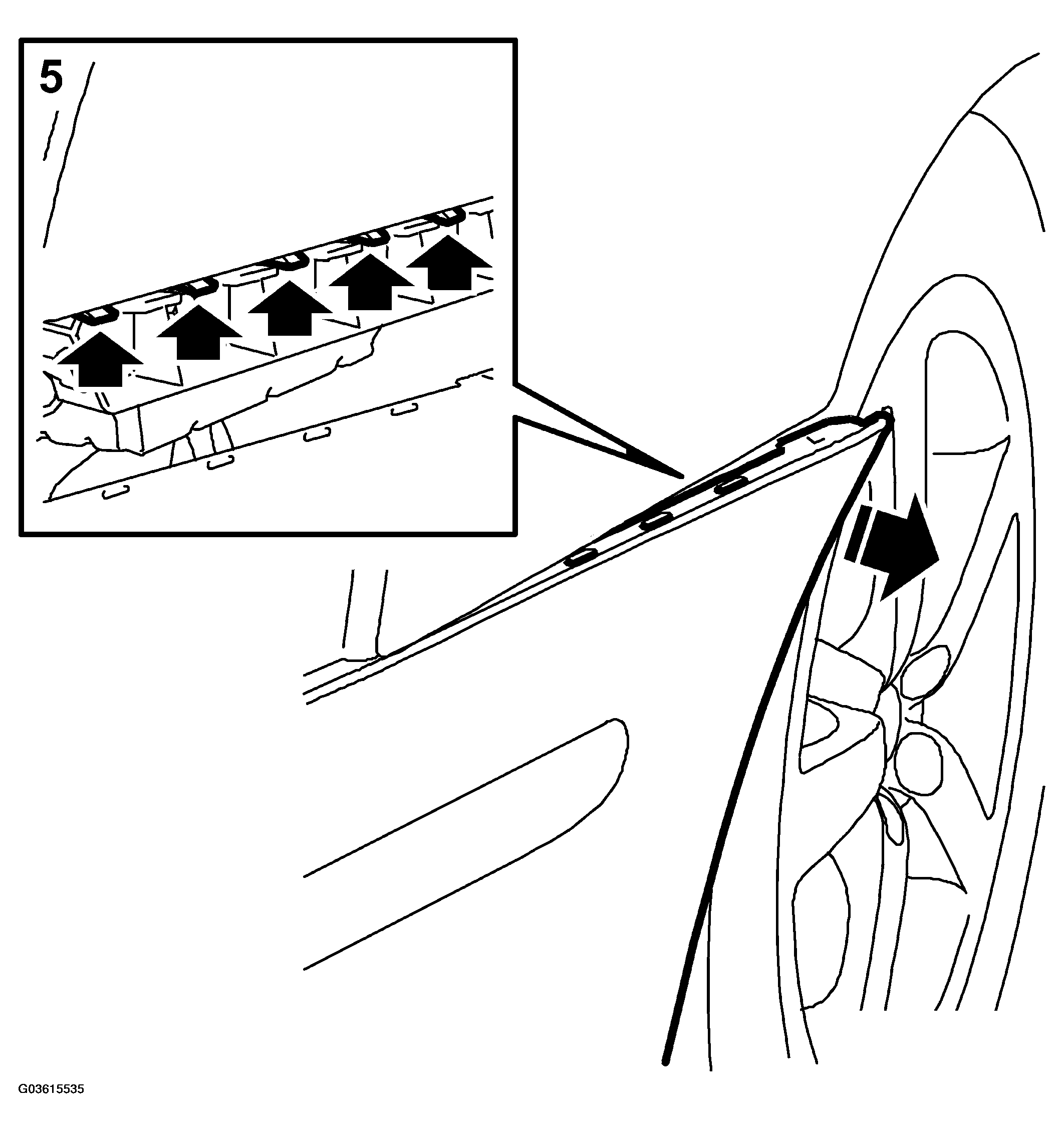

Release one side of the bumper casing from the holder.

Fig 4: Placing Casing Under Casing Holder
Courtesy of SAAB-SCANIA OF AMERICA, INC.

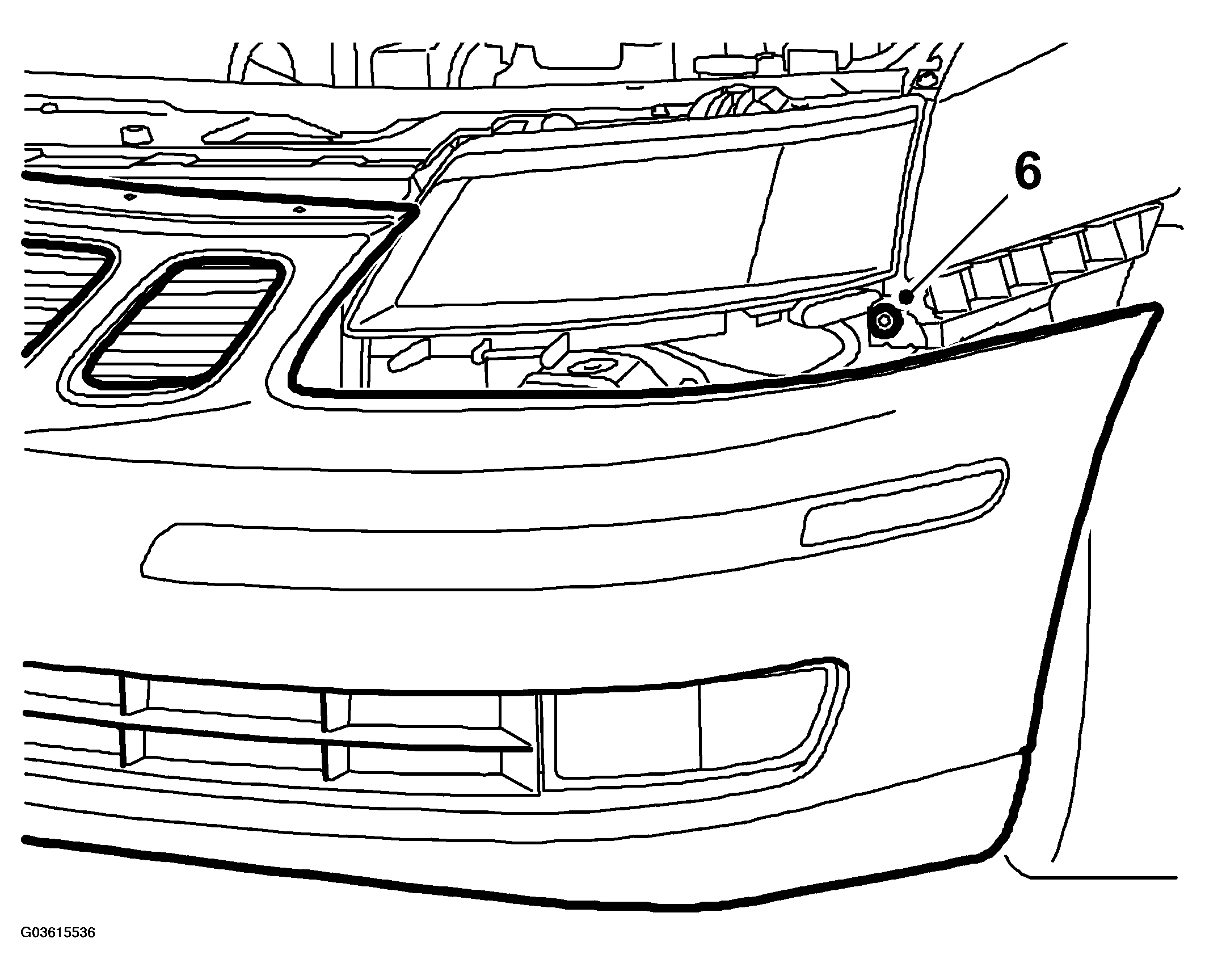

Place the casing under the casing holder. Remove the lower fixing screw for the headlamp.

Fig 5: Illustration For Step 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.

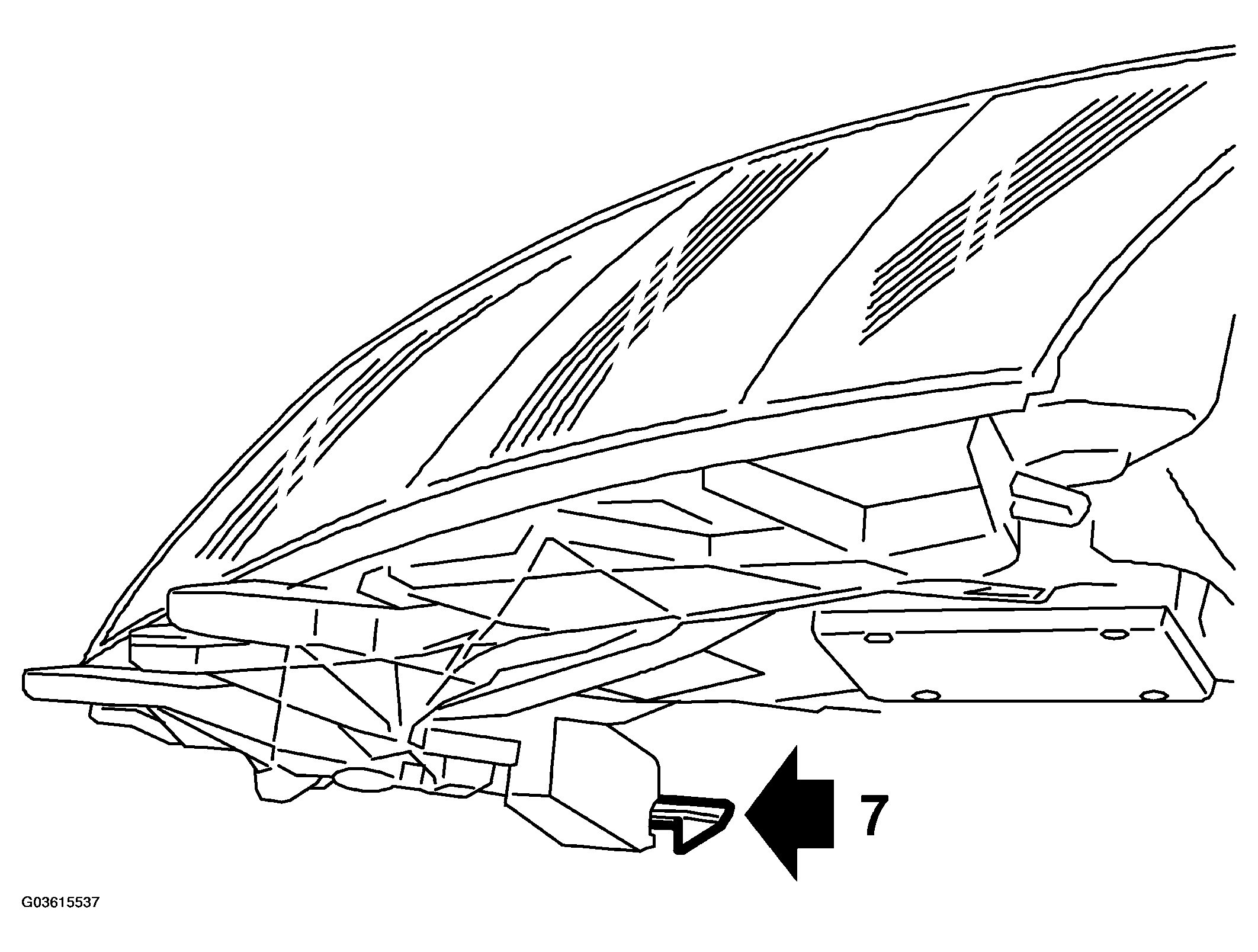

Bend the bracket up using a chisel so that it comes away from the spacer. Lift the headlamp out.

Fig 6: Illustration For Step 7
Courtesy of SAAB-SCANIA OF AMERICA, INC.

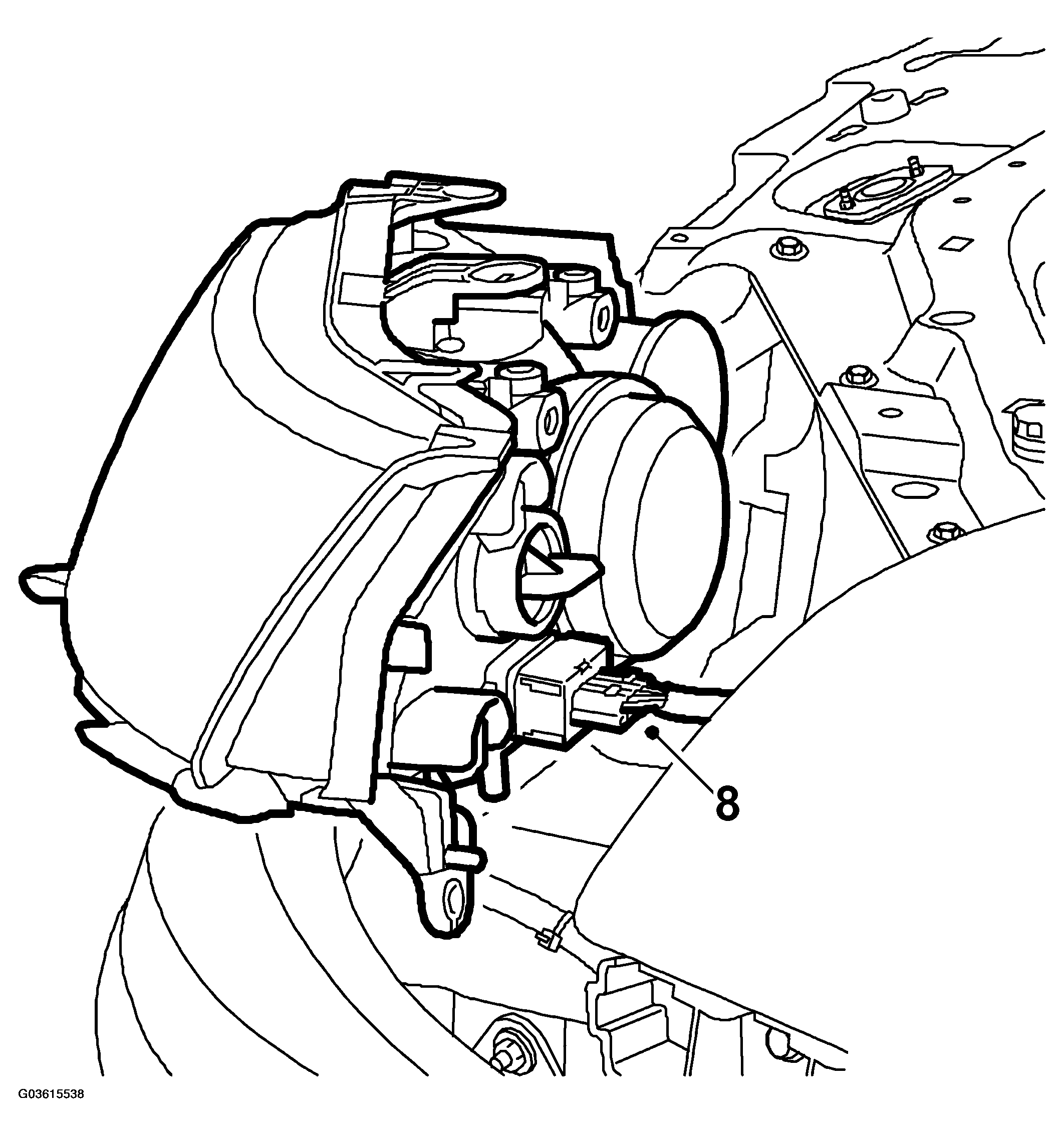

Separate the connector.

Fig 7: Illustration For Step 8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
