Home >> Saab >> 2003 >> 9-3 SE, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Exterior Lighting (Late; 9440) >> Adjustment - Replacement >> Front parking lights >> To remove

To remove

  1. LH:  Move the radiator hose to the side and remove the battery cover.

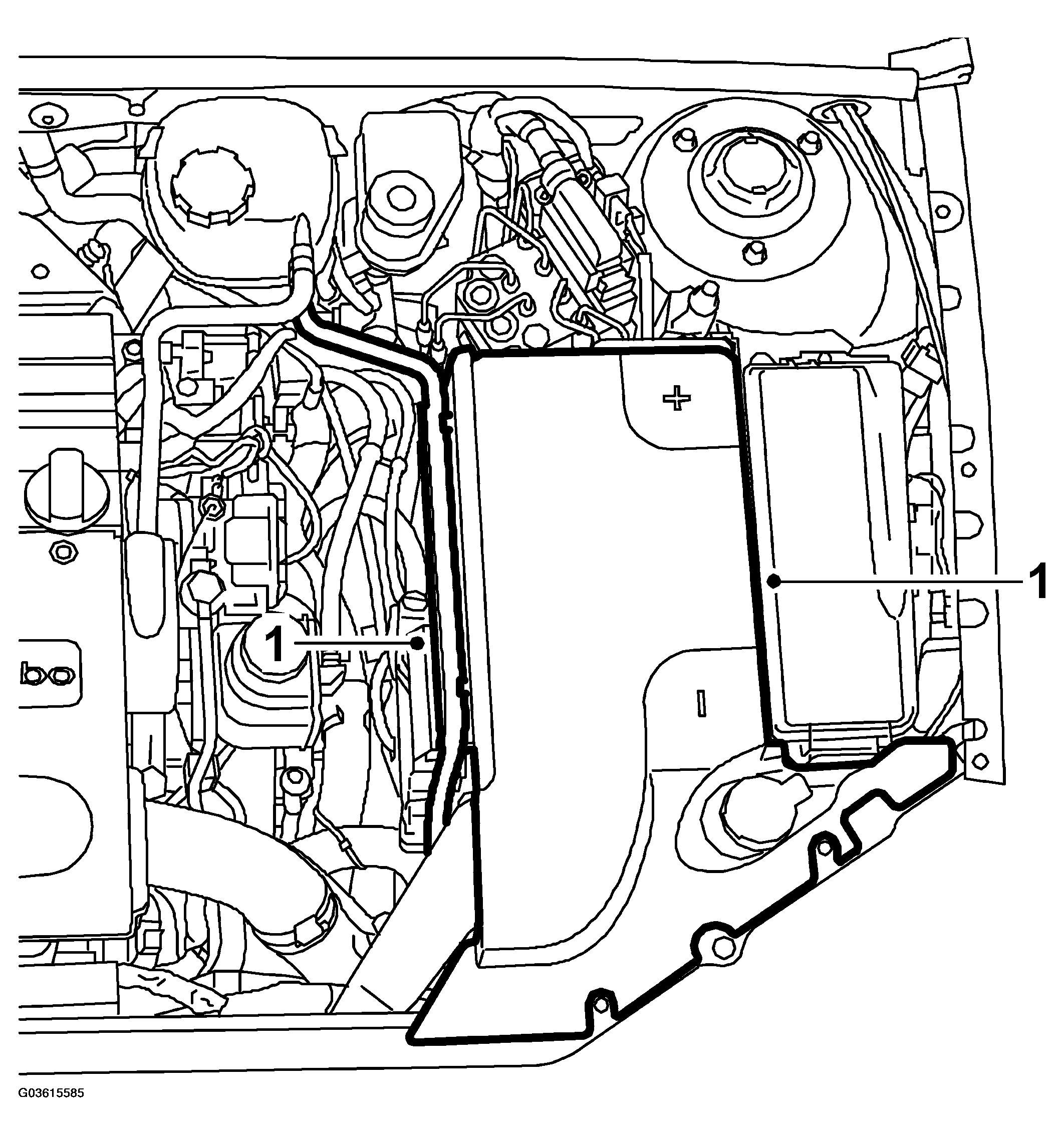

    Fig 1: Illustration For Step 1
    G03615585Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the protective cover of the headlamp.
    NOTE: Carefully pull on the reinforced parking light cables to pull out the bulb socket.

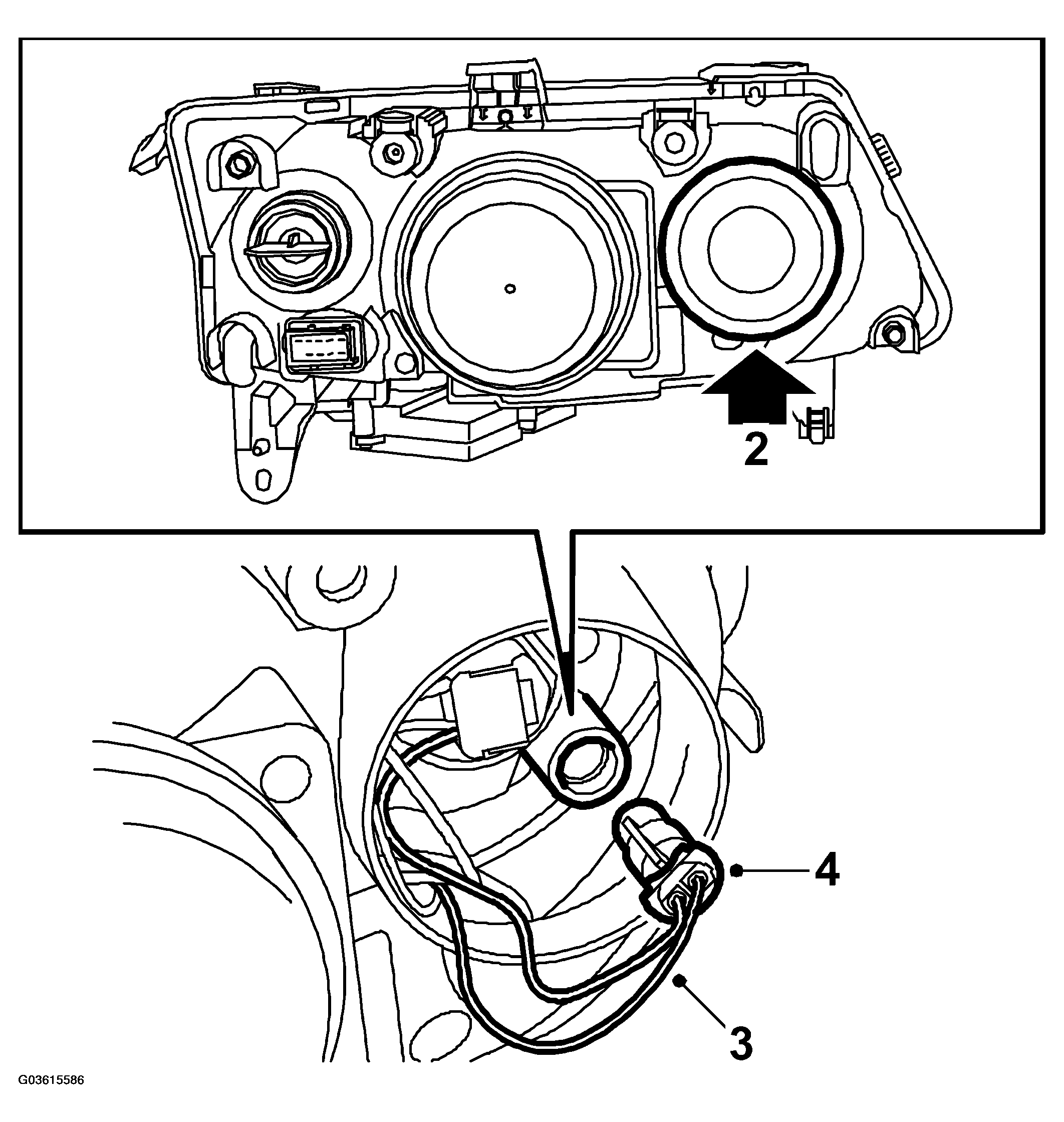

    Fig 2: Illustration For Step 2-4
    G03615586Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Pull the bulb socket out of the lamp housing.
  4. Remove the bulb from the socket.
