To fit

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.
  1. Fit the bulb into the socket.
    NOTE: To facilitate bulb fitting, look at the bulb from the front through the headlamp lens while fitting.

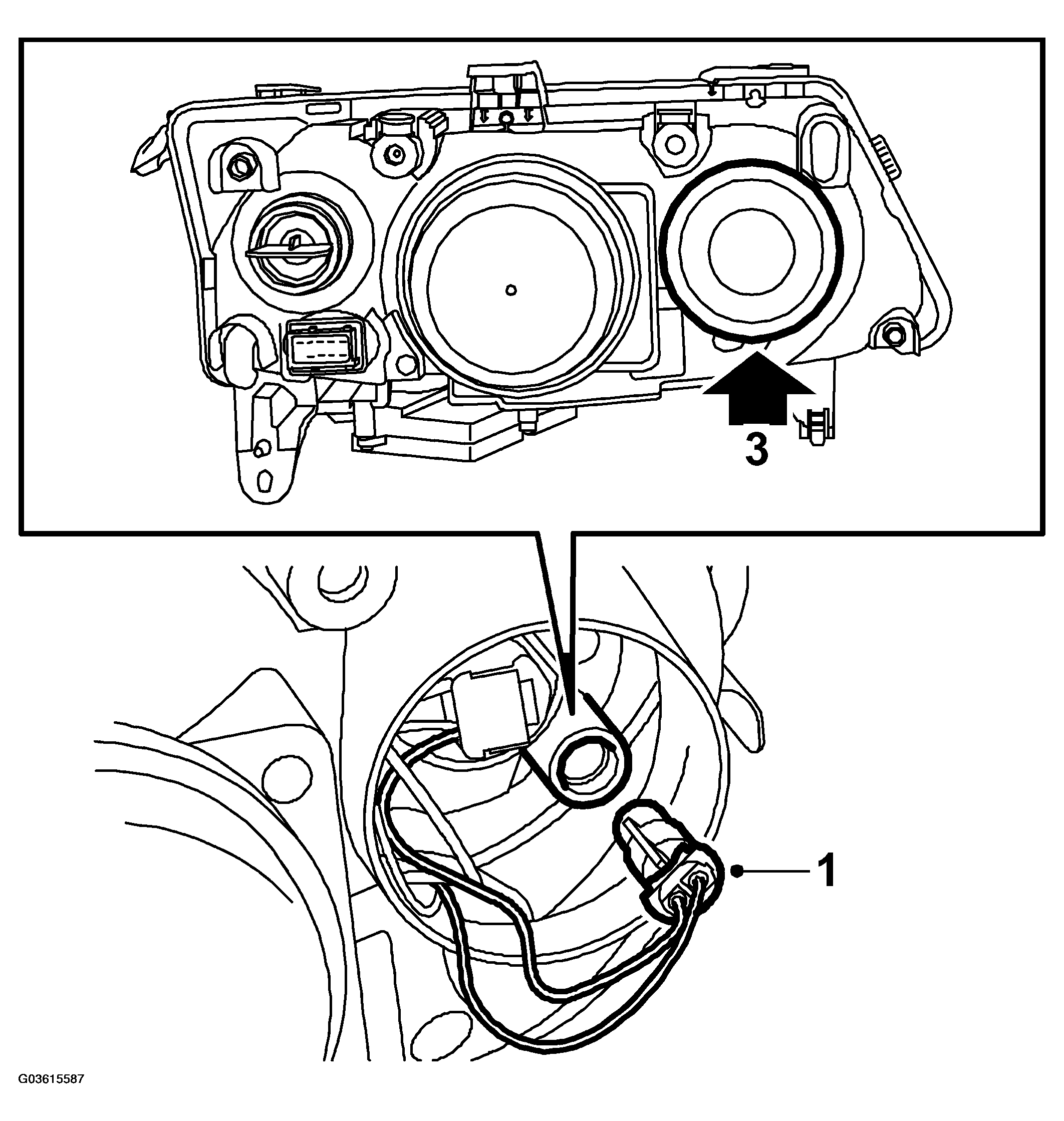

    Fig 1: Illustration For Steps 1 & 3
    G03615587Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the bulb socket in the lamp housing.
  3. Fit the protective cover of the headlamp.
  4. LH:  Fit the battery cover.

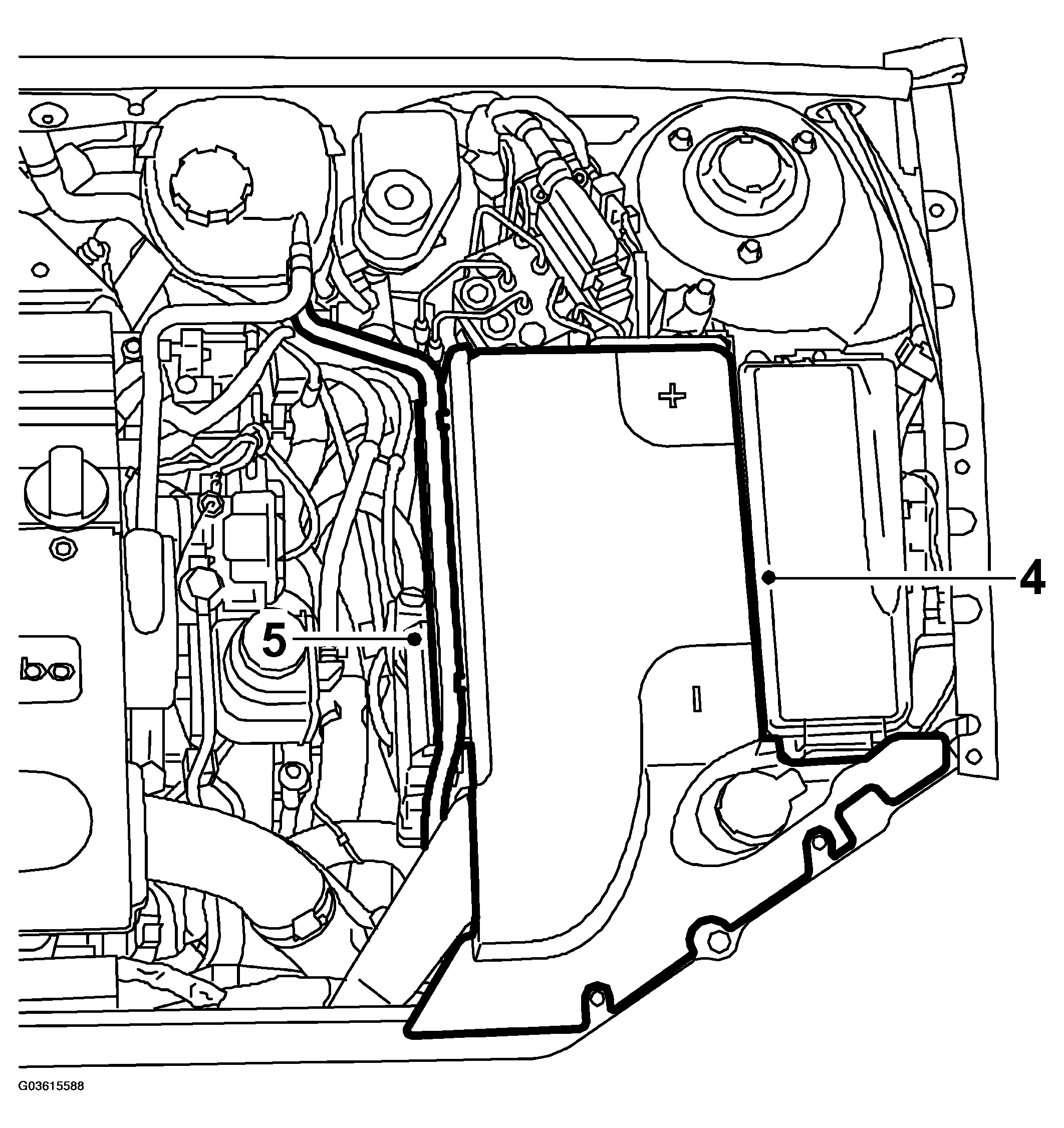

    Fig 2: Illustration For Step 4-5
    G03615588Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. LH:  Refit the radiator hose.
