Front fog light bulb: Replacing

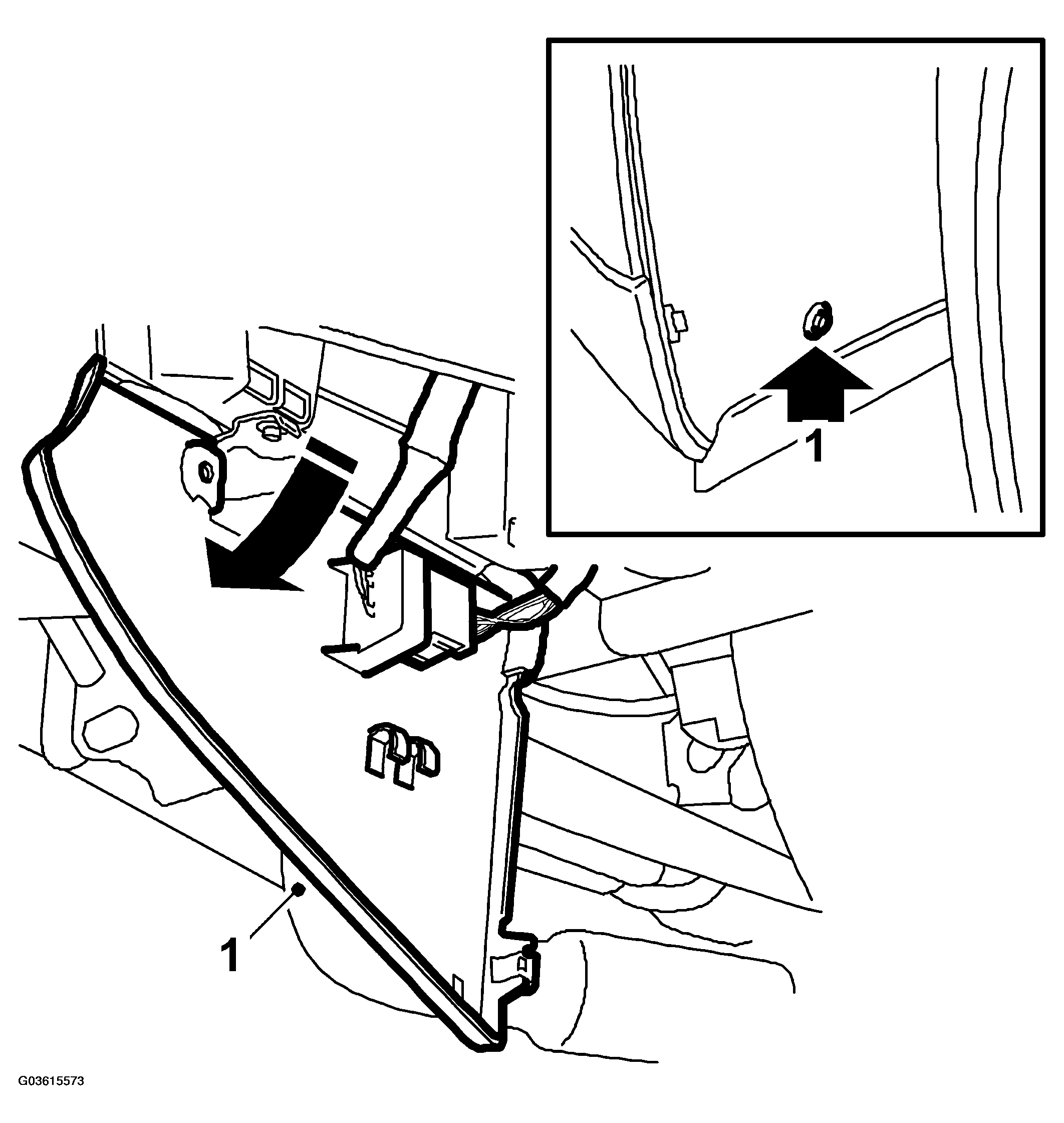

Remove the screw in the wheel housing and move the spoiler shield down.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

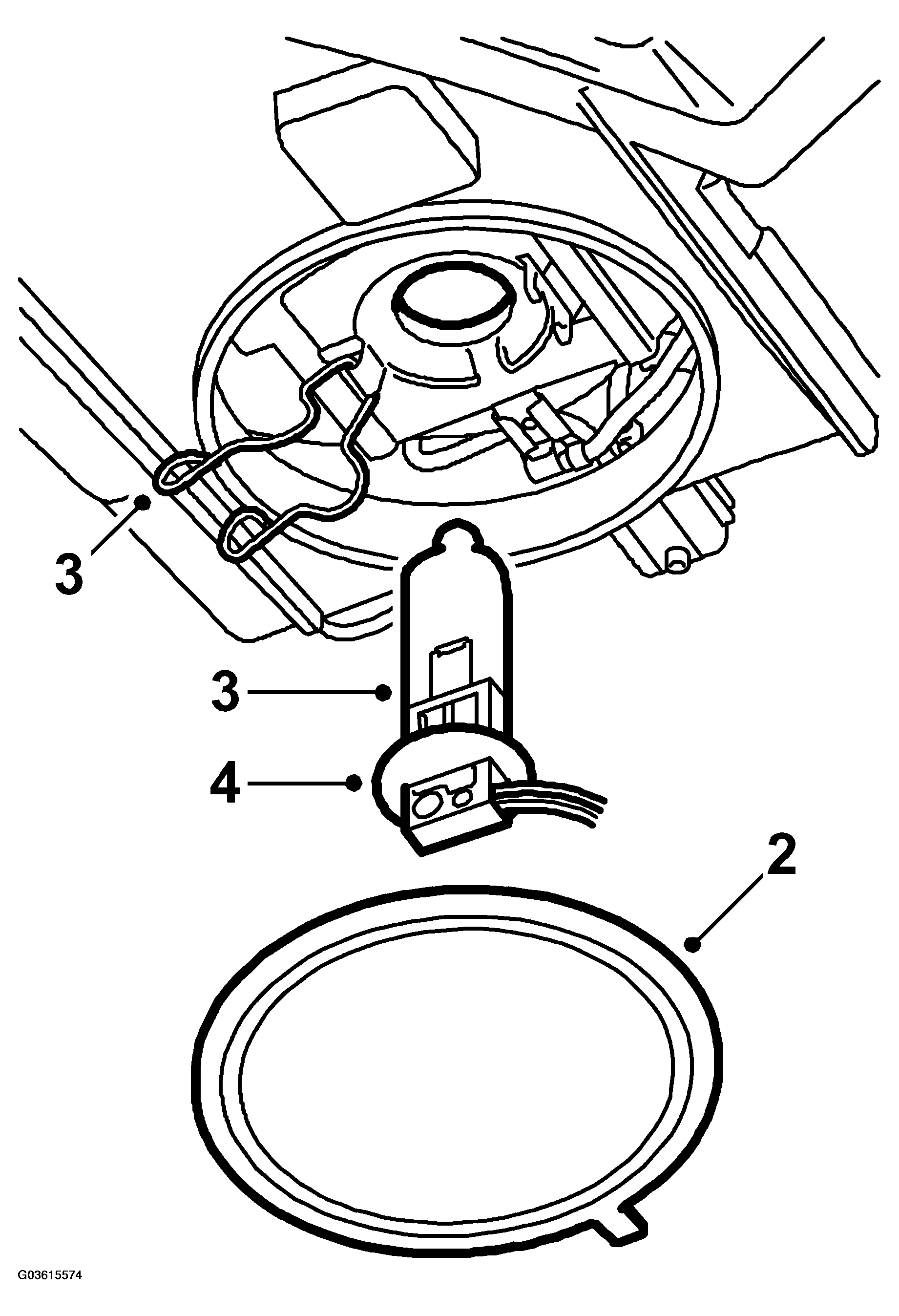

Remove the protective cover of the lamp.

Fig 2: Illustration For Step 2-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Loosen the bulb by unhooking the lock clamps.
Pull out the lamp cable and unplug the connector.
IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.
Replace the bulb and plug in the connector.

Fig 3: Illustration For Step 5-7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Secure the bulb with the lock clamps.
Fit the protective cover of the lamp.
Reposition the spoiler shield and fit the screw in the wheel housing.

Fig 4: Illustration For Step 8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
