To remove

  1. LH:  Move the radiator hose to the side and remove the battery cover.

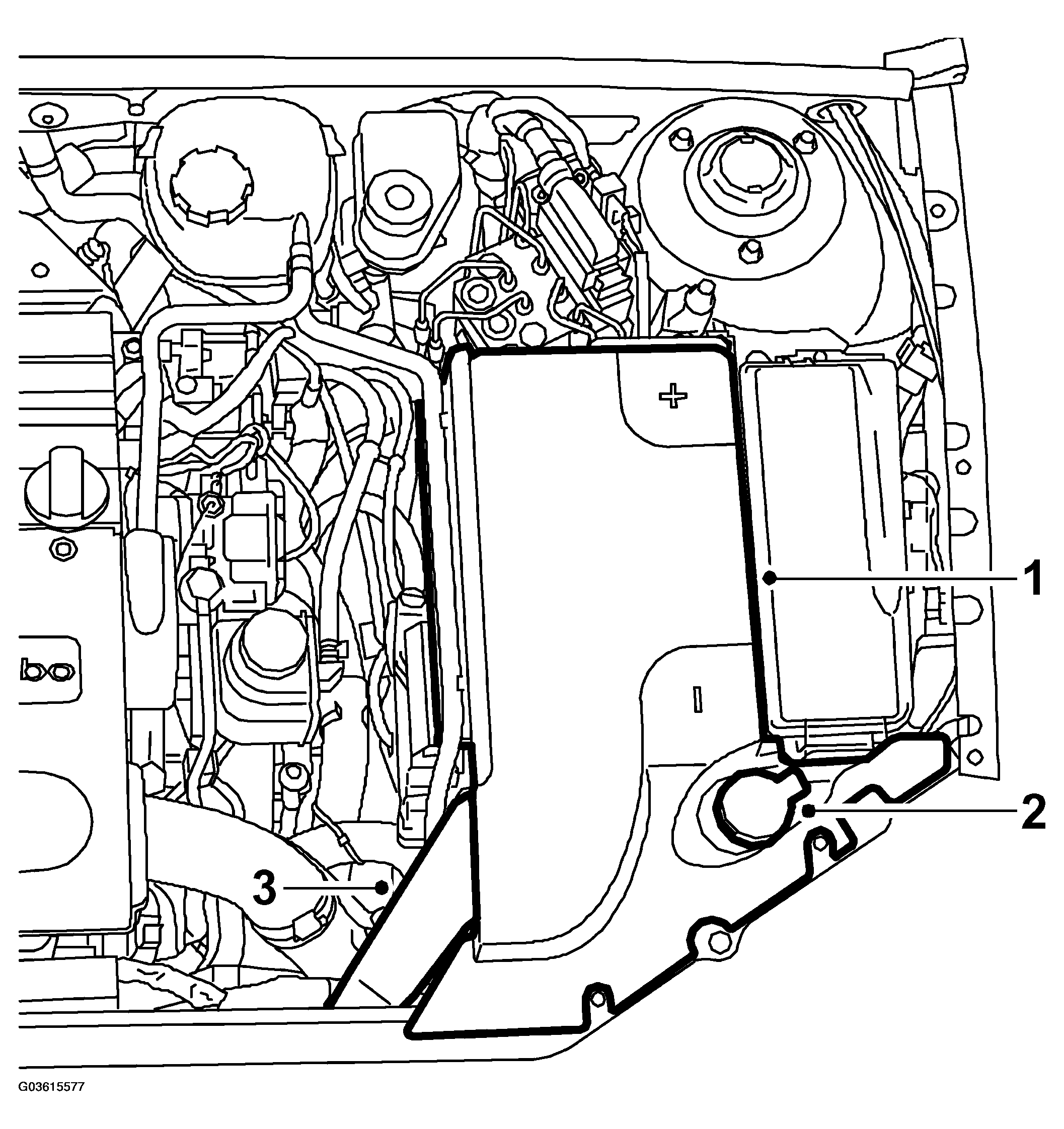

    Fig 1: Illustration For Step 1-3
    G03615577Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. LH:  Remove the filler pipe of the washer fluid reservoir.
  3. LH:  Remove the air inlet pipe from the lower battery cover.
  4. Remove the protective cover of the headlamp.

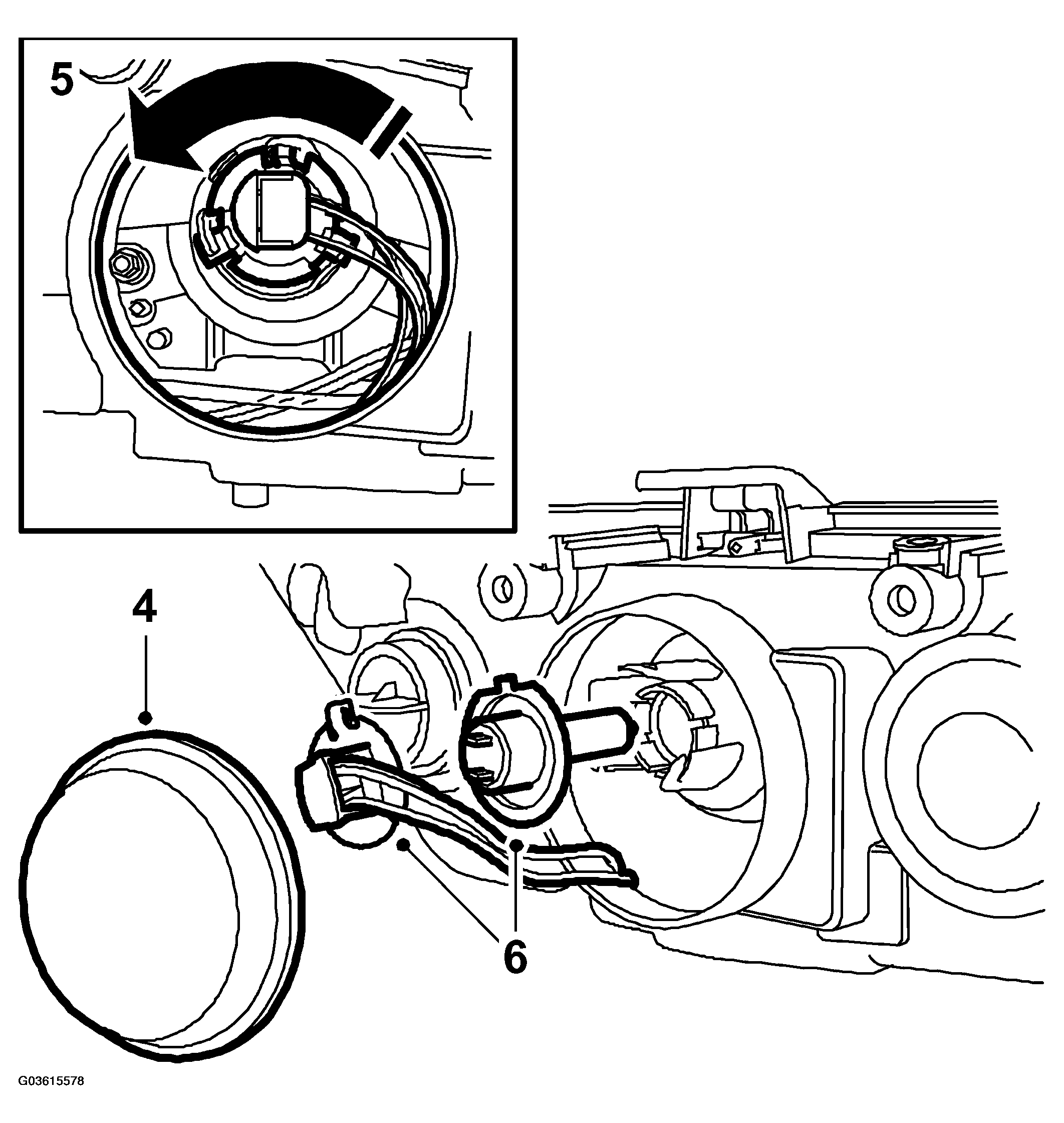

    Fig 2: Illustration For Step 4-6
    G03615578Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the bulb socket by turning it anti-clockwise slightly and pulling it out of the reflector.
  6. Remove the bulb from the bulb socket.
