Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Component Location >> SID control panel (737) >> Location:

SID control panel (737): Location:

On instrument panel next to main instrument unit

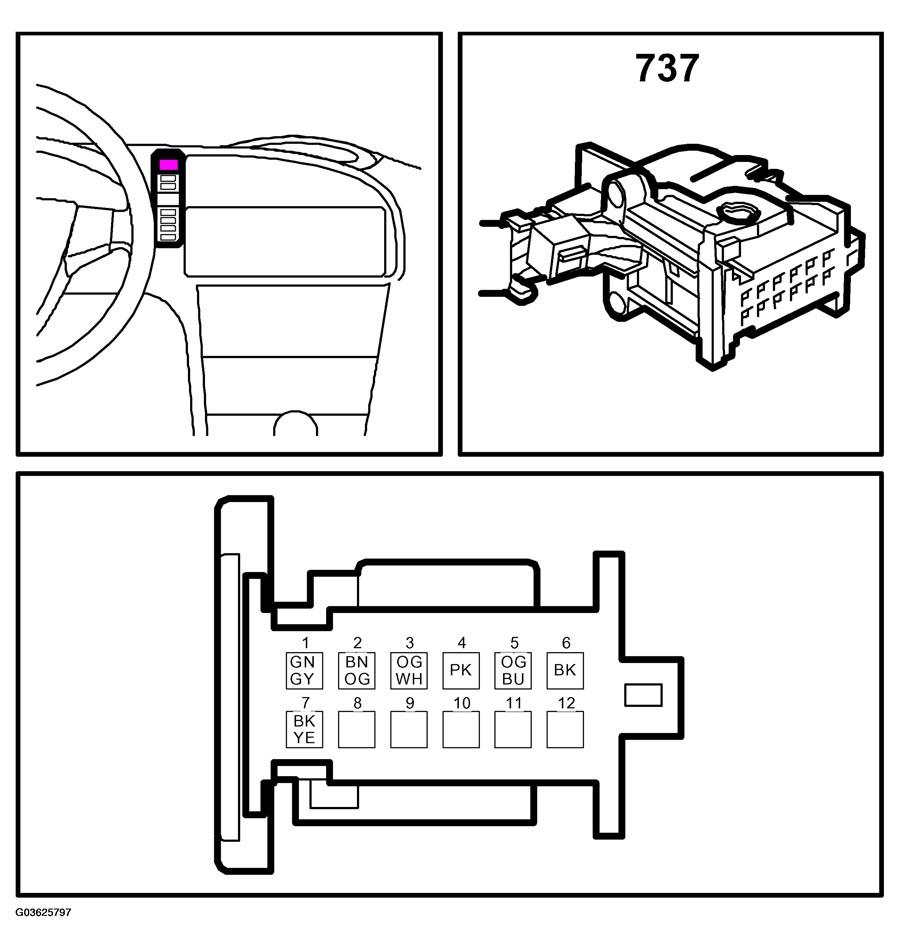

Fig 1: View Of SID Control Panel Connector Pin-Outs

G03625797

Courtesy of SAAB-SCANIA OF AMERICA, INC.
