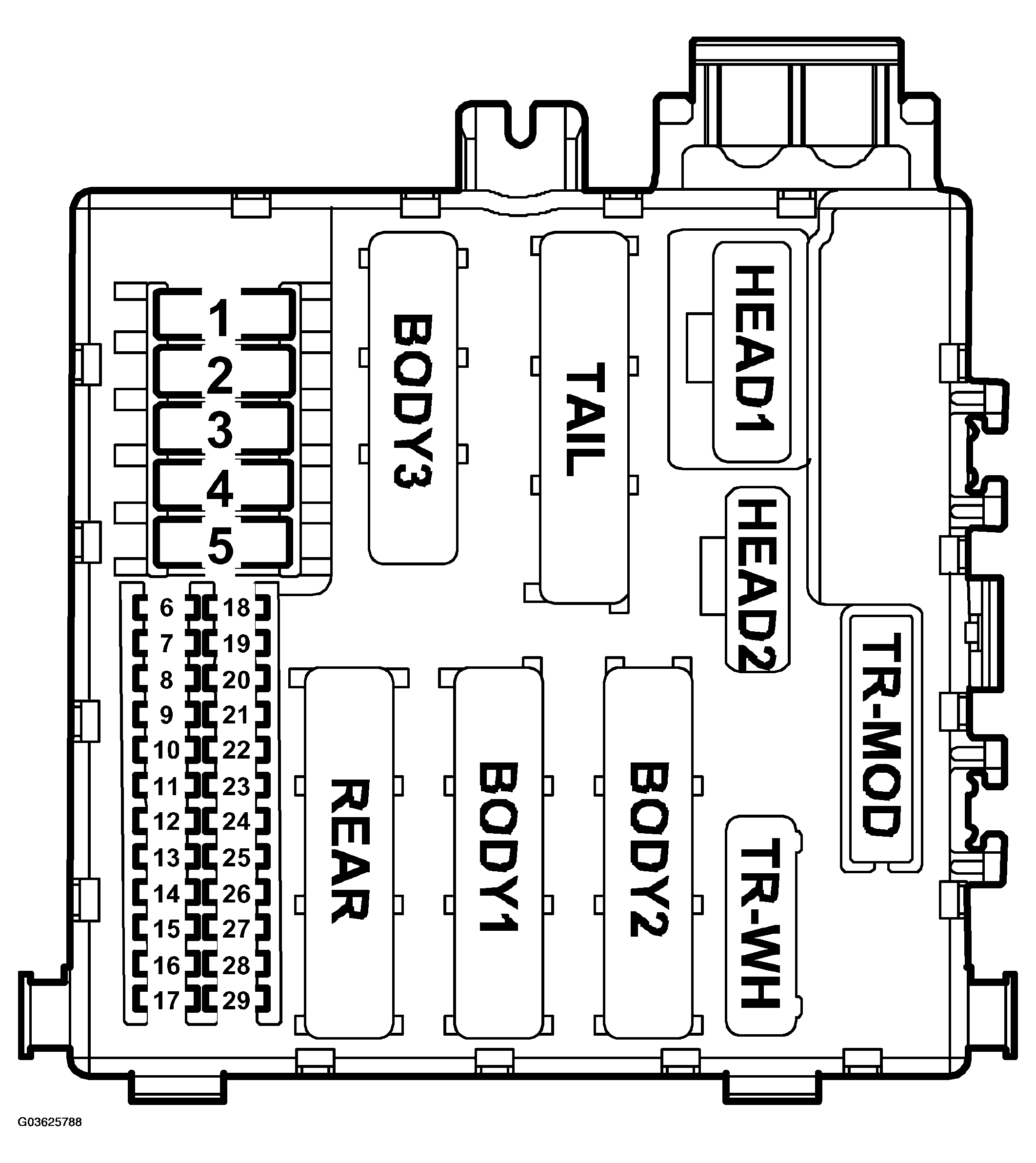

Rear electrical centre 701 (REC): Fuses
The electrical centre can contain a greater number of fuses than those listed below. In such cases, these are not connected to a wiring harness.
ELECTRICAL CENTRE FUSES FUNCTION DESCRIPTION
| No | Amp | Type | Function |
|---|---|---|---|
| 1 | -- | ||
| 2 | -- | ||
| 3 | -- | ||
| 4 | 40 | +30 | Electrically adjustable seat without memory |
| 5 | 40 | +30 | Electrically heated rear window |
| 6 | 30 | +30 | Rear left door control module |
| 7 | 30 | +30 | Rear right door control module |
| 8 | 20 | +30 | Connection, trailer |
| 9 | -- | ||
| 10 | 30 | High-level brake light Trailer lighting Luggage compartment illumination Left rear lighting brake lights Right rear lighting: Direction indicators taillights Reversing lights |
|
| 11 | -- | ||
| 12 | -- | ||
| 13 | -- | ||
| 14 | -- | ||
| 15 | 15 | +30 | Left seat heating |
| 16 | 15 | +30 | Right seat heating |
| 17 | 7,5 | +15 | Tyre pressure monitoring module Remote control garage opening Compass ADM control module Rain sensor |
| 18 | 15 | +30 | Sunroof |
| 19 | 7,5 | +30 | Telematic module |
| 20 | 7,5 | +30 | DVD |
| 21 | 7,5 | +30 | Rear door control module SPA |
| 22 | 30 | +30 | Rear amplifier |
| 23 | -- | ||
| 24 | 10 | +30 | Anti-theft alarm siren Anti-theft alarm sensor |
| 25 | 30 | +30 | Electrically adjustable driver's seat with memory control module |
| 26 | 30 | -- | |
| 27 | -- | ||
| 28 | -- | ||
| 29 | -- |
