Rear electrical centre 701 (REC): Connect

The electrical centre is fed with a +30 supply from the engine bay electrical centre (342) and grounded to grounding points G3 and G29. The electrical centre is connected to the wiring harness via 7 connectors:

1. Body 1 (in diagram = B1) to main wiring harness

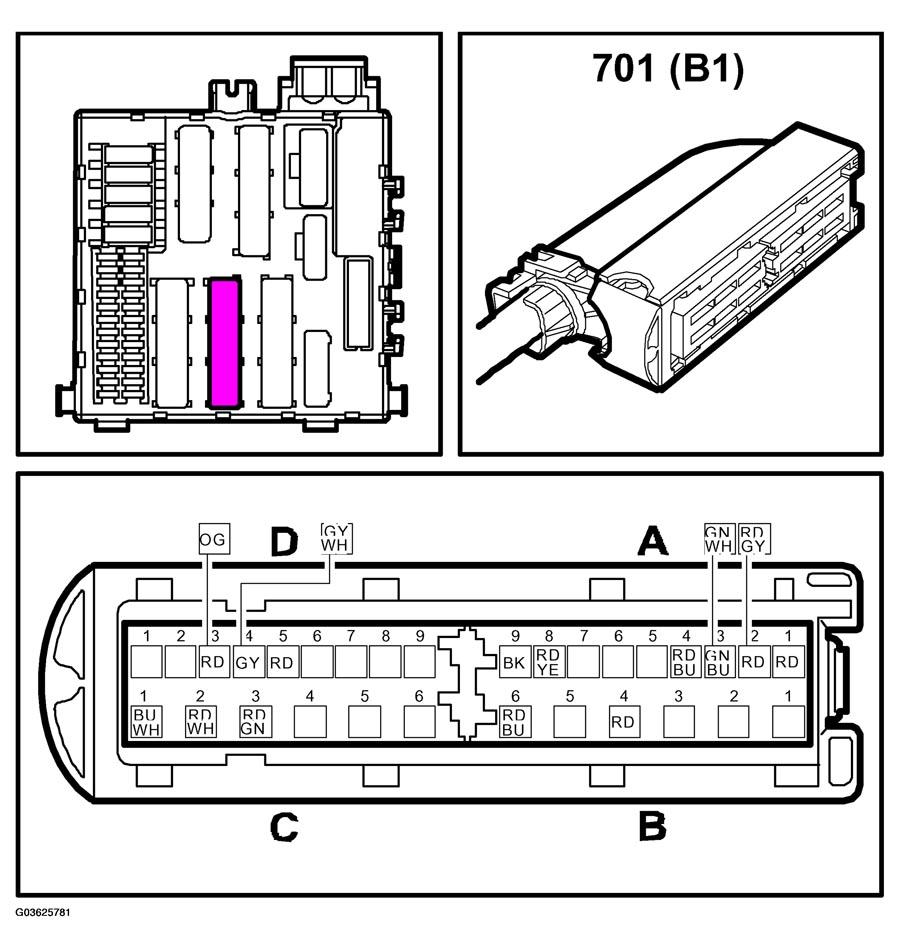

   Fig 1: View Of Body 1 Connector Pin-Outs

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Body 2 (in diagram = B2) to main wiring harness

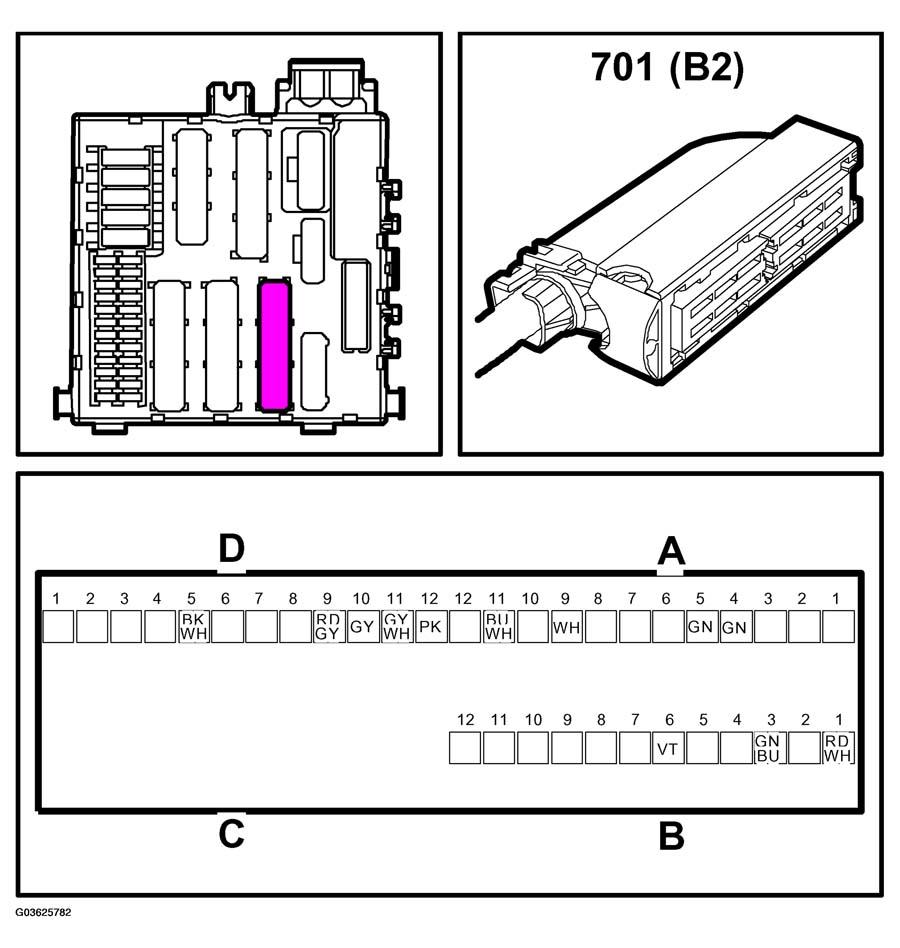

   Fig 2: View Of Body 2 Connector Pin-Outs

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Body 3 (in diagram = B3) to main wiring harness

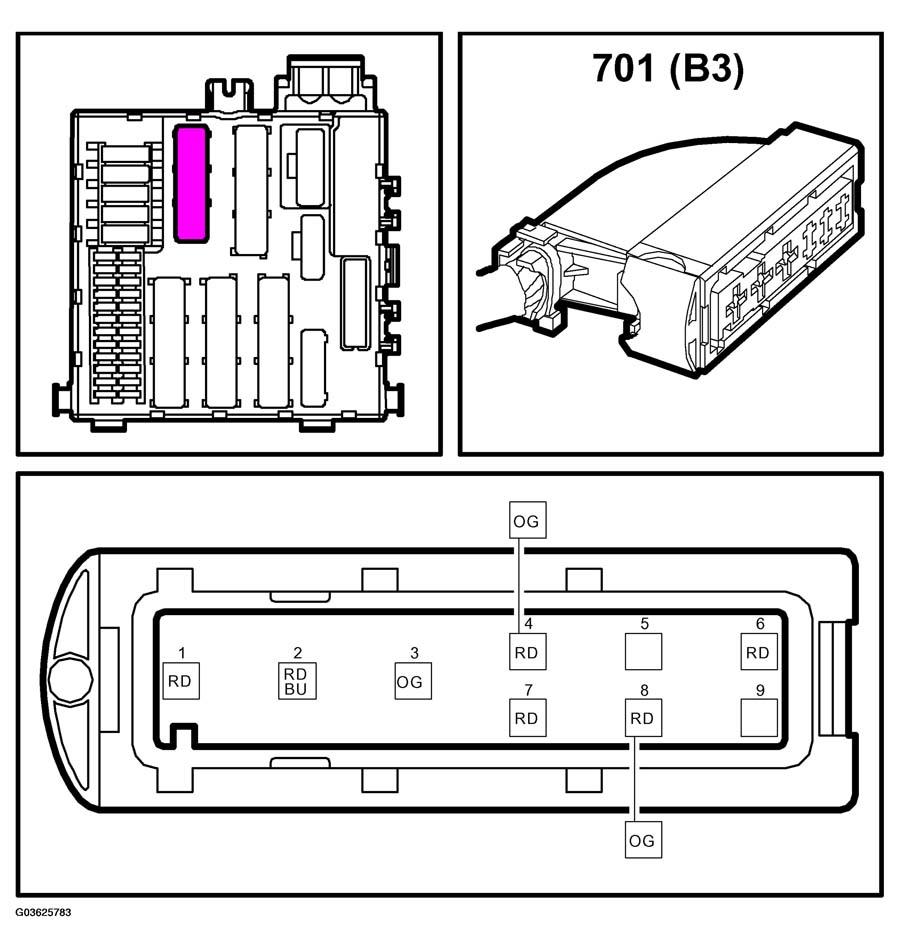

   Fig 3: View Of Body 3 Connector Pin-Outs

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Head 1 (in diagram = H1) to roof wiring harness

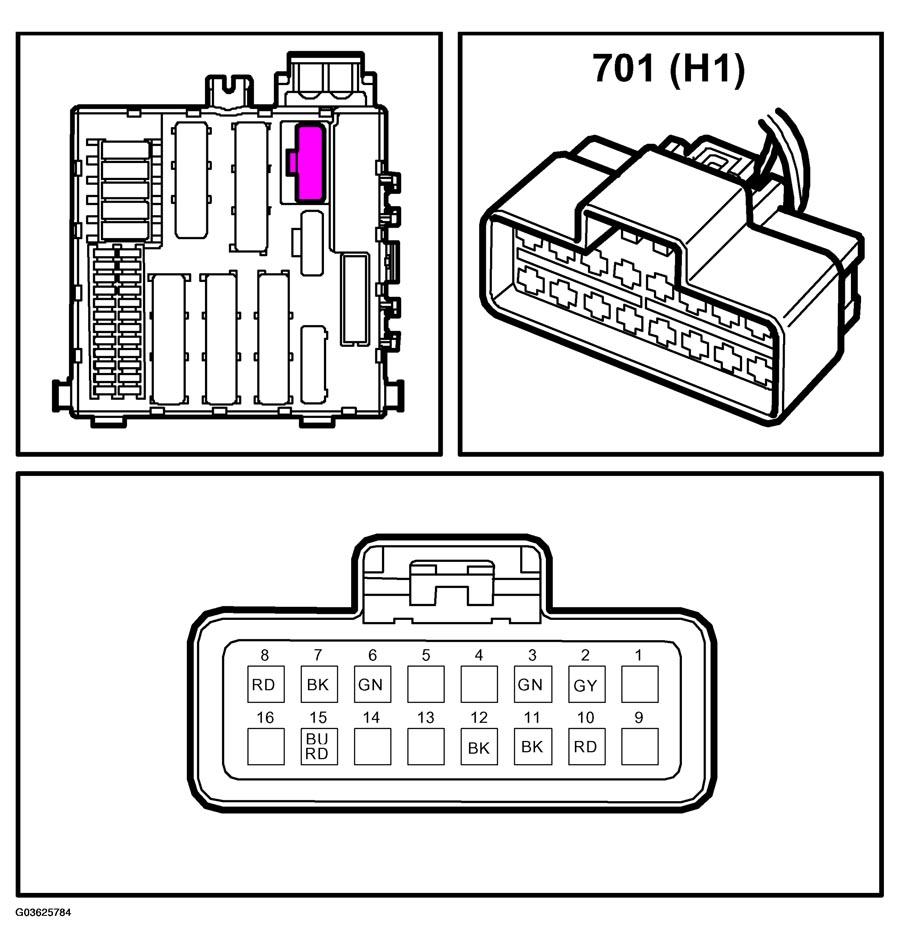

   Fig 4: View Of Head 1 Connector Pin-Outs

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
5. Head 2 (in diagram = H2) to roof wiring harness

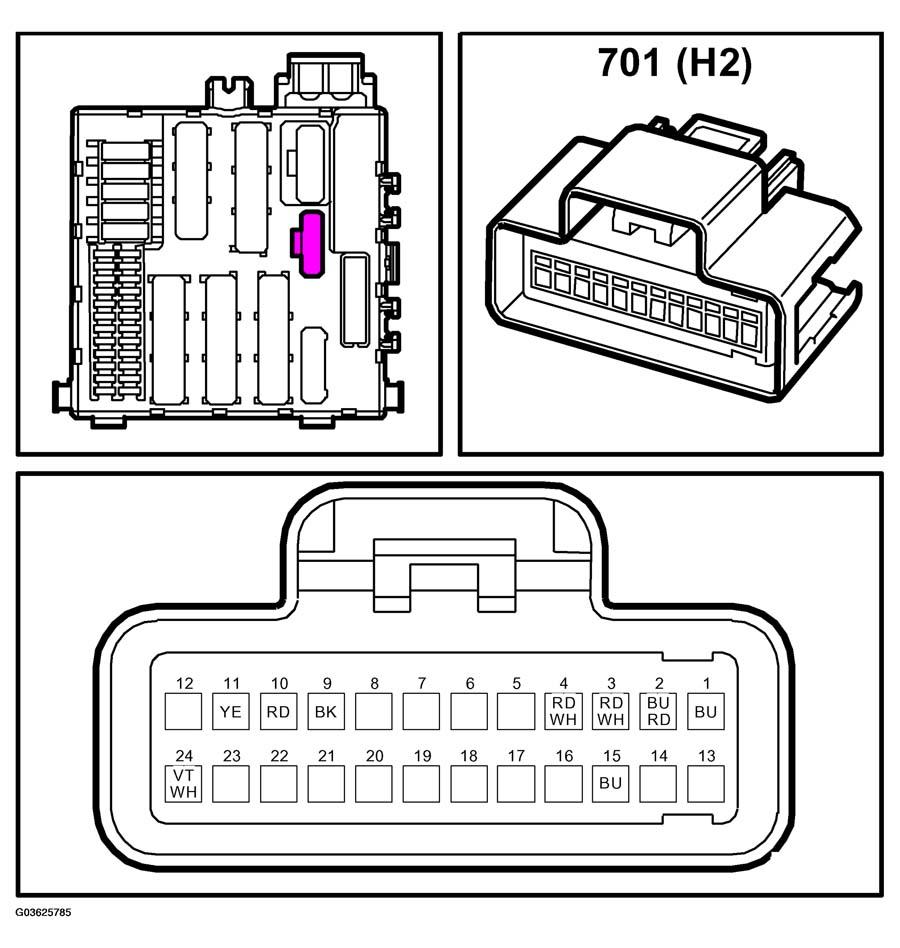

   Fig 5: View Of Head 2 Connector Pin-Outs

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
6. Rear (in diagram = R) to rear wiring harness

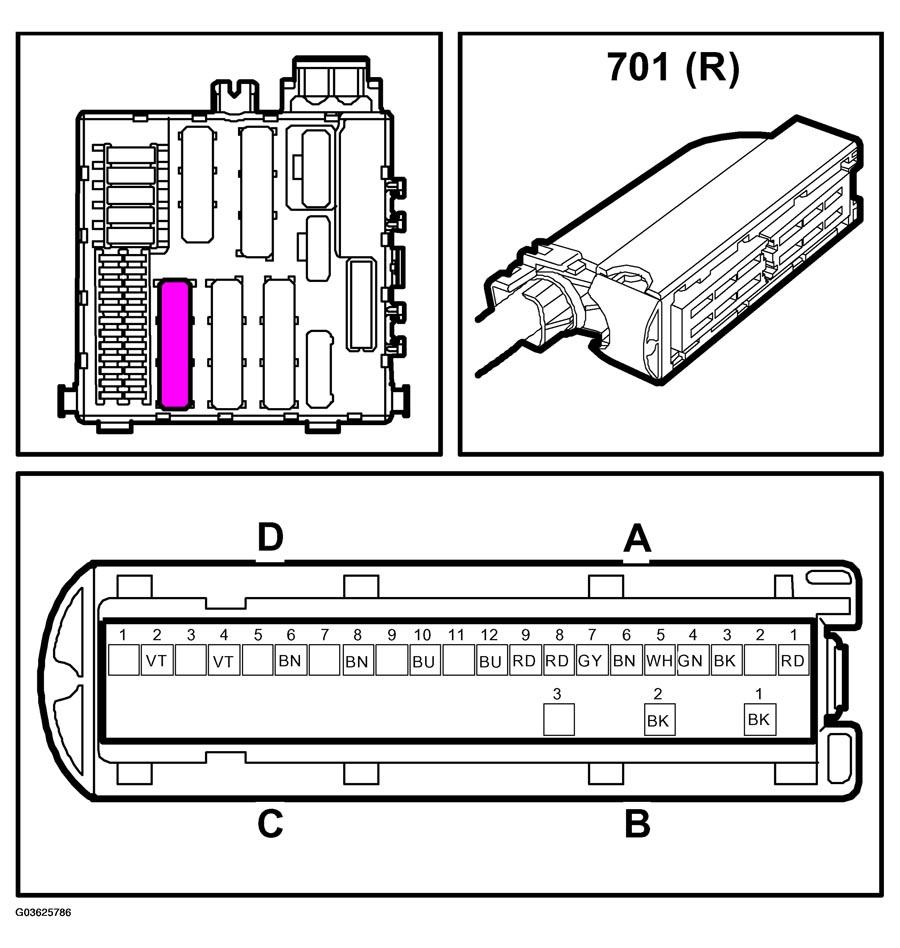

   Fig 6: View Of Rear Connector Pin-Outs

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
7. Tail (in diagram = T) to parcel shelf wiring harness

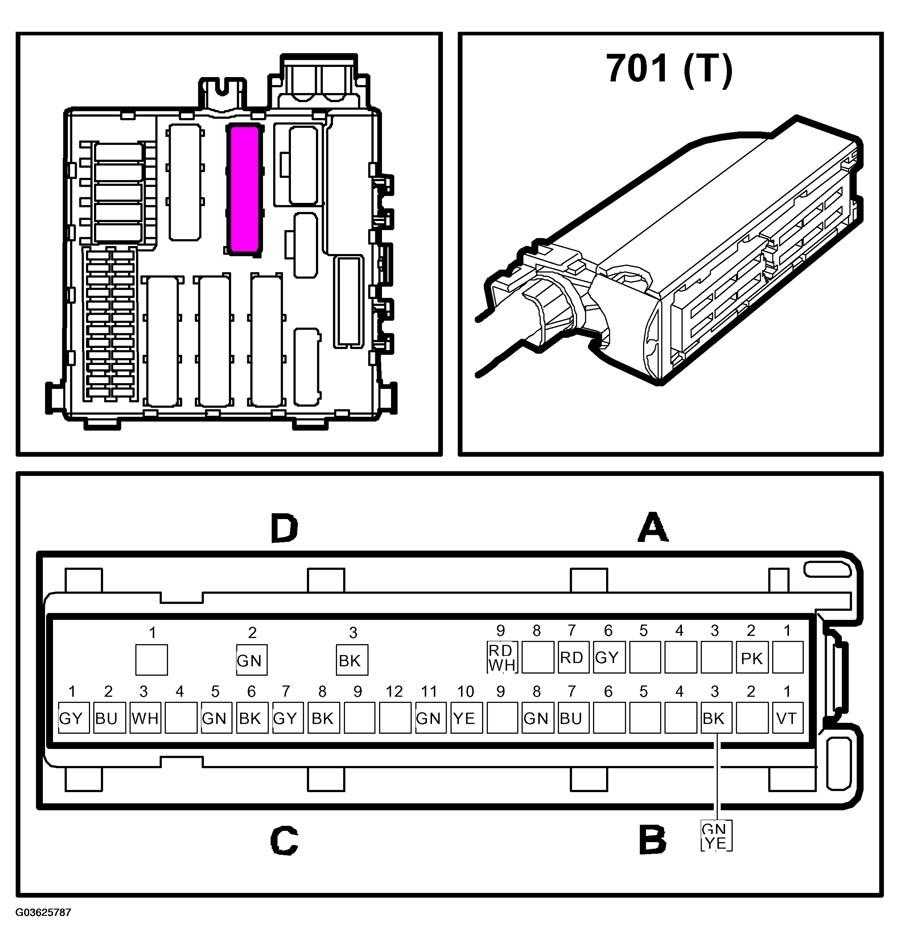

   Fig 7: View Of Tail Connector Pin-Outs

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

   The connectors for the main, parcel shelf and rear wiring harnesses each comprise four connectors, which are named A, B, C and D in the wiring diagrams, for example B1-B.

   The TR-WH connector is used for a trailer connector. In some cases a special module, TR-MOD, is required.

   The electrical centre contains the following power circuits:

   +30 power supply, rear electrical centre

   +15 power supply, rear electrical centre
