Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Component Location >> Luggage compartment lighting bulb (55) >> Location:

Luggage compartment lighting bulb (55): Location:

under the parcel shelf

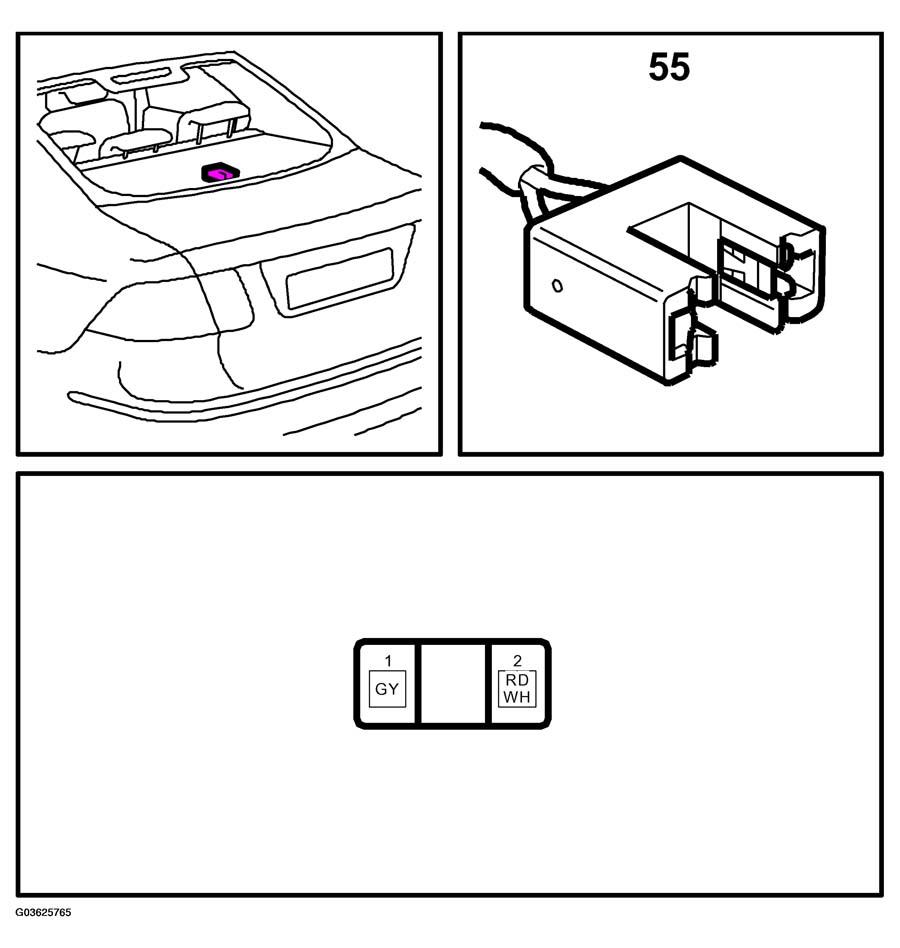

Fig 1: View Of Luggage Compartment Lighting Bulb Connector Pin-Outs

G03625765

Courtesy of SAAB-SCANIA OF AMERICA, INC.
