Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Component Location >> Lamp, courtesy lighting, driver (209D) >> Location:

Lamp, courtesy lighting, driver (209D): Location:

in the door

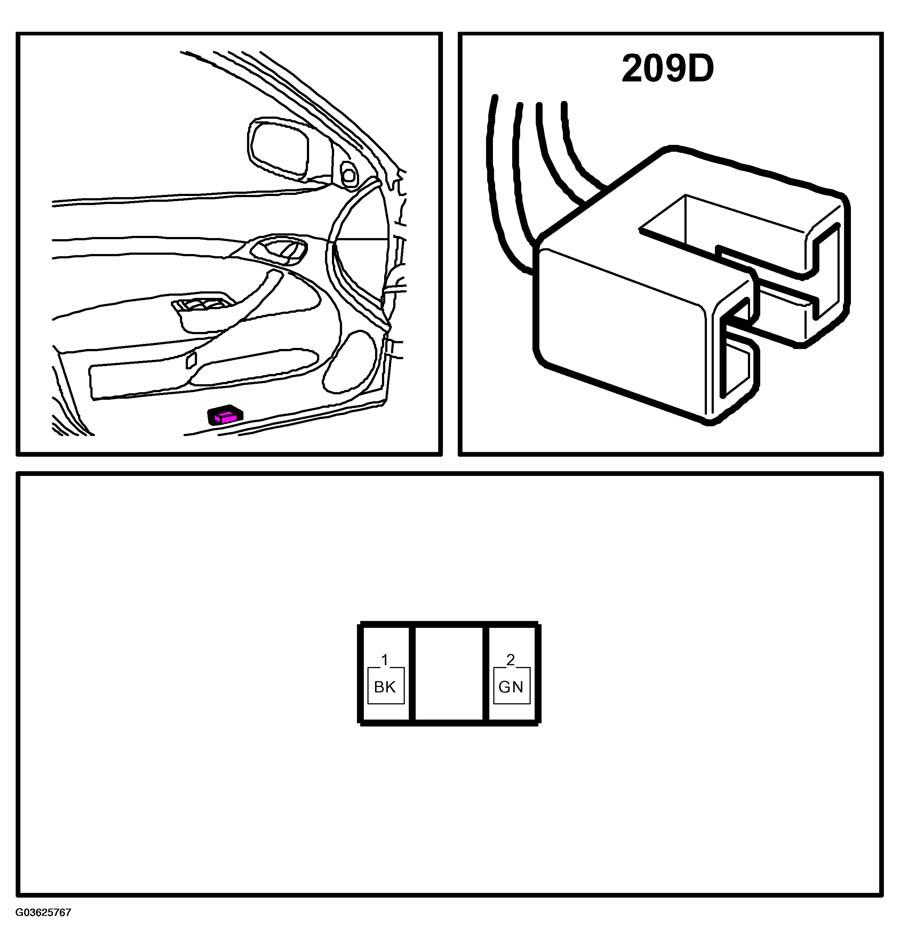

Fig 1: View Of Courtesy Lighting Lamp Connector Pin-Outs (Driver)

G03625767

Courtesy of SAAB-SCANIA OF AMERICA, INC.
