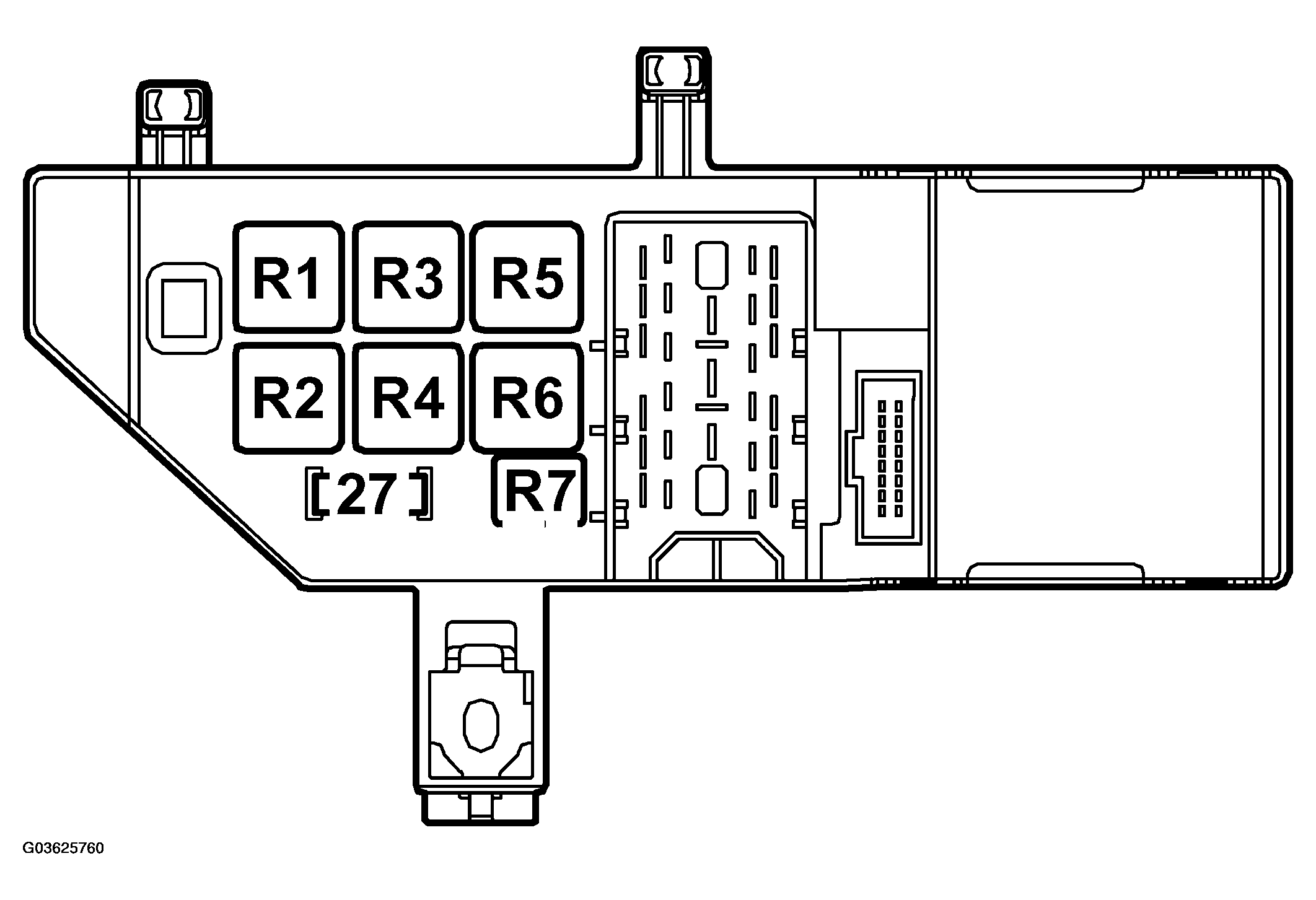

Instrument panel electrical centre 22 (IPEC): Relays
The electrical centre can be equipped with more relays than those that have a function according to the list below. They are not then generally connected to the car's wiring harness.
RELAY FUNCTION DESCRIPTION
| Location | No. | Designation |
|---|---|---|
| R1 | 21 | Relay, +54 |
| R2 | 757C | Relay, +15, IPEC |
| R3 | -- | |
| R4 | -- | |
| R5 | -- | |
| R6 | 756 | Relay, accessories |
| R7 | -- | |
| Soldered circuit board | 717 | Interior lighting relay |
