Connected components

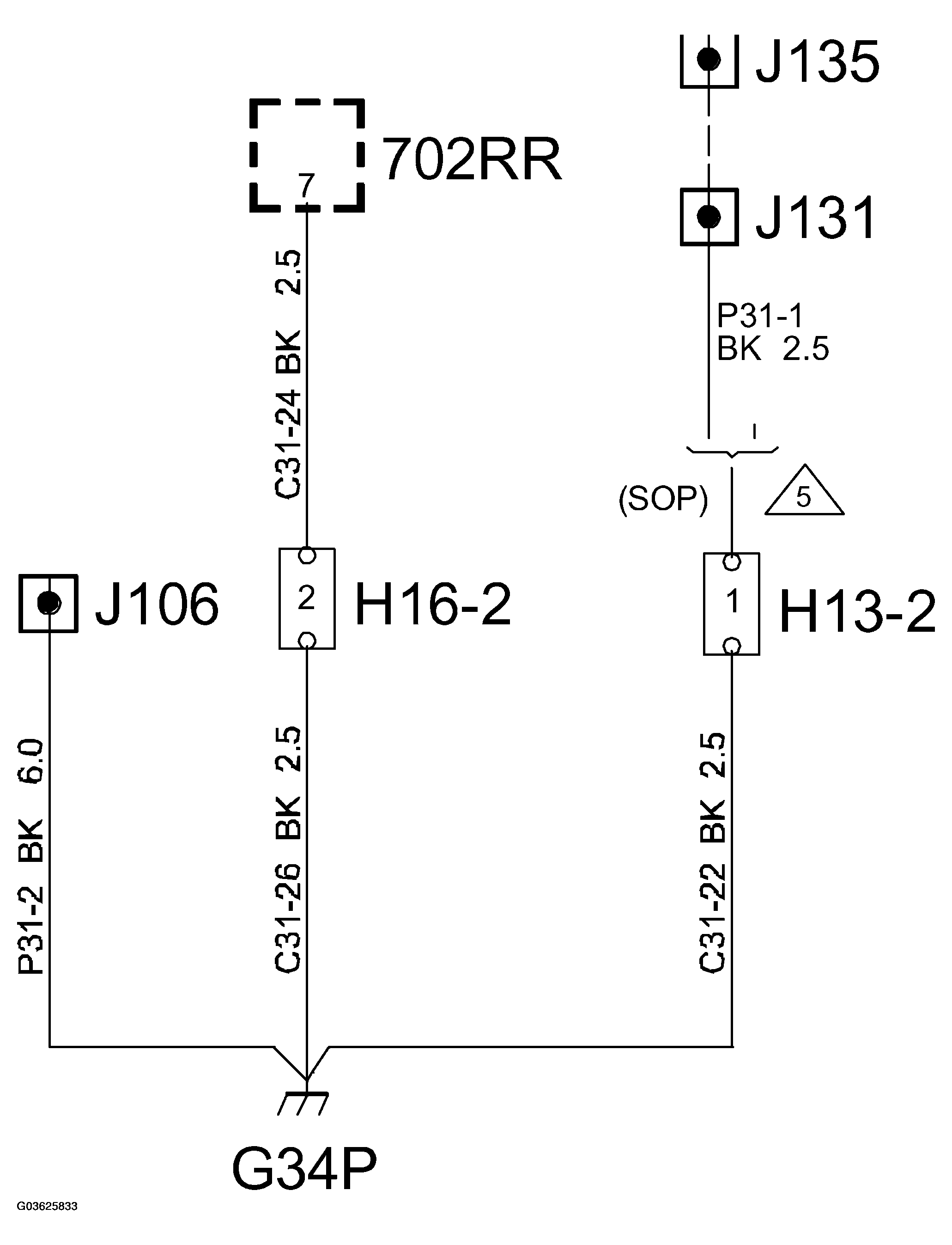

GROUNDING POINT COMPONENTS CONNECTION DESCRIPTION (G34P)
| 702RR | Rear right door control module |
| Via Crimp connection J106, main wiring harness | |
| 64FR | Heating pad, seat, right |
| 357 | Switches, left electrically adjustable seat |
| 357Dk (RHD) | Control module, driver's seat |
| Via CRIMP CONNECTION J131, OUTER DOOR WIRING HARNESS | |
| 207 | Heating element, right-hand door mirror |
| 702F | Control module, front right door |
| Via Crimp J135, door wiring harness, inner which is in contact with crimp J131 to Rev.4 inclusive | |
| 209F | Lamp, front right door courtesy lighting |
| 388 | Switch, boot lid (RHD) |
| 514FR | Switch, simultaneous central locking, front right door |
