Connected components

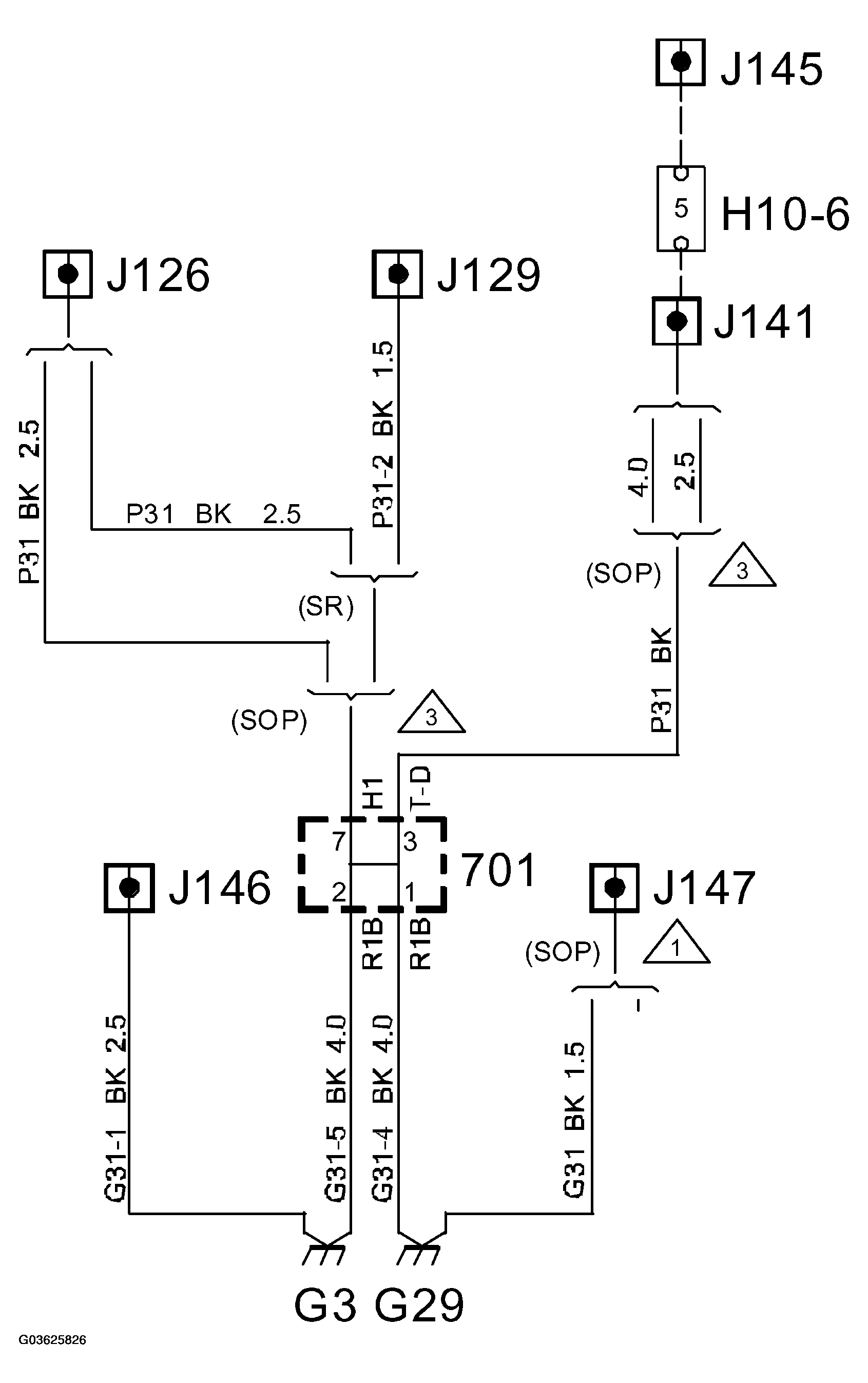

GROUNDING POINT COMPONENTS CONNECTION DESCRIPTION (G3)
| 701 | Electrical centre, luggage compartment, |
| 757R | Relay, +15, REC |
| Via Crimp connection J146, rear harness | |
| 275 | Anti-theft alarm siren |
| 630 | Saab Parking Assistance Control Module |
| 649 | Rain sensor |
| 701 | Electrical centre, luggage compartment, |
| Via CRIMP CONNECTION J126, ROOF WIRING HARNESS which is connected with crimp connection J146 via the rear electrical centre For cars without sunroof up to and including Rev.2 |
|
| 30RC | High-level brake light bulb |
| 182 | Sun Roof Module |
| 359LH | Left vanity mirror lighting, bulb |
| 359RH | Right vanity mirror lighting, bulb |
| 685F | Front dome light unit |
| 685R | Rear dome light unit |
| 681 | Interior rear-view mirror |
| Via CRIMP CONNECTION J129, ROOF WIRING HARNESS which is connected with crimp connection J146 via the rear electrical centre For cars without sunroof from and including Rev.3 |
|
| 30RC | High-level brake light bulb |
| 182 | Sun Roof Module |
| 359LH | Left vanity mirror lighting, bulb |
| 359RH | Right vanity mirror lighting, bulb |
| 685F | Front dome light unit |
| 685R | Rear dome light unit |
| 681 | Interior rear-view mirror |
| Via CRIMP CONNECTION J141, PARCEL SHELF HARNESS SOP up to Rev.2 | |
| 55 | Luggage compartment lighting, bulb |
| 468 | Positioning unit |
| From Rev.3 additional | |
| 741LH | Rear left seat backrest microswitch |
| 741RH | Rear right seat backrest microswitch |
| Via Crimp connection J142, parcel shelf harness that is connected with crimp connection J141 SOP up to Rev.2 | |
| 741LH | Rear left seat backrest microswitch |
| 741RH | Rear right seat backrest microswitch |
| Via CRIMP CONNECTION J145 BOOT LID HARNESS which in turn is connected with crimp connection J141 | |
| 54H | Boot lid switch |
| 418HL | Unit, light cluster, boot lid, left |
| 418HR | Unit, light cluster, boot lid, right |
| 622 | Microswitch, luggage compartment lock |
