Grounding point G29: Location:

In the luggage compartment below the left-hand light cluster

The grounding point is connected via the REC (701) to GROUNDING POINT G3

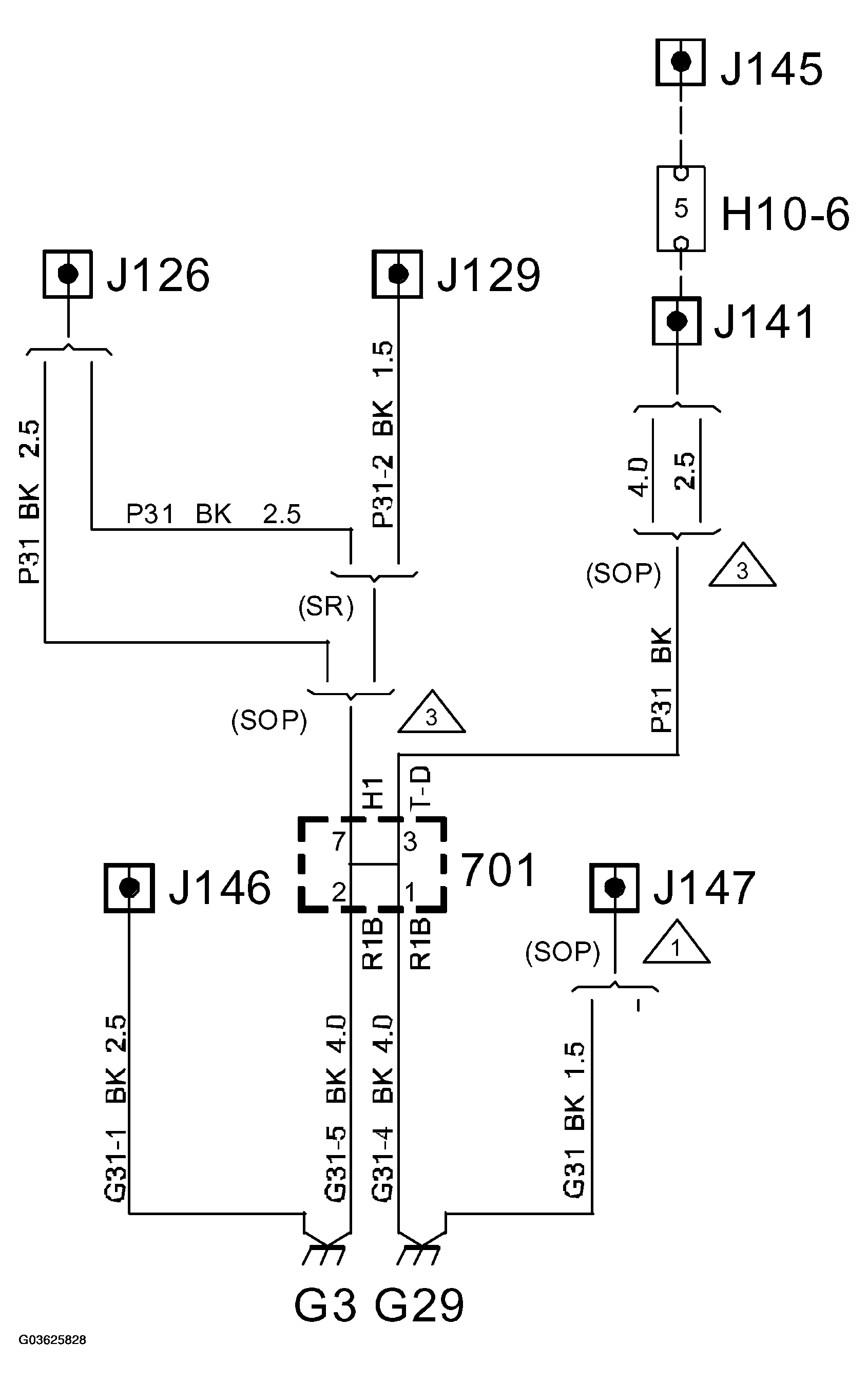

Fig 1: Grounding Point Connection Diagram (G29)
G03625828Courtesy of SAAB-SCANIA OF AMERICA, INC.
