Crimp connection J98, main harness: Location:

Approximately 160 mm from grounding point G33P/S branching point towards the left rear door

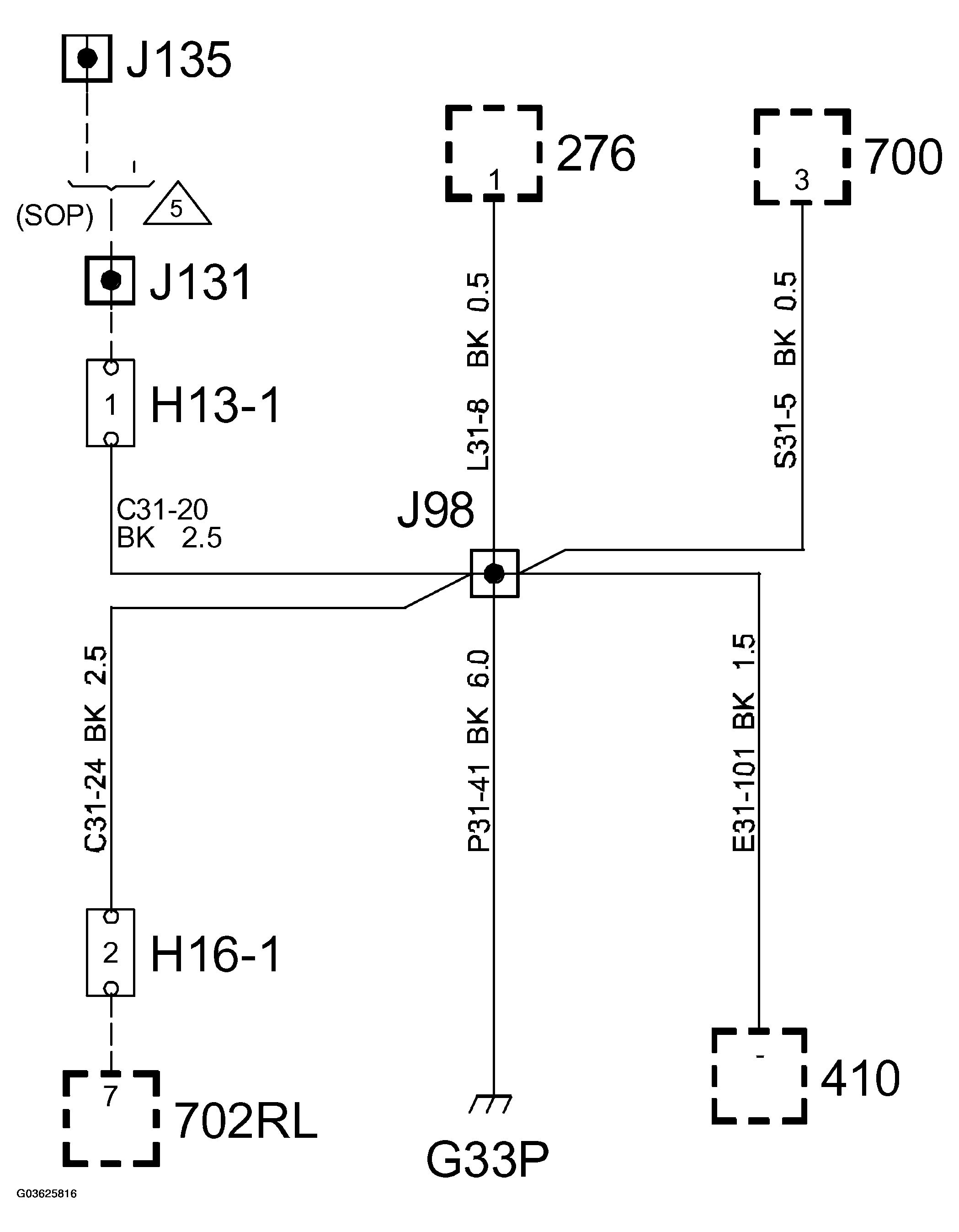

Fig 1: Main Wiring Harness Crimp Connection Diagram (J98)
G03625816Courtesy of SAAB-SCANIA OF AMERICA, INC.
