Crimp connection J96, main wiring harness: Notes

Location:  Approx. 160 mm from branching point to LH front door towards connector H102-1

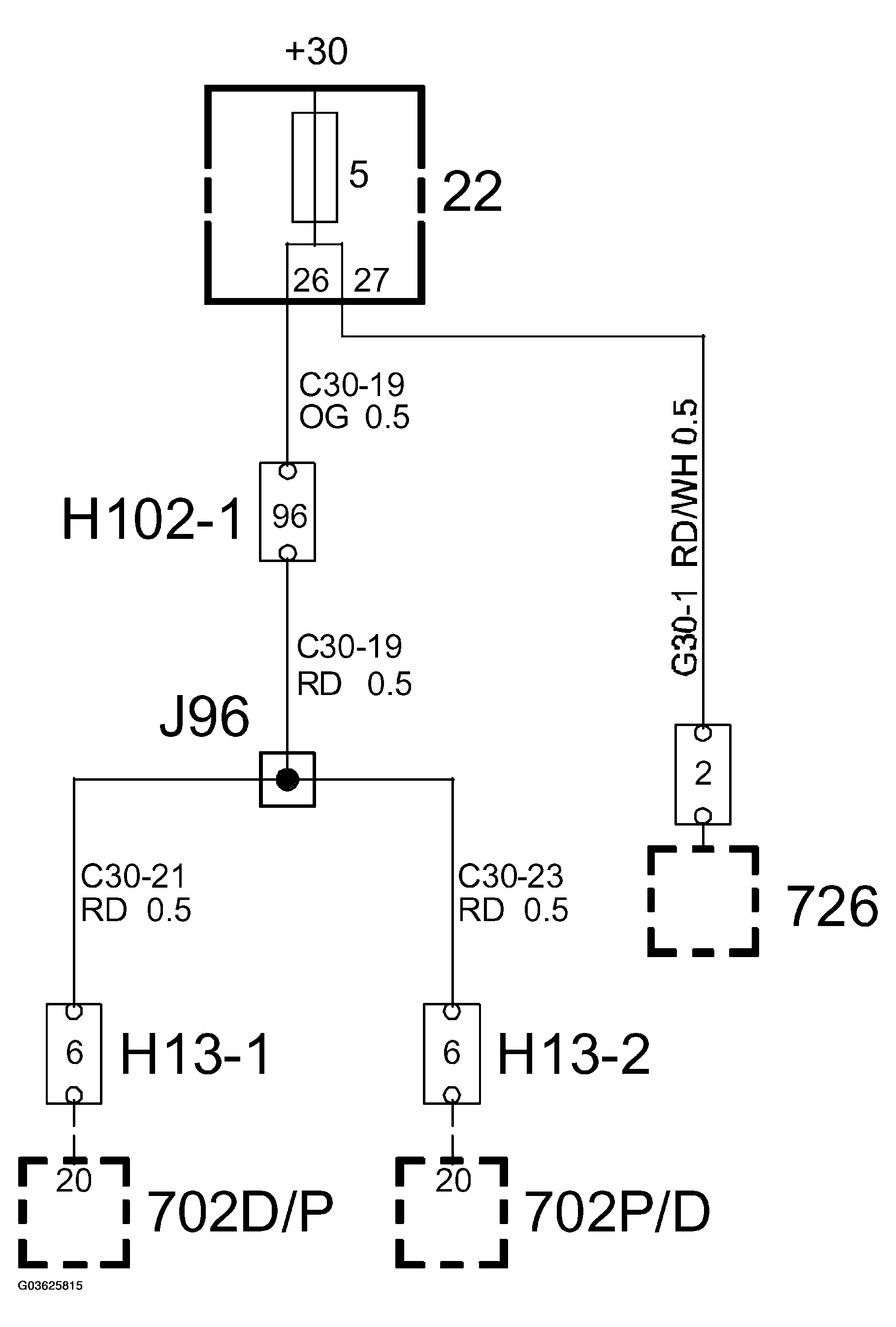

Fig 1: Main Wiring Harness Crimp Connection Diagram (J96)
G03625815Courtesy of SAAB-SCANIA OF AMERICA, INC.
