Crimp connection J79, dashboard harness: Location:

LHD:  Approximately 100 mm from the cigarette lighter branching point towards the cigarette lighter

RHD:  Approximately 110 mm from the BCM

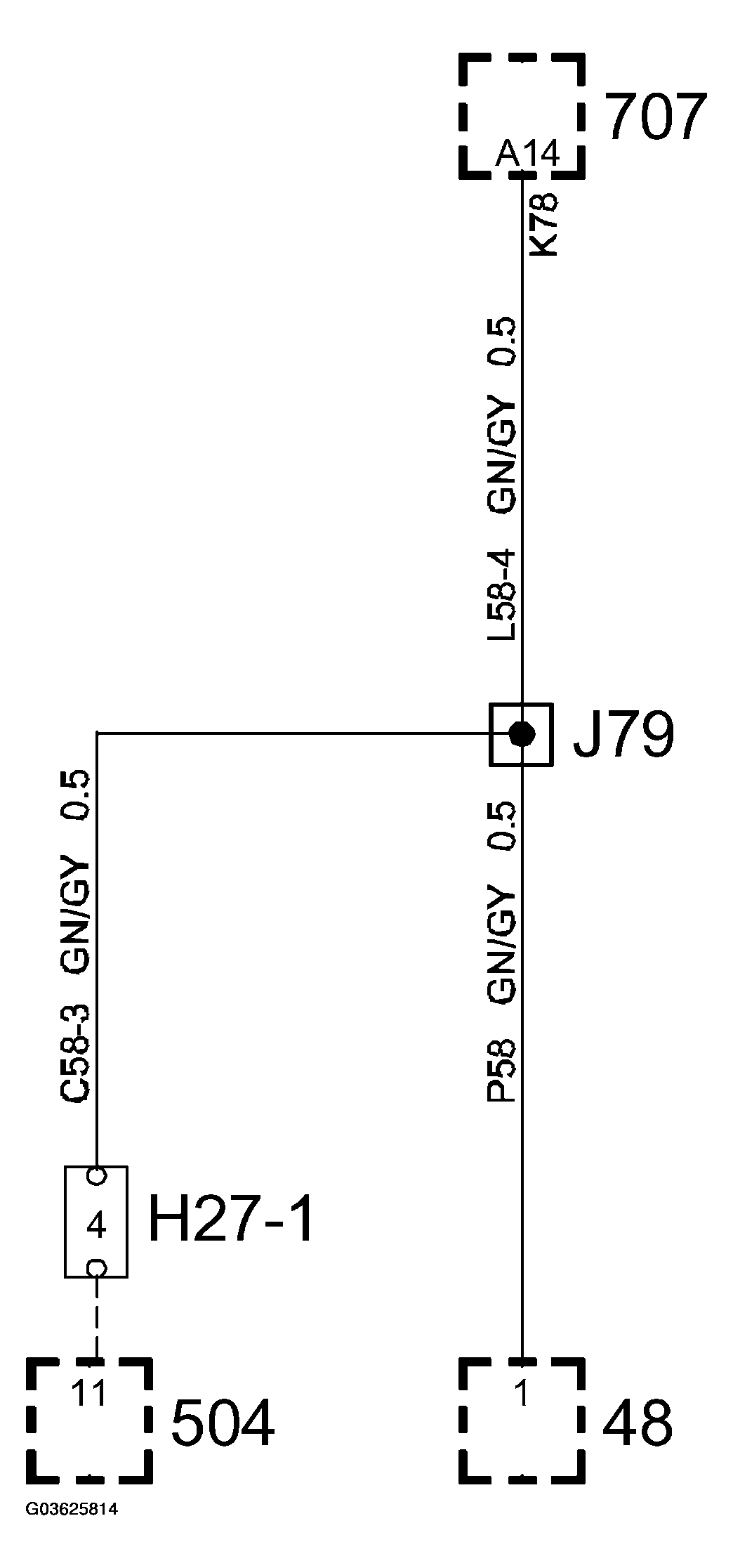

Fig 1: Dashboard Harness Crimp Connection Diagram (J79)
G03625814Courtesy of SAAB-SCANIA OF AMERICA, INC.
