Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Component Location >> Crimp connection J68, instrument harness >> Location:

Crimp connection J68, instrument harness: Location:

LHD:  Approx. 260 mm from light switch unit to column integration module

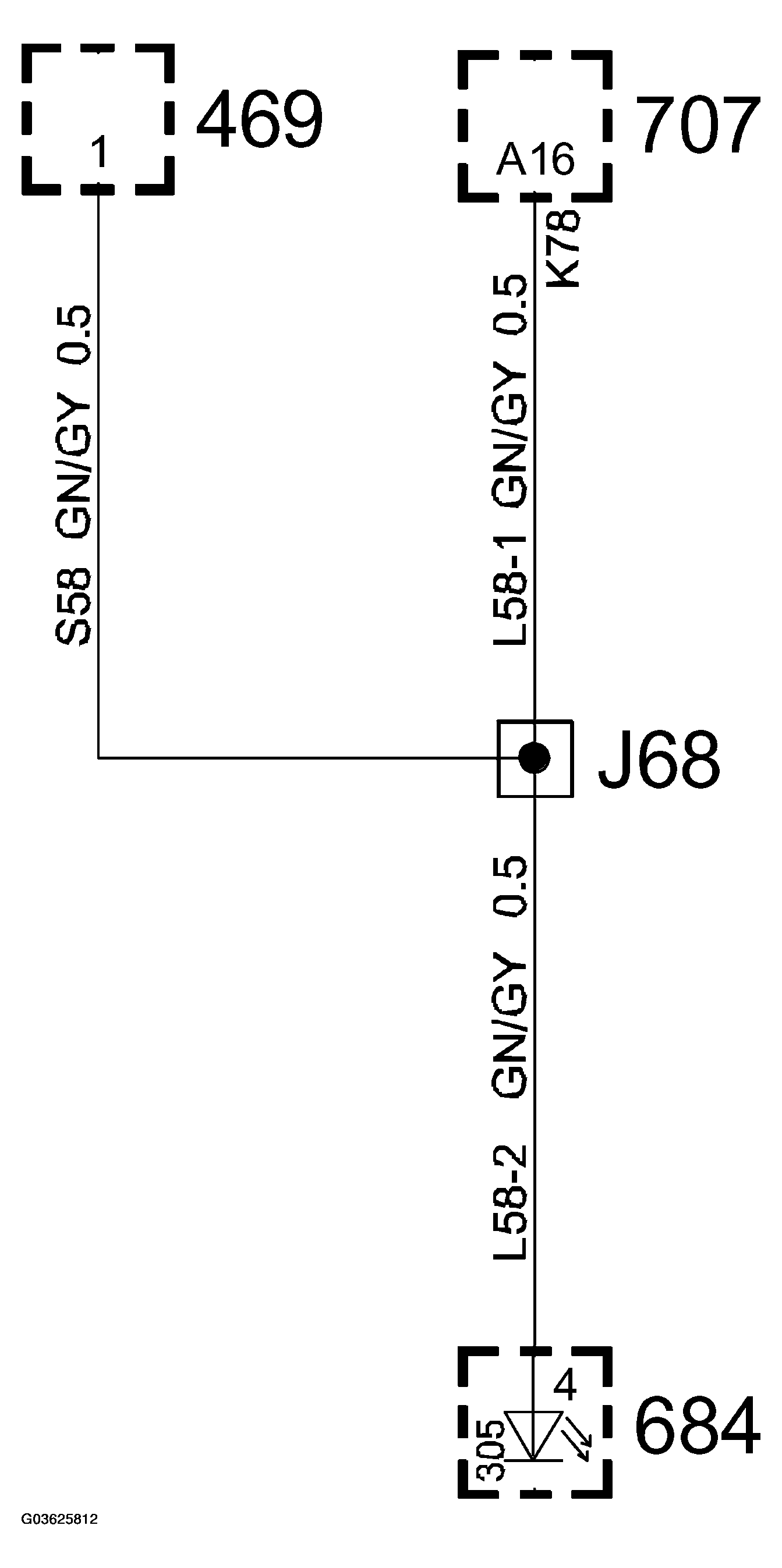

Fig 1: Instrument Harness Crimp Connection Diagram (J68)
G03625812Courtesy of SAAB-SCANIA OF AMERICA, INC.
