Crimp connection J145 Boot lid harness: Location

Approx. 80 mm from the branching point of the right tail light towards left tail light

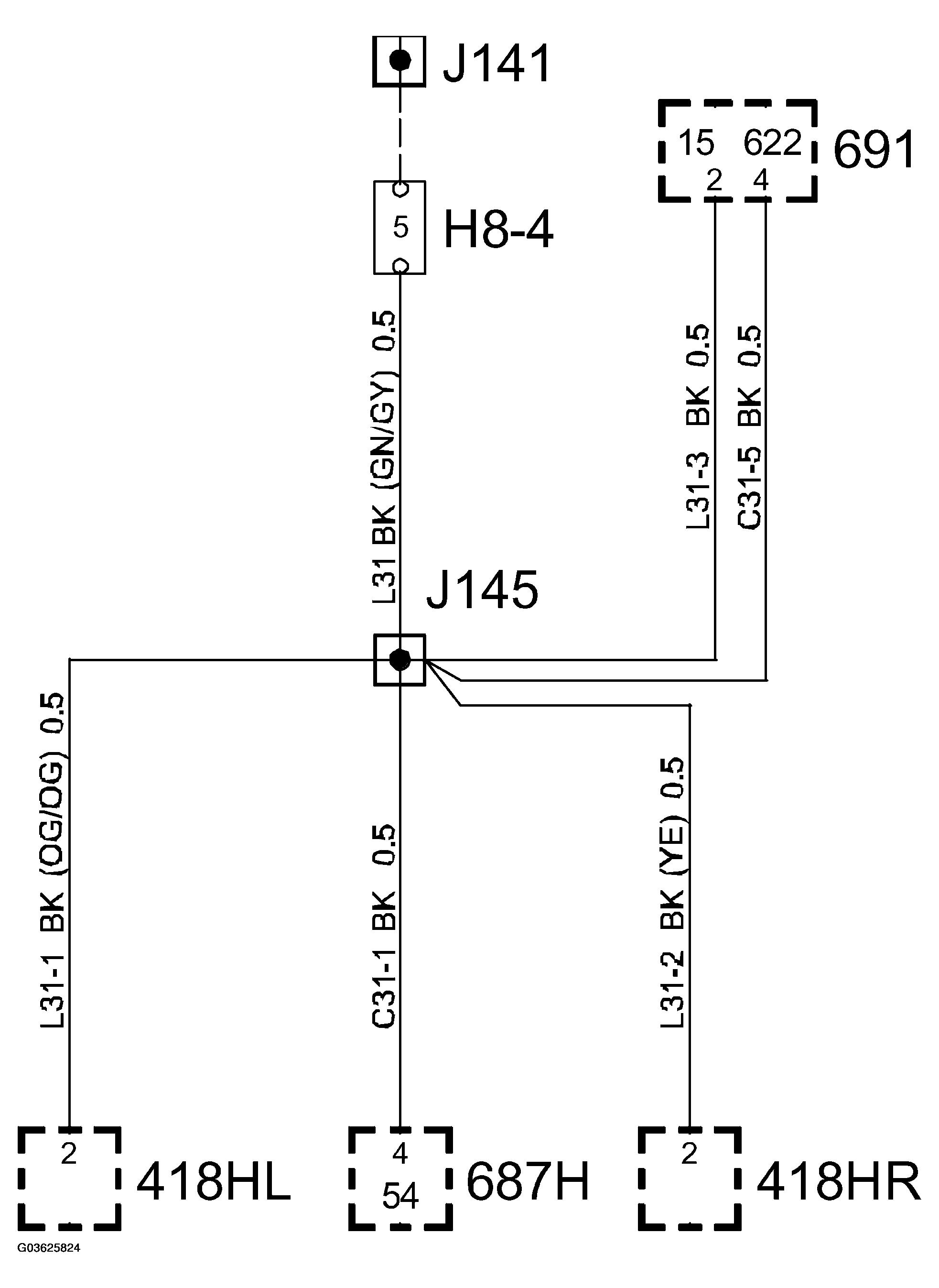

Fig 1: Boot Lid Harness Crimp Connection Diagram (J145)
G03625824Courtesy of SAAB-SCANIA OF AMERICA, INC.
