Crimp connection J141, parcel shelf harness: Location:

Approx. 330 mm from the branching point of connector H10-6 towards the electrical centre

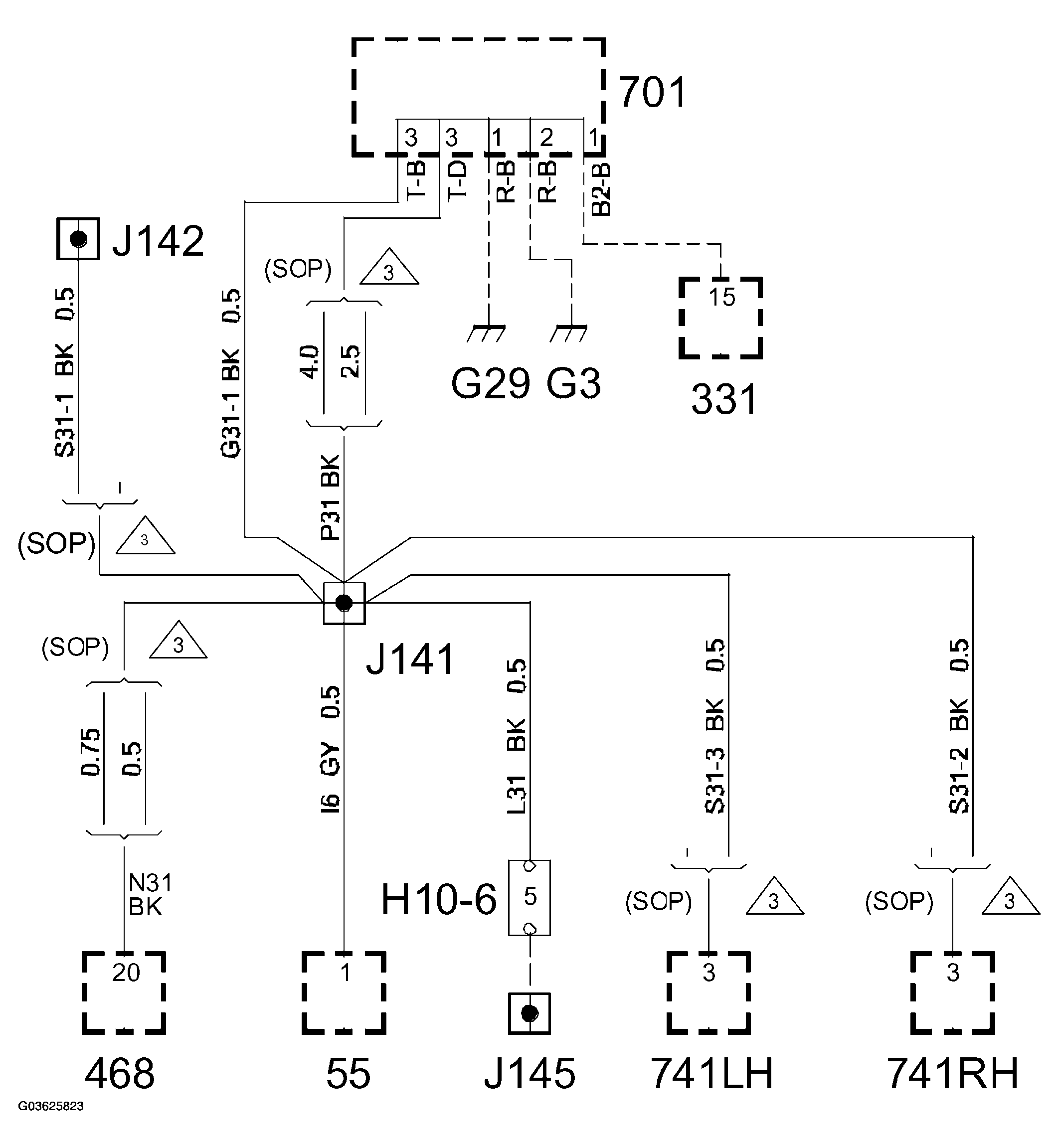

Fig 1: Parcel Shelf Harness Crimp Connection Diagram (J141)
G03625823Courtesy of SAAB-SCANIA OF AMERICA, INC.
