Crimp connection J129, roof wiring harness: Location

SOP: --

Rev.3:  Approx. 40 mm from branching point left-hand vanity lamp to rear electrical centre

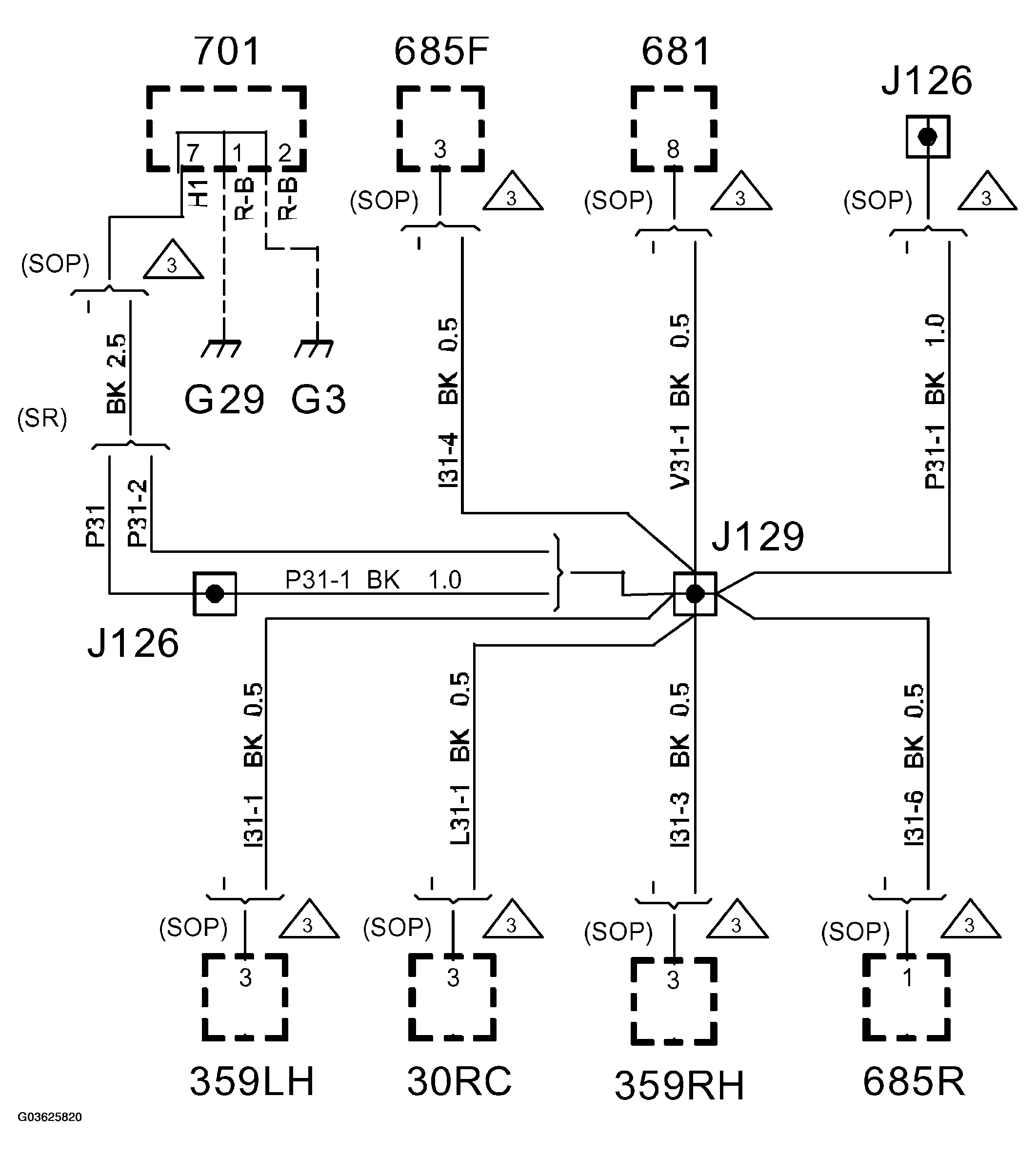

Fig 1: Roof Wiring Harness Crimp Connection Diagram (J129)
G03625820Courtesy of SAAB-SCANIA OF AMERICA, INC.
