Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Component Location >> Control panel, manual climate control (504) >> Location:

Control panel, manual climate control (504): Location:

in the centre of the panel

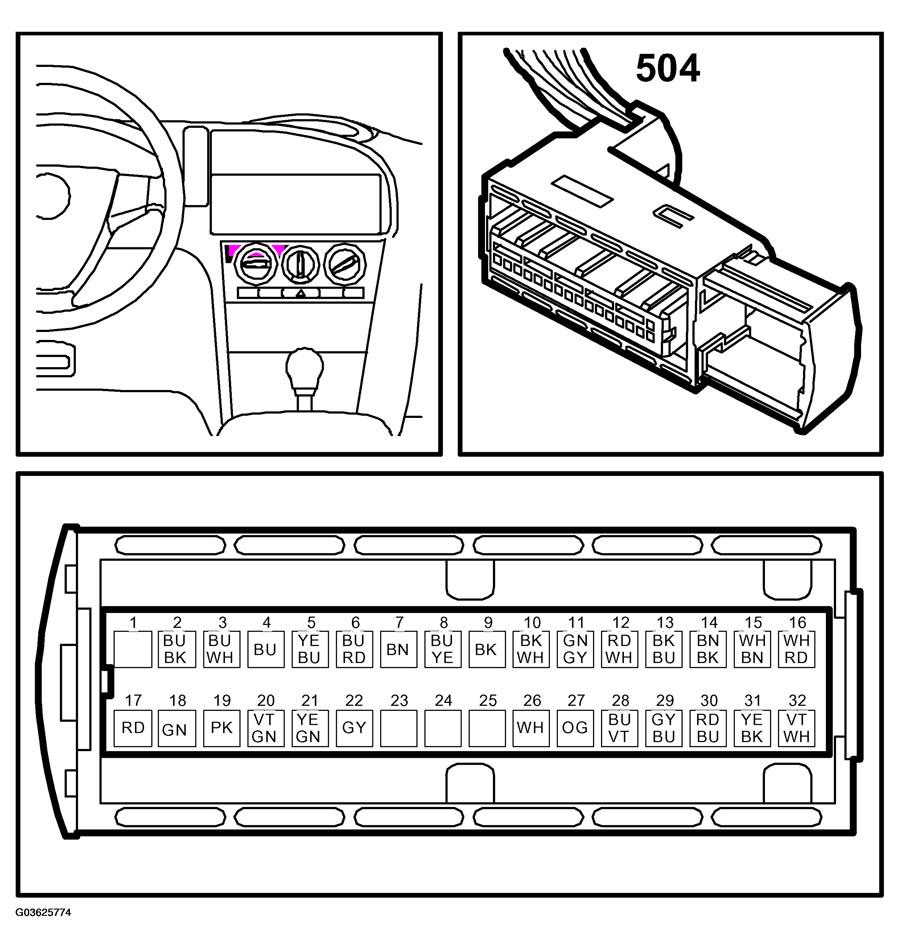

Fig 1: View Of Manual Climate Control Control Panel Connector Pin-Outs

G03625774

Courtesy of SAAB-SCANIA OF AMERICA, INC.
