Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Component Location >> Body Control Module (707) >> Location:

Body Control Module (707): Location:

in the dashboard electrical distribution unit

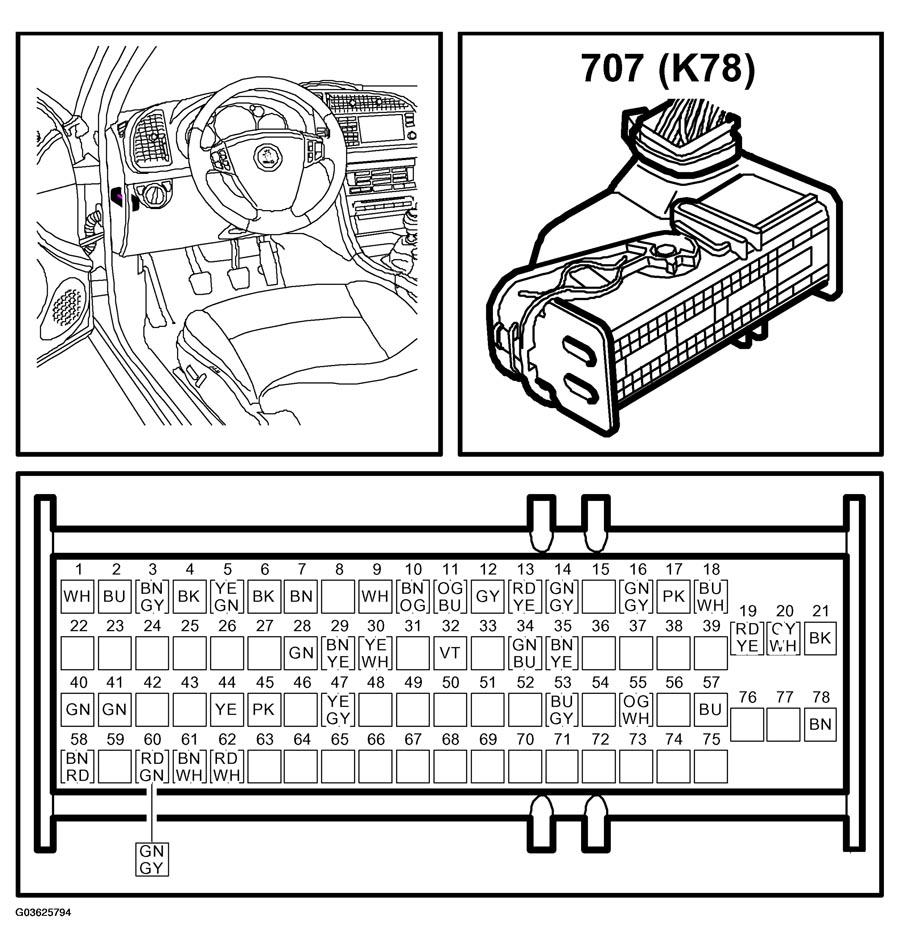

Fig 1: View Of Body Control Module Connector Pin-Outs

G03625794

Courtesy of SAAB-SCANIA OF AMERICA, INC.
