To fit

  1. Fit the steering wheel onto the steering shaft.
    NOTE: Make sure the steering wheel fits the key on the steering shaft.
  2. Apply 74 96 268 Thread locking adhesive and fit the centre bolt.

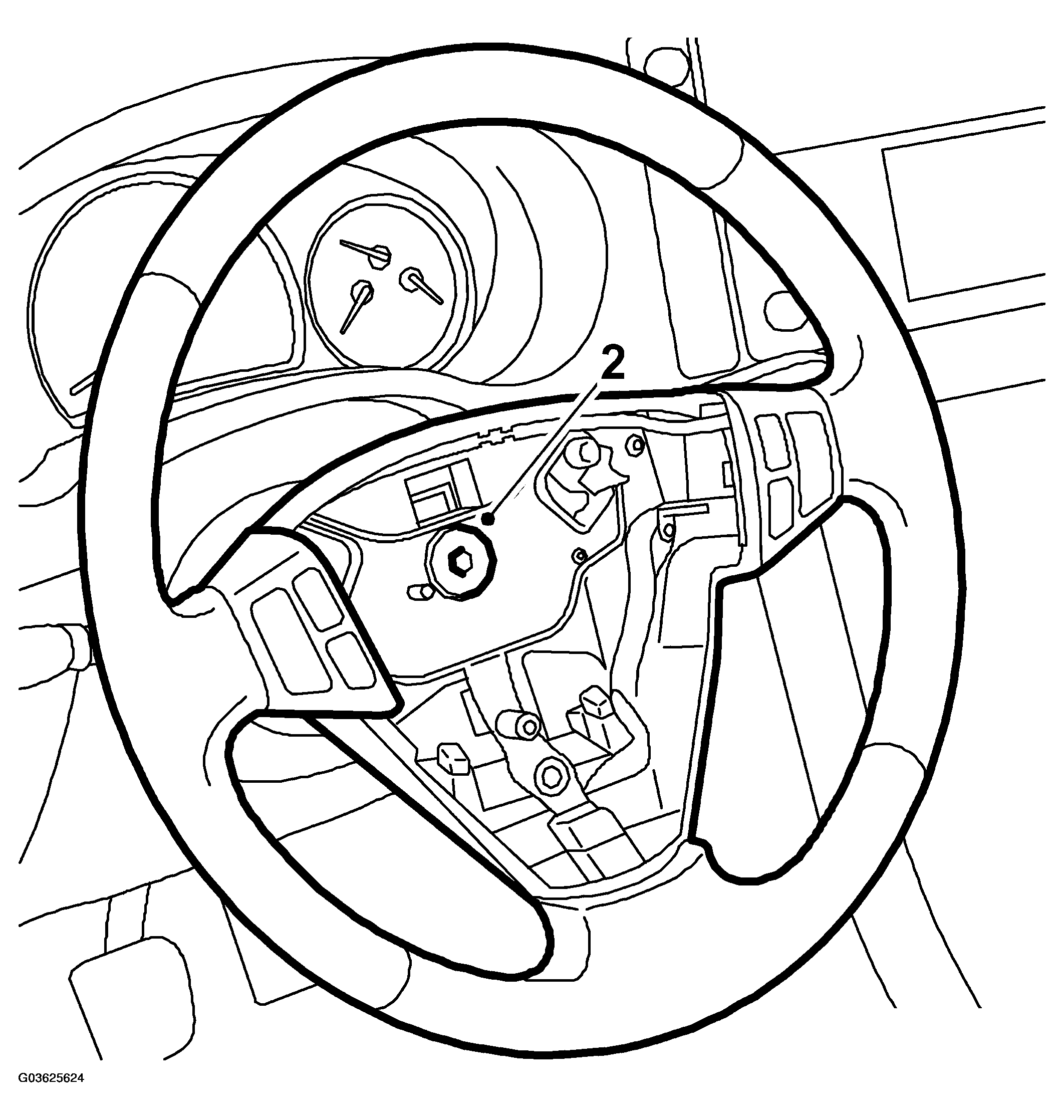

    Fig 1: Illustration For Step 2
    G03625624Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Tightening torque 50 Nm (37 lbf ft)

  3. Fit the airbag.
