To remove

  1. Move the seat to its rearmost position.
  2. Remove the forward side panel from the floor console.

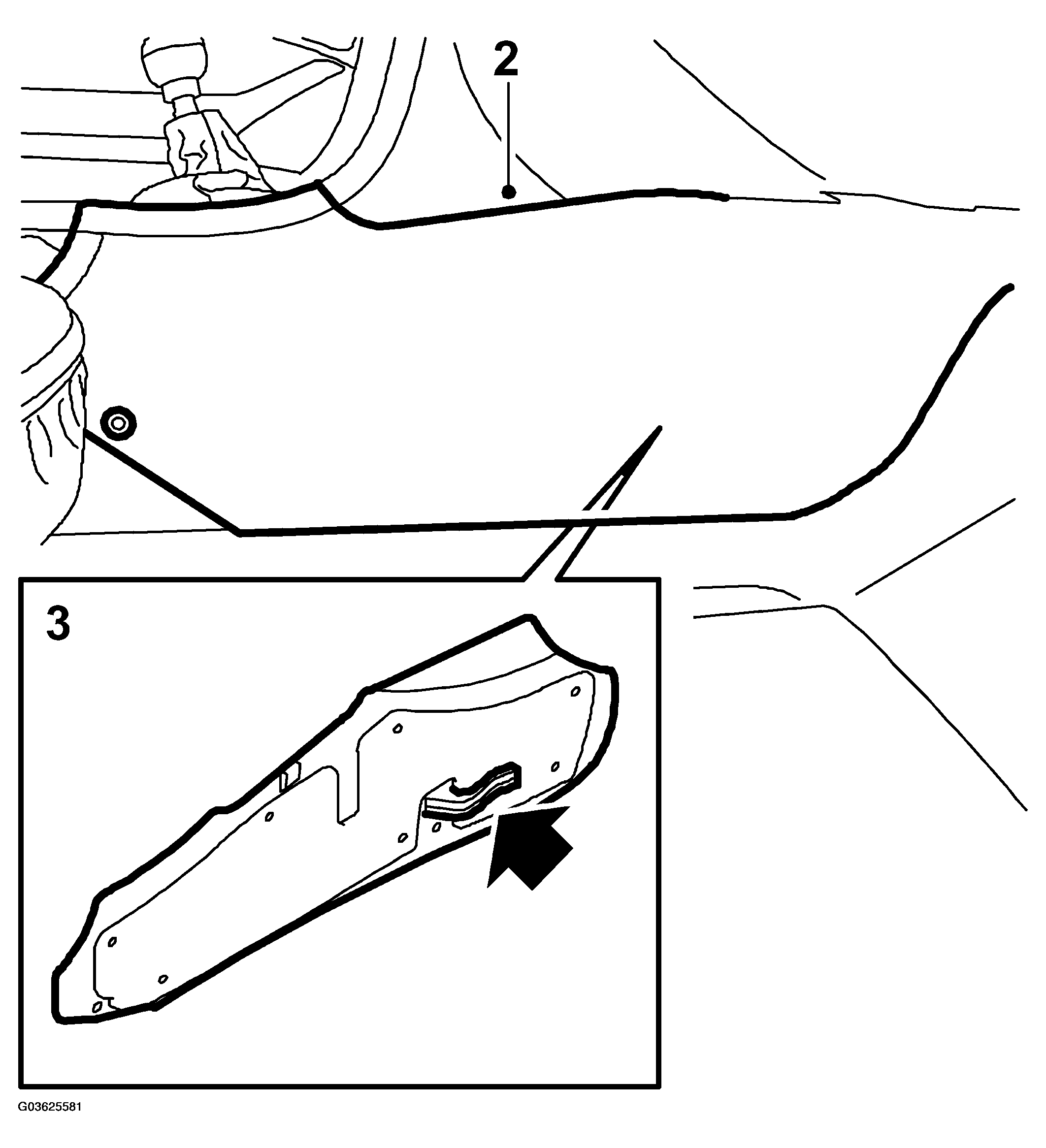

    Fig 1: Illustration For Steps 2-3
    G03625581Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the side panel by manoeuvring it backwards and downwards.
  4. Remove the screws fixing the sound insulation panel to the fan housing and a further screw which is fitted from the side into the heating and ventilation unit.

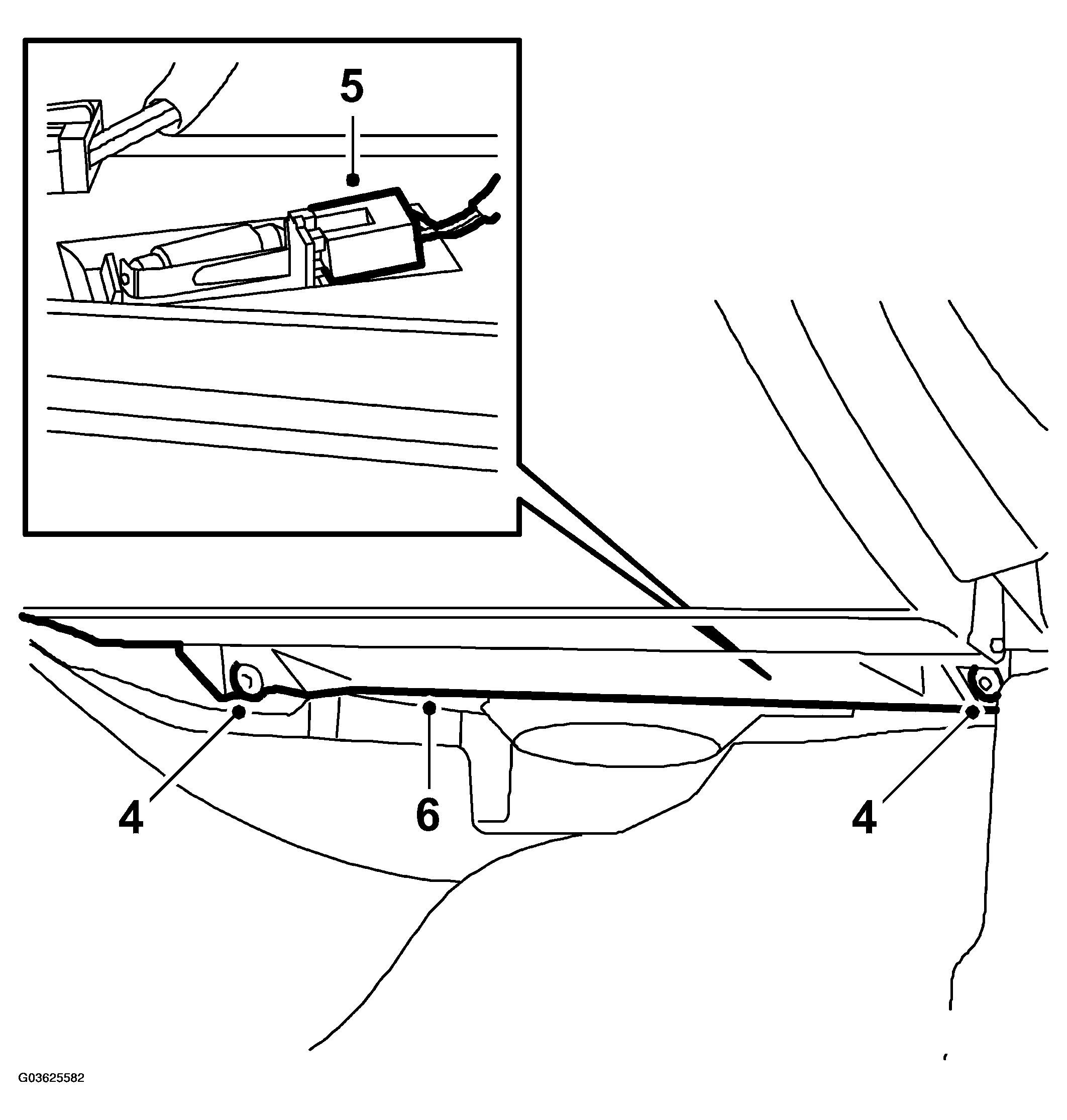

    Fig 2: Illustration For Steps 4-6
    G03625582Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Unplug the floor illumination connector.
  6. Remove the panel downwards.
