To remove

  1. Remove the forward side panel from the centre console.

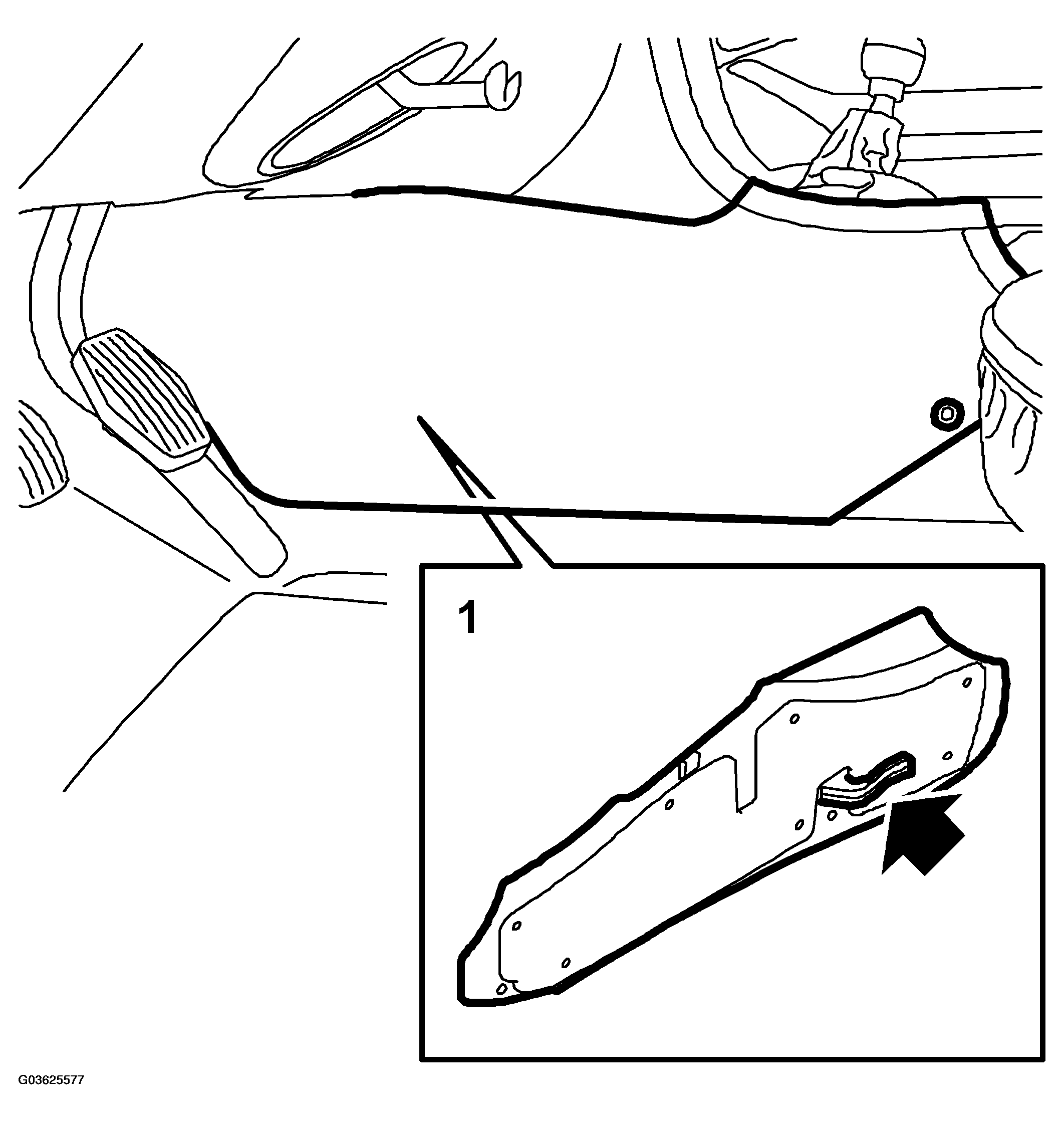

    Fig 1: Illustration For Step 1
    G03625577Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the diagnostic socket from the sound insulation panel.
  3. Remove the two screws fixing the sound insulation panel to the heating and ventilation unit and the dashboard.

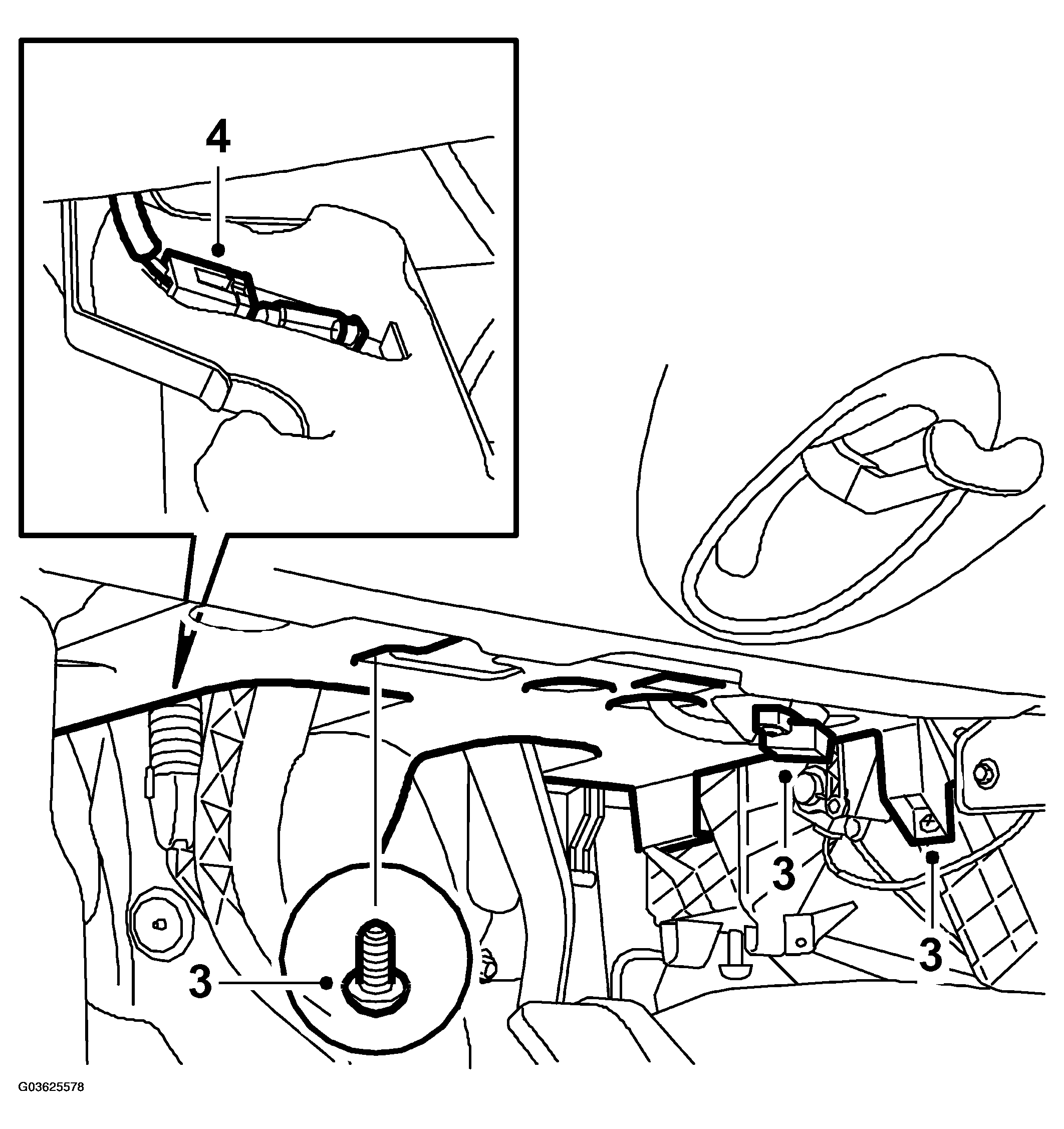

    Fig 2: Illustration For Steps 3-4
    G03625578Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Lower the sound insulation panel and disconnect the pedal illumination connector.
