To fit

  1. Reconnect the pedal illumination connector.

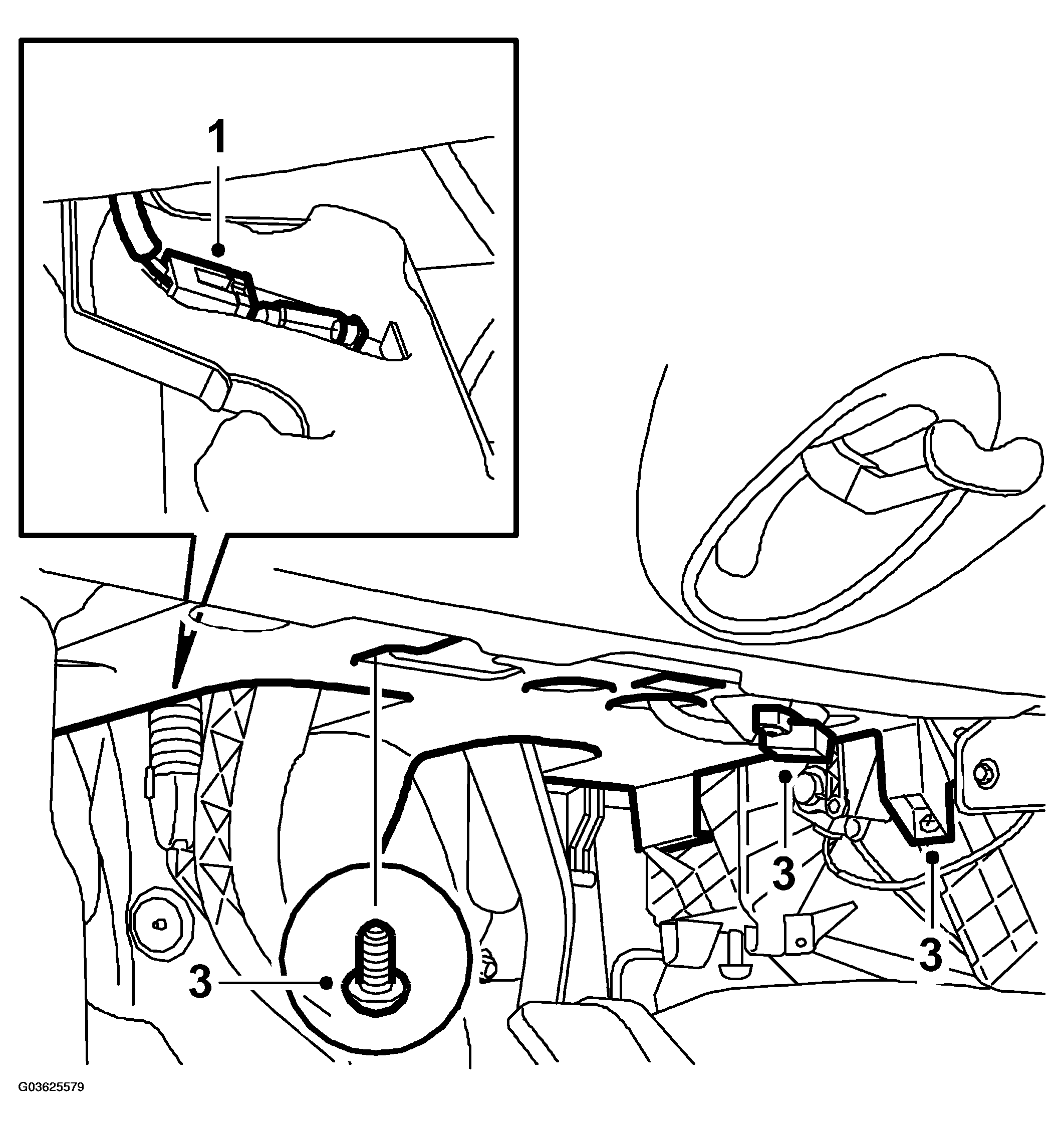

    Fig 1: Illustration For Steps 1, 3
    G03625579Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Manoeuvre the sound insulation panel up into position.
    NOTE: Ensure that the locating flange on the panel is correctly positioned in the locating lugs on the heating and ventilation unit.
  3. Refit the two screws fixing the sound insulation panel to the heating unit and the dashboard.
  4. Refit the diagnostic socket to the sound insulation panel.
  5. Refit the forward side panel to the centre console.

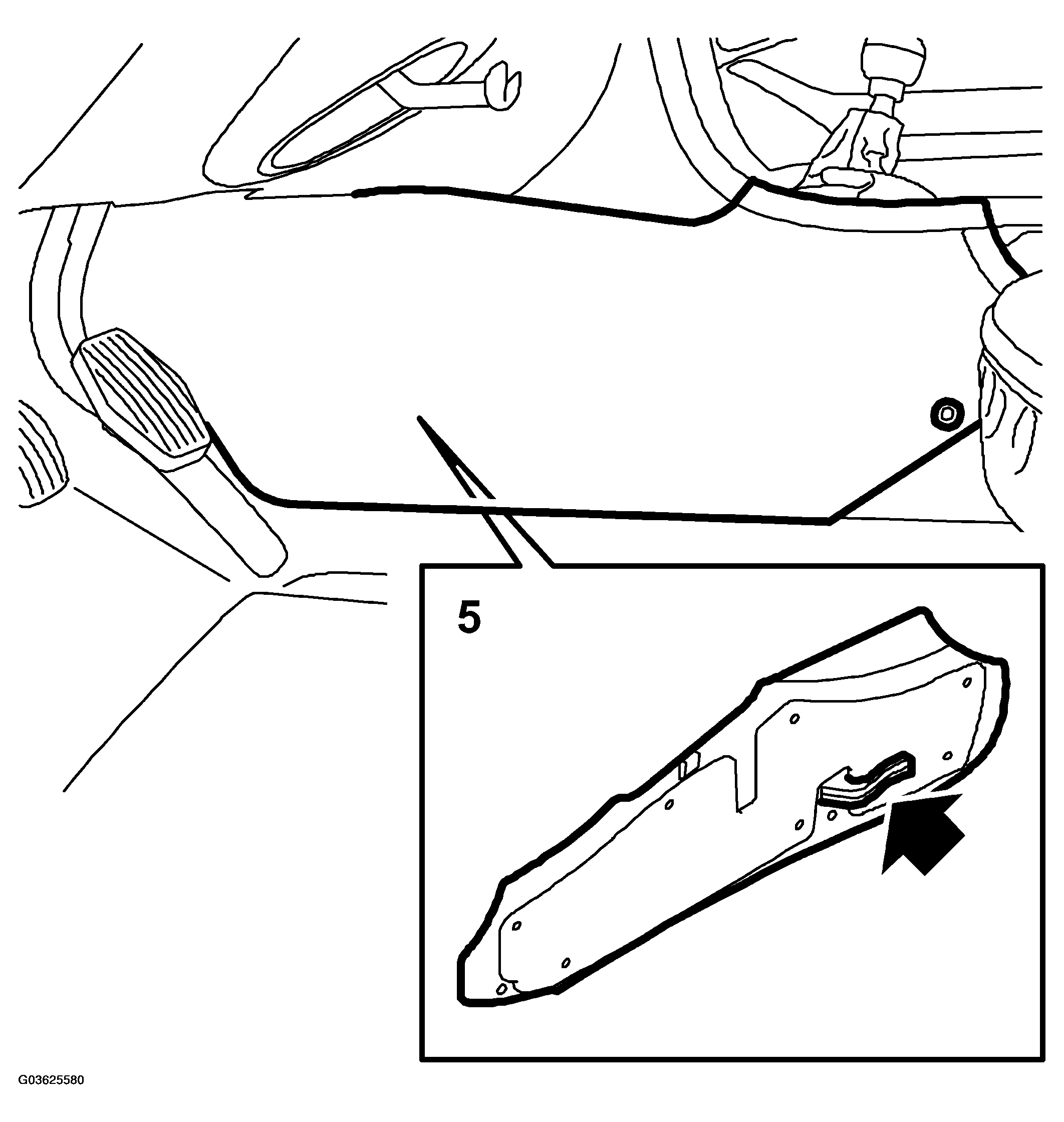

    Fig 2: Illustration For Step 5
    G03625580Courtesy of SAAB-SCANIA OF AMERICA, INC.
