To remove

  1. Fold down the rear seat back rests.
  2. Remove the clips securing the parcel shelf trim.

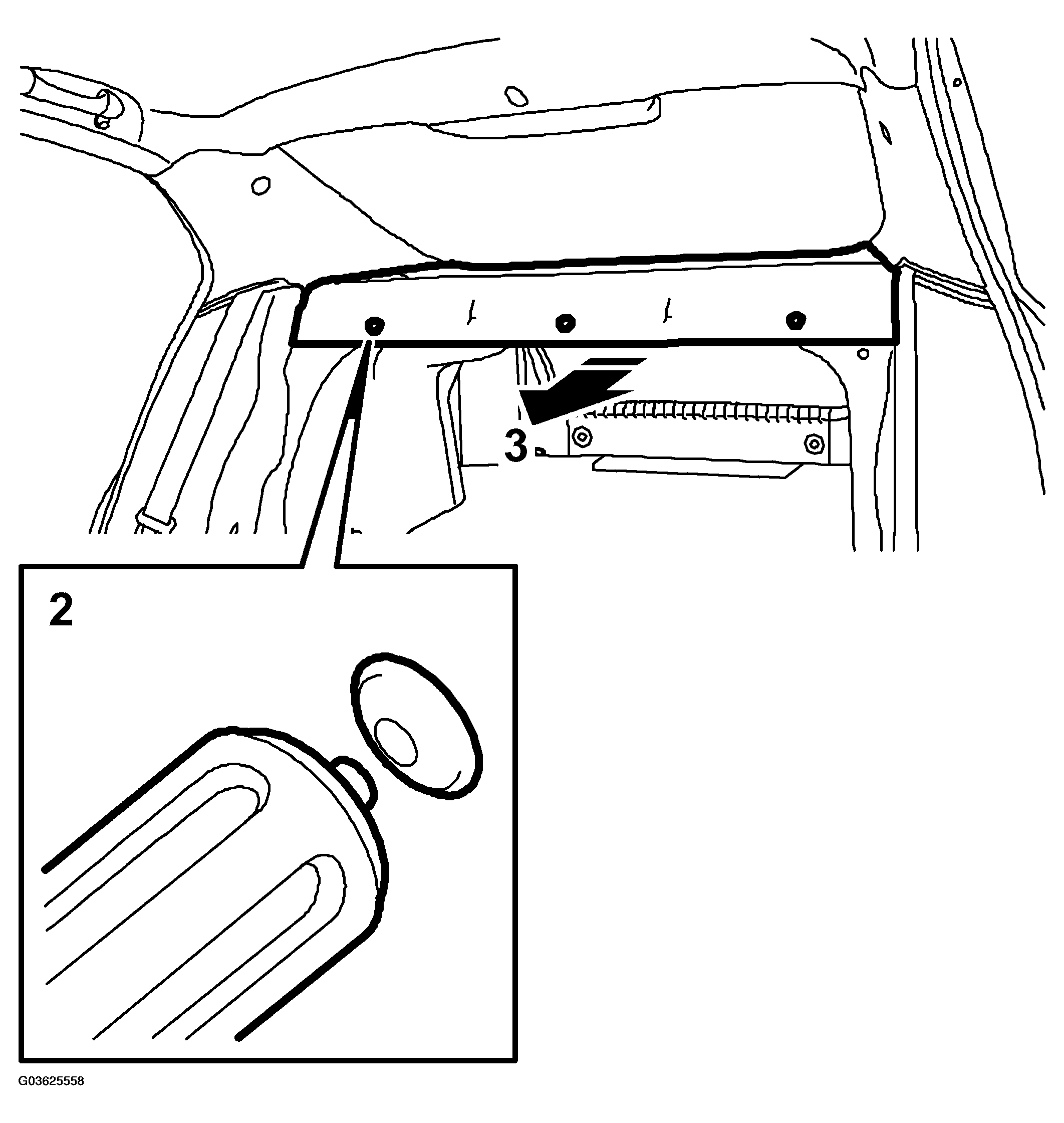

    Fig 1: Illustration For Steps 2-3
    G03625558Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Pull the parcel shelf trim straight out forwards.
